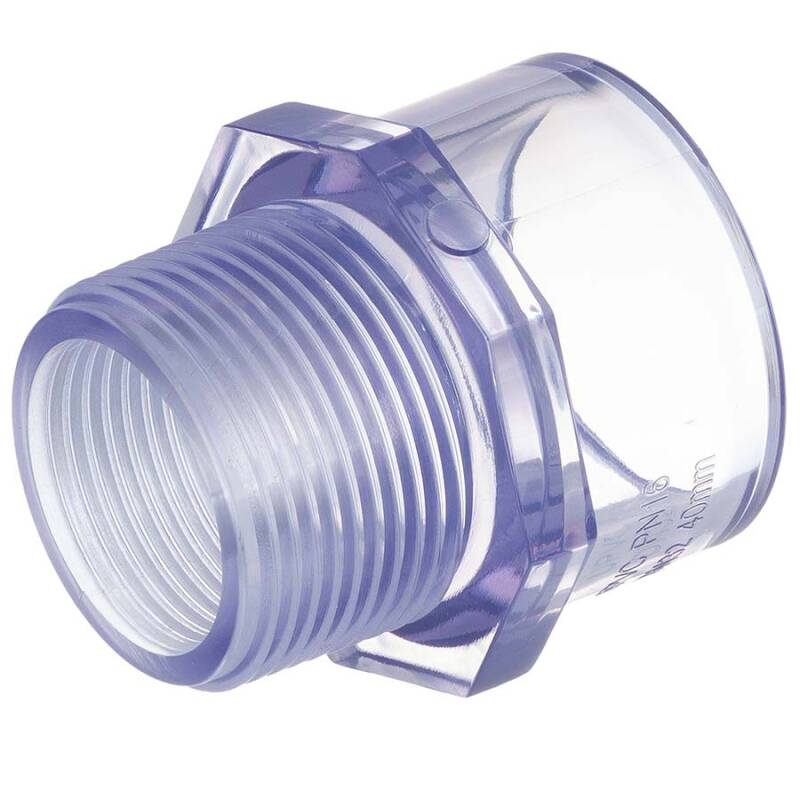

U-PVC trasparent adapter solvent socket x male thread

SKU: AT0302
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent
from
0,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
DN
G
L
L1
L2
Price
Quantity
AT0302.020.020
20mm x 1/2"
20
27,5
13
1/2" (20,96mm)
42,5
19
15,5
0,67 €*
AT0302.025.025
25mm x 3/4"
25
32
19
3/4" (26,44mm)
46
18
19
0,98 €*
pc:
AT0302.032.032
32mm x 1"
32
40
24
1" (33,25mm)
52,5
21
23
1,95 €*
pc:
AT0302.040.040
40mm x 1 1/4"
40
50
30,5
1 1/4" (41,91mm)
59
25
26
2,63 €*
pc:
AT0302.050.050
50mm x 1 1/2"
50
60,5
37
1 1/2" (47,81mm)
66
26,5
32
4,27 €*
pc:
AT0302.063.063
63mm x 2"
63
76
47
2" (59,61mm)
74
27,5
38
7,04 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Übergangsnippel Transparent, Klebemuffe x Aussengewinde

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
Klebemuffe x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Transparent Bläulich
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
