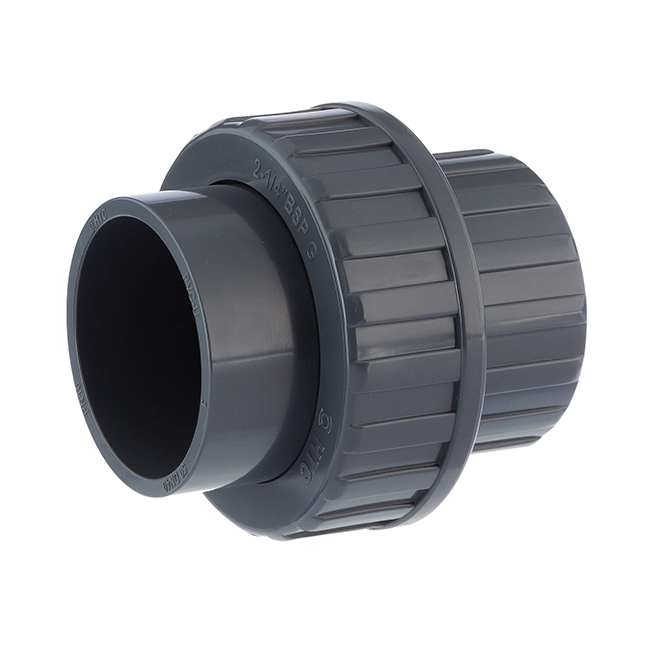

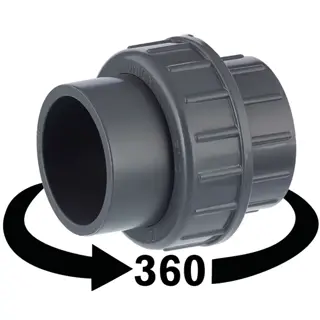

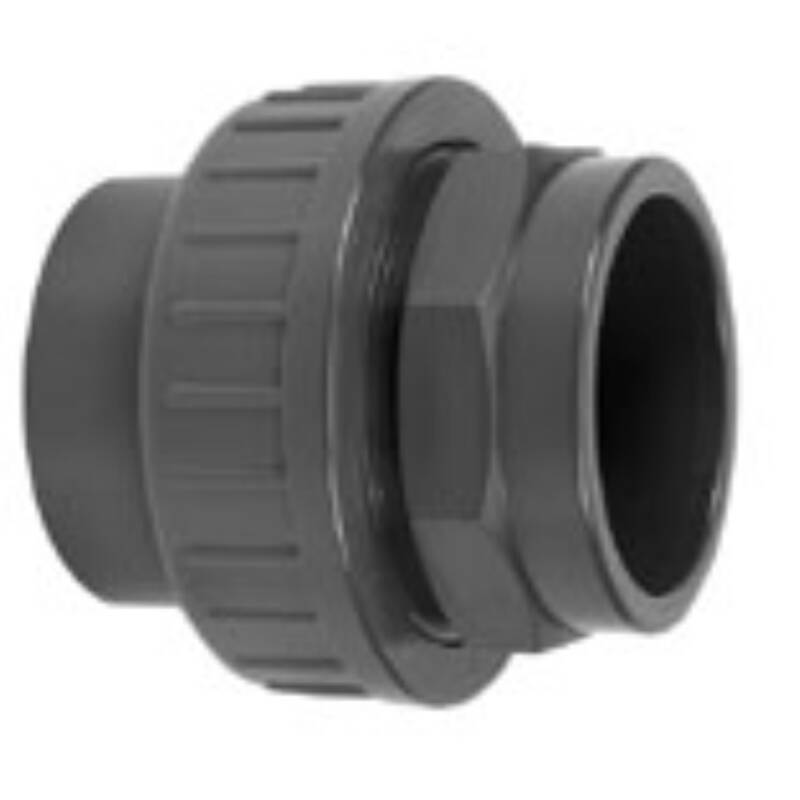

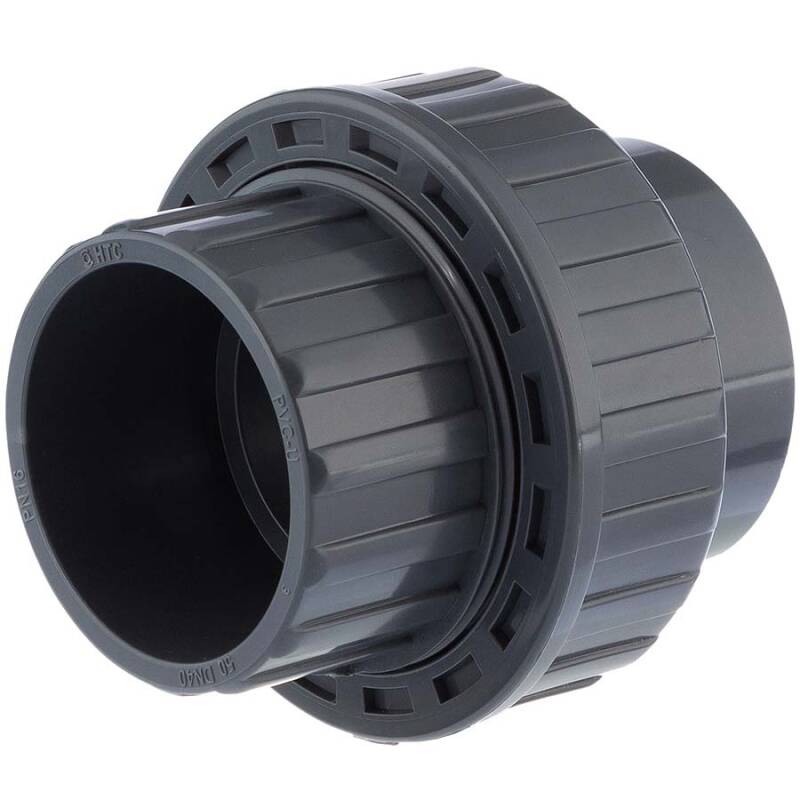

U-PVC solvent union

SKU: AF0601
Auswahl Steuerzone / Lieferland
Choose the variation
Industrie
from
1,00 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
D
DN
F
G
Price
Quantity
AF0601.000.012
12mm
46
32
12
9
12
---
3,86 €*
pc.:
AF0601.025.016
16mm
42
35
16
10
14
3/4" (26,44mm)
1,00 €*
pc:
AF0601.032.020
20mm
46
43
20
15
16
1" (33,25mm)
1,05 €*
pc:
AF0601.040.025
25mm
58
53
25
20
19
1 1/4" (41,91mm)
1,17 €*
pc:
AF0601.050.032
32mm
62,5
60
32
25
23
1 1/2" (47,81mm)
1,73 €*
pc:
AF0601.063.040
40mm
75
72
40
32
26,5
2" (59,61mm)
2,25 €*
pc:
AF0601.068.050
50mm
84,5
85
50
40
32
2 1/4" (65,71mm)
2,65 €*
pc:
AF0601.081.063
63mm
102
98
63
50
38
2 3/4" (81,5mm)
4,17 €*
pc:
AF0601.100.075
75mm
102
119
75
65
43
3 1/2" (100,33mm)
9,82 €*
pc:
AF0601.113.090
90mm
123
136
90
80
51
4" (113,03mm)
15,99 €*
pc:
AF0601.138.110
110mm
145
160
110
100
61
5" (138,43mm)
22,91 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Verschraubung, 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser, max. 10 bar ab 75mm
Material:
PVC-U
Farbe:
Grau
Dichtung O-Ring:
NBR, Farbe Schwarz

Ersatzteile Verschraubung AF0601

AF0600.SKM Basisteil Subject für Verschraubung

Ersatzteil Basisteil
AF0600.COA Überwurfmutter für Verschraubung

Ersatzteil Überwurfmutter
AF0600.EKM Einlegeteil Klebemuffe für Verschraubung

Einlegeteil Klebemuffe
AF0600.NBR O-Ring NBR für Verschraubung

O-Ring NBR
AF0600.EPDM O-Ring NBR für Verschraubung

O-Ring EPDM
AF0600.FPM O-Ring FPM für Verschraubung

O-Ring FPM (Viton)
Deckel für Verschraubung Gewinde

Verschlusskappe
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
