Variants

Item no.
Variation
D
D1
L
L1
PN
Price
Quantity
AF0101.000.012
12mm
12
16
27
13
16
0,29 €*
pc.:
AF0101.000.016
16mm
16
22
31
14
16
0,43 €*
pc.:
AF0101.000.020
20mm
20
27
37,5
17
25
0,26 €*
pc.:
AF0101.000.025
25mm
25
32,2
39,5
19
16
0,30 €*
pc.:
AF0101.000.032
32mm
32
40,5
49
23
16
0,40 €*
pc.:
AF0101.000.040
40mm
40
49
55
26
16
0,60 €*
pc.:
AF0101.000.050
50mm
50
60
65
31
16
0,70 €*
pc.:
AF0101.075.063
63mm
63
75
89
38
16
1,26 €*
pc.:
AF0101.000.075
75mm
75
89
92
44
16
2,28 €*
pc.:
AF0101.000.090
90mm
90
104
107
51
16
3,86 €*
pc.:
AF0101.000.110
110mm
110
131
128
61
16
5,89 €*
pc.:
AF0101.000.125
125mm
125
148
145
69
16
7,70 €*
pc.:
AF0101.000.160
160mm
160
178
181
87
16
13,59 €*
pc.:
AF0101.P10.200
200mm PN10
200
222
224
106
10
30,11 €*
pc:
AF0101.P16.200
200mm PN16
200
225
222
106
16
47,52 €*
pc.:
A-101-225
225mm
225
262
249
119
10
26,80 €*
pc:
A-101-280
280mm
280
320
302
146
10
64,11 €*
pc:
A-101-315
315mm
315
355
340
164
10
68,57 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

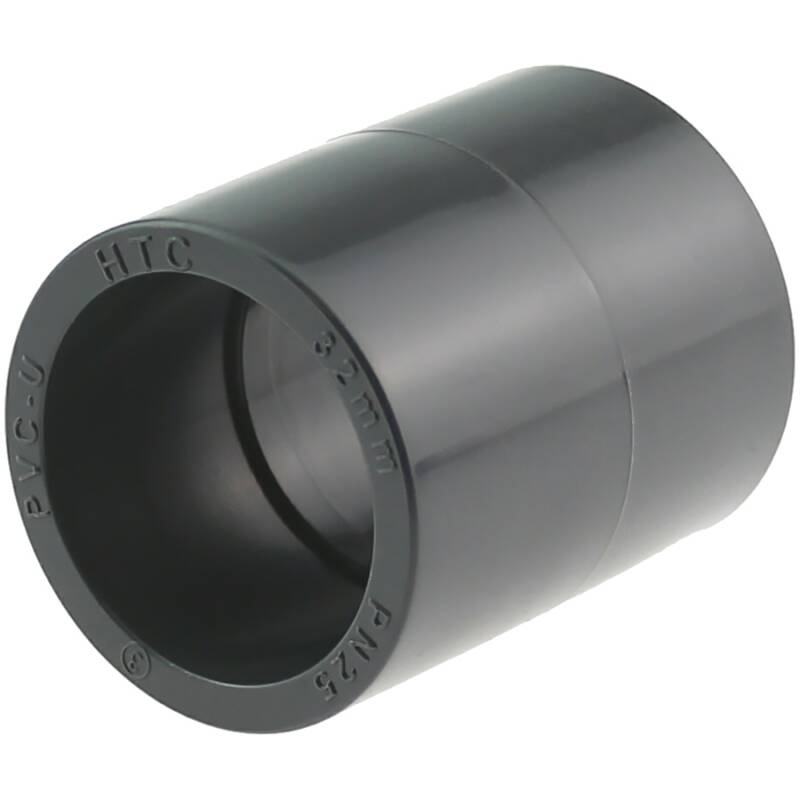

U-PVC solvent socket



 connection:       double socket
 temperature:  up to 45°C constant, short term 60°C
 working pressure (PN):  max. 16 bar till 20°C
 material:  PVC-U
 color:  Grey
 application:


DOWNLOAD PVC-U technische Charakteristik

DOWNLOAD Kleben von PVC-U Rohren und -Fittings

DOWNLOAD englisch die Gewindekennung - oder warum 1" eben keine 25,4mm sind

DOWNLOAD chemische Beständigkeit von Kunststoffen

DOWNLOAD äußere Merkmale von Spritzgussfittings

DOWNLOAD RoSH Bestätigung - Coraplax CH PVC-U Fittings und Armaturen

DOWNLOAD Unbedenklichkeit Kontakt mit Trinkwasser und Nahrung - Coraplax PVC-U Fittings
