Variants

Item no.
Variation
A
B
D
D1
L
L1
L2
Weight
Price
Quantity
AL0202.032.020
32 x 20mm
38
25
32
20
43
21
17
18
0,24 €*
pc:
AL0202.032.025
32 x 25mm
38
30
32
25
45
21
18
18
0,24 €*
pc:
AL0202.040.020
40 x 20mm
46
25
40
20
52
27
18
27
0,31 €*
pc:
AL0202.040.025
40 x 25mm
46
30
40
25
53
27
18
29
0,31 €*
pc:
AL0202.040.032
40 x 32mm
46
37,5
40
32
56
27
22
43
0,31 €*
pc:
AL0202.050.020
50 x 20mm
57
25
50
20
56
31
18
41
0,58 €*
pc:
AL0202.050.025
50 x 25mm
57
30
50
25
56
30
19
41
0,58 €*
pc:
AL0202.050.032
50 x 32mm
57
37,5
50
32
61
30
22
44
0,58 €*
pc:
AL0202.050.040
50 x 40mm
57
47
50
40
64
31
27
51
0,58 €*
pc:
AL0202.063.025
63 x 25mm
71
30
63
25
63
38
18
67
0,82 €*
pc:
AL0202.063.032
63 x 32mm
71
38
63
32
66
37
22
68
0,82 €*
pc:
AL0202.063.040
63 x 40mm
71
46
63
40
69
37
27
73
0,82 €*
pc:
AL0202.063.050
63 x 50mm
71
57,5
63
50
80
39
31
91
0,82 €*
pc:
AL0202.075.032
75 x 32mm
82,5
37,5
75
32
78
43
22
94
1,30 €*
pc:
AL0202.075.040
75 x 40mm
82,5
46
75
40
81
43
26
100
1,33 €*
pc:
AL0202.075.050
75 x 50mm
86
58
75
50
85,5
45
31,5
144
1,33 €*
pc:
AL0202.075.063
75 x 63mm
86
73
75
63
88,5
43
39
160
1,38 €*
pc:
AL0202.090.040
90 x 40mm
99
46
90
40
89
51
26
150
2,08 €*
pc:
AL0202.090.050
90 x 50mm
103
58
90
50
97
49
31
232
2,08 €*
pc:
AL0202.090.063
90 x 63mm
103
73
90
63
100
51
38
245
2,20 €*
pc:
AL0202.090.075
90 x 75mm
103
86
90
75
102,5
50
44
259
2,30 €*
pc:
AL0202.110.050
110 x 50mm
120
56,5
110
50
127
61
32
294
2,68 €*
pc:
AL0202.110.063
110 x 63mm
126
73
110
63
116
60
39
412
2,80 €*
pc:
AL0202.110.075
110 x 75mm
126
87,5
110
75
120
60
45
430
2,92 €*
pc:
AL0202.110.090
110 x 90mm
126
113
110
90
120
60
52
450
3,03 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

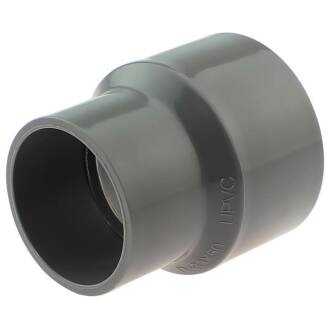

PVC-U Reduziermuffe, 2fach Klebemuffe ECO

Anschluss:
2fach Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
