Variants

Product picture
Item no.
Variation
A
B
F
G
L
L1
L2
L3
Price
Quantity
U-PVC solvent reducing socket 16/20 x 12mm
AF0202.016.012
16/20 x 12mm
19
12
16
20
32
1,79 €*
pc.:
U-PVC solvent reducing socket 20/25 x 12mm
AF0202.020.012
20/25 x 12mm
19
12
20
25
37,5
1,92 €*
pc.:
U-PVC solvent reducing socket 20/25 x 16mm
AF0202.020.016
20/25 x 16mm
19,8
16
20
25
39
0,57 €*
pc.:
U-PVC solvent reducing socket
AF0202.020.020
20/25 x 20mm
26
20
20
25
40,5
1,13 €*
pc:
U-PVC solvent reducing socket 25/32 x 16mm
AF0202.025.016
25/32 x 16mm
23,5
16
25
32
46
1,19 €*
pc.:
U-PVC solvent reducing socket 25 x 20mm
AF0202.025.020
25 x 20mm
27
20
25
33
43
0,31 €*
pc:
U-PVC solvent reducing socket
AF0202.025.025
25/32 x 25mm
33
25
25
32
44
0,44 €*
pc:
U-PVC solvent reducing socket 32/40 x 16mm
AF0202.032.016
32/40 x 16mm
25
16
32
40
52,5
1,02 €*
pc.:
U-PVC solvent reducing socket 32 x 20mm
AF0202.032.020
32 x 20mm
25,3
20
32
38
42
0,35 €*
pc:
U-PVC solvent reducing socket 32 x 25mm
AF0202.032.025
32 x 25mm
32,5
25
32
39,5
45
0,35 €*
pc:
U-PVC solvent reducing socket
AF0202.032.032
32/40 x 32mm
40
32
32
40
53
1,26 €*
pc:
U-PVC solvent reducing socket 40 x 20mm
AF0202.040.020
40 x 20mm
27
20
40
47,5
60
0,42 €*
pc:
U-PVC solvent reducing socket 40 x 25mm
AF0202.040.025
40 x 25mm
31,5
25
40
47,5
50,5
0,42 €*
pc:
U-PVC solvent reducing socket 40 x 32mm
AF0202.040.032
40 x 32mm
39,8
32
40
47,5
53
0,42 €*
pc:
U-PVC solvent reducing socket
AF0202.040.040
40/50 x 40mm
50
40
40
50
53
0,60 €*
pc:
U-PVC solvent reducing socket 50 x 20mm
AF0202.050.020
50 x 20mm
27
20
50
61
64
1,01 €*
pc:
U-PVC solvent reducing socket 50 x 25mm
AF0202.050.025
50 x 25mm
31
25
50
59
58,5
1,06 €*
pc:
U-PVC solvent reducing socket 50 x 32mm
AF0202.050.032
50 x 32mm
39
32
50
59
58,5
1,06 €*
pc:
U-PVC solvent reducing socket 50 x 40mm
AF0202.050.040
50 x 40mm
46,5
40
50
59
66,5
1,07 €*
pc:
U-PVC solvent reducing socket
AF0202.050.050
50/63 x 50mm
61
50
50
63
85,5
31,5
32
37,5
2,89 €*
pc:
U-PVC solvent reducing socket 63/75 x 20mm
AF0202.063.020
63 x 20mm
27
20
63
75,3
68
1,14 €*
pc:
U-PVC solvent reducing socket 63/75 x 25mm
AF0202.063.025
63 x 25mm
33
25
63
75,3
68
1,14 €*
pc:
U-PVC solvent reducing socket 63 x 32mm
AF0202.063.032
63 x 32mm
38,5
32
63
73
71,5
1,14 €*
pc:
U-PVC solvent reducing socket 63 x 40mm
AF0202.063.040
63 x 40mm
47
40
63
73
73
1,14 €*
pc:
U-PVC solvent reducing socket 63 x 50mm
AF0202.063.050
63 x 50mm
58
50
63
73
76
1,77 €*
pc:
U-PVC solvent reducing socket
AF0202.063.063
63/75 x 63mm
74,8
63
63
75
80
5,51 €*
pc:
U-PVC solvent reducing socket 75 x 40mm
AF0202.075.040
75 x 40mm
47
40
75
86
83
1,98 €*
pc:
U-PVC solvent reducing socket 75 x 50mm
AF0202.075.050
75 x 50mm
57,5
50
75
86
85
1,98 €*
pc:
U-PVC solvent reducing socket 75 x 63mm
AF0202.075.063
75 x 63mm
73
63
75
86
88
2,08 €*
pc:
U-PVC solvent reducing socket 90 x 50mm
AF0202.090.050
90 x 50mm
58
50
90
103
87
5,41 €*
pc:
U-PVC solvent reducing socket 90 x 63mm
AF0202.090.063
90 x 63mm
75,2
63
90
110
126,5
38
49
61
5,41 €*
pc:
U-PVC solvent reducing socket 90 x 75mm
AF0202.090.075
90/110 x 75mm
90
75
90
110
132,5
44
51
61
5,41 €*
pc:
U-PVC solvent reducing socket 110/125 x 50mm
AF0202.110.050
110 x 50mm
61
50
110
125,5
110
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 63mm
AF0202.110.063
110 x 63mm
73,5
63
110
126
116
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 75mm
AF0202.110.075
110 x 75mm
87,5
75
110
126
120
5,94 €*
pc:
U-PVC solvent reducing socket 110 x 90mm
AF0202.110.090
110 x 90mm
103
90
110
126
120
6,19 €*
pc:
U-PVC solvent reducing socket 125/140 x 75mm
AF0202.125.075
125/140 x 75mm
90
75
125
140
156
13,96 €*
pc.:
U-PVC solvent reducing socket 125/140 x 90mm
AF0202.125.090
125/140 x 90mm
105
90
125
140
162
13,96 €*
pc.:
U-PVC solvent reducing socket 125/140 x 110mm
AF0202.125.110
125/140 x 110mm
130
110
125
140
173
13,96 €*
pc.:
U-PVC solvent reducing socket 140/160 x 110mm
AF0202.160.110
140/160 x 110mm
130
110
140
160
185
18,20 €*
pc.:
U-PVC solvent reducing socket 140/160 x 125mm
AF0202.160.125
140/160 x 125mm
148
125
140
160
194
18,20 €*
pc.:
U-PVC solvent reducing socket 180/200 x 110mm
AF0202.200.110
180/200 x 110mm
130
110
180
200
215
31,33 €*
pc.:
U-PVC solvent reducing socket 180/200 x 125mm
AF0202.200.125
180/200 x 125mm
148
125
180
200
224
31,33 €*
pc.:
U-PVC solvent reducing socket 200/225 x 125mm
AF0202.225.125
200/225 x 125mm
148
125
200
225
224
44,51 €*
pc:
U-PVC solvent reducing socket 200/225 x 160mm
AF0202.225.160
200/225 x 160mm
180
160
200
225
258
44,51 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

Description

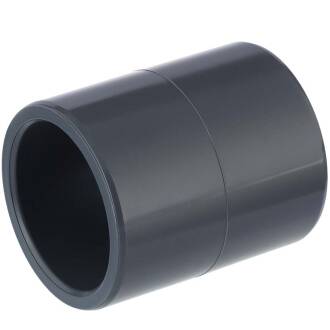

PVC-U Reduziermuffe, Klebemuffe/-stutzen x Klebemuffe

Anschluss:
Klebemuffe/-stutzen x Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:


Reduziermuffe

Abschnittstelle der Spritzgussform


Die Abschnittstelle bei PVC-U Reduziermuffe befindet sich teilweise im sichtbaren Bereich, da sich im Innenbereich die Abschnittstelle nachteilig auf den Strömungsverlauf auswirken kann.

Die Abschnittstelle kann falls notwendig einfach mit einem Messer o.ä. nachbearbeitet werden.
