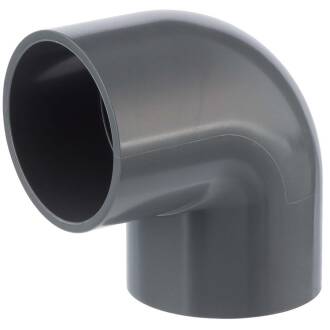

U-PVC solvent elbow 90° - ECO

SKU: AL0403
Auswahl Steuerzone / Lieferland
from
0,20 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately

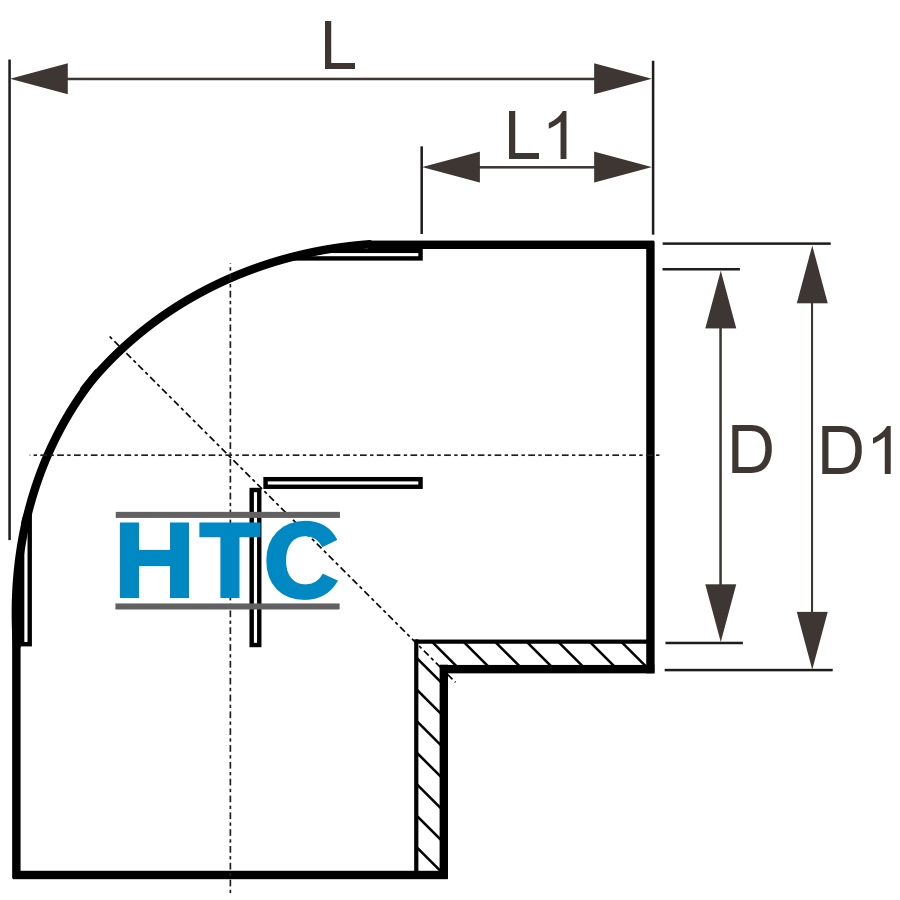

   Variants

Item no.
Variation
D
D1
L
L1
Price
Quantity
CF0403.000.020
20mm
20
24
40
17
0,20 €*
pc.:
CF0403.000.025
25mm
25
30
48
19
0,26 €*
pc.:
AL0403.000.040
40mm
40
46
71
26
0,54 €*
pc.:
AL0403.000.050
50mm
50
57
87
32
0,58 €*
pc.:
AL0403.000.090
90mm
90
99
147
52
3,56 €*
pc.:
AL0403.000.160
160mm
160
173
241
75
23,53 €*
pc.:
AL0403.000.200
200mm
200
216
308
100
43,66 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Winkel 90°, 2fach Klebemuffe ECO

Anschluss:
2fach Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
