Variants

Item no.
Variation
A
B
C
D
Weight
Price
Quantity
AF0515.020.020
4fach 20 x 20mm
20
27
16
56
51
3,64 €*
pc:
AF0515.025.020
4fach 25 x Abgang 20mm
25
33
19
66
92
3,84 €*
pc:
AF0515.032.020
4fach 32 x Abgang 20mm
32
41
22
82
135
5,02 €*
pc:
AF0515.050.020
4fach 50 x Abgang 20mm
50
63
31
121
310
9,29 €*
pc:
AF0515.050.025
4fach 50 x Abgang 25mm
50
63
31
121
324
9,29 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

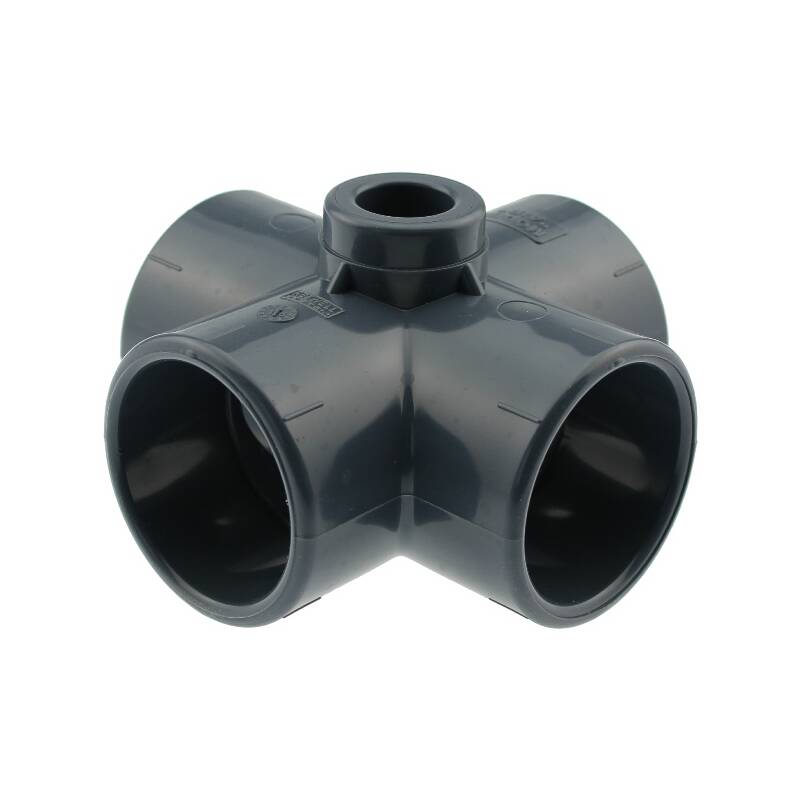

PVC-U Kreuz mit Abgang mittig 5fach Klebemuffe

Anschluss:
5fach Klebemuffe
Winkel:
90°
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
