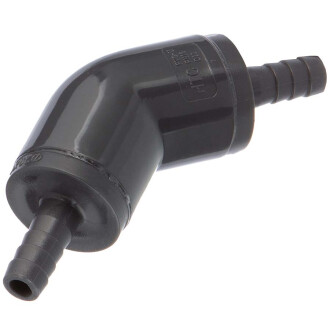

U-PVC elbow 45° with hose tail

SKU: AF0414
Auswahl Steuerzone / Lieferland
from
3,25 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting

wichtiger Hinweis

der Artikel wird speziell für Ihren Auftrag angefertigt - keine Rückgabe, kein Widerruf

  • Available immediately
   Variants

Product picture
Item no.
Variation
D
D1
DN
Hose ø inside
Price
Quantity
U-PVC elbow 45° with hose tail
AF0414.020.008
2fach 8mm
8
8
5
8
3,25 €*
pc.:
U-PVC elbow 45° with hose tail
AF0414.020.010
2fach 10mm
10
10
6
10
3,25 €*
pc.:
U-PVC elbow 45° with hose tail
AF0414.020.012
2fach 12mm
12
12
8
12
3,25 €*
PVC-U Winkel 45° mit 2fach Schlauchtülle 16mm
AF0414.020.016
2fach 16mm
16
16
10
16
3,25 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 20mm
AF0414.020.020
2fach 20mm
20
20
13
20
3,25 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 25mm
AF0414.025.025
2fach 25mm
25
25
18
25
3,86 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 32mm
AF0414.032.032
2fach 32mm
32
32
23
32
3,86 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 38mm
AF0414.038.038
2fach 38mm
38
38
25
38
6,37 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 40mm
AF0414.040.040
2fach 40mm
40
40
27
40
6,60 €*
pc.:
U-PVC elbow 45° with hose tail 50 x 38mm
AF0414.050.038
50 x 38mm
50
38
25
38
7,34 €*
pc.:
PVC-U Winkel 45° mit 2fach Schlauchtülle 50mm
AF0414.050.050
2fach 50mm
50
50
36
50
7,93 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Winkel 45° mit 2fach Schlauchtülle

Anschluss:
2fach Schlauchtülle
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD chemische Beständigkeit von Kunststoffen
