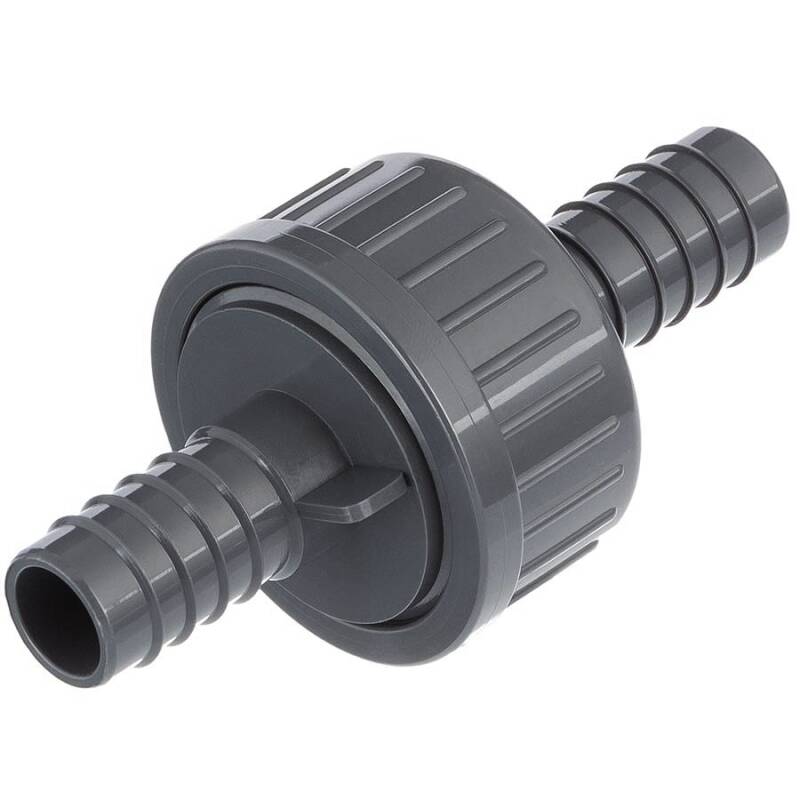

U-PVC check valve hose tail with membrane

SKU: AK1999
Auswahl Steuerzone / Lieferland
from
4,69 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
d1
d2
Z
Weight
Price
Quantity
AK1999.000.013
13mm (1/2" Schlauch)
50
14,5
13
28
58
4,95 €*
pc.:
AK1999.000.017
17mm (5/8" Schlauch)
50
18,5
17
28
58
4,95 €*
pc.:
AK1999.000.021
21mm (1/2" Schlauch)
50
23
21
28
58
4,69 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Rückschlagventil mit Tülle

Anschluss:
2fach Schlauchtülle
Verschlussart:
Membran
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
---
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
Mehr lesenWohin mit dem Rückschlagventil?
