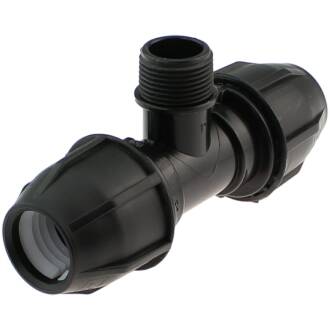

Tee 90° compression fitting x male thread

SKU: PZ0506
Auswahl Steuerzone / Lieferland
from
0,80 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
d
E
G
H
L
L1
Pipe O-ø
Price
Quantity
Tee 90° compression fitting x male thread
PZ0506.020.020
20mm x 1/2"
20
46
1/2" (20,96mm)
129
40
20
0,80 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.020.025
20mm x 3/4"
20
46
3/4" (26,44mm)
130
41
20
0,83 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.025.020
25mm x 1/2"
25
55
1/2" (20,96mm)
147
42
25
1,30 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.025.025
25mm x 3/4"
25
56
3/4" (26,44mm)
145
45
25
1,30 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.025.032
25mm x 1"
25
54
1" (33,25mm)
158
56
25
1,31 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.032.020
32mm x 1/2"
32
64
1/2" (20,96mm)
16
181
46
32
2,21 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.032.025
32mmm x 3/4"
32
62
3/4" (26,44mm)
185
51
32
1,84 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.032.032
32mm x 1"
32
62
1" (33,25mm)
186
51
32
1,87 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.032.040
32mm x 1 1/4"
32
64
1 1/4" (41,91mm)
18,5
182
51
32
2,36 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.040.032
40mm x 1"
40
78
1" (33,25mm)
20
210
54
b>40
4,07 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.040.040
40mm x 1 1/4"
40
78
1 1/4" (41,91mm)
224
63
40
3,26 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.040.050
40mm x 1 1/2"
40
78
1 1/2" (47,81mm)
21
210
53
40
4,19 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.050.040
50mm x 1 1/4"
50
94
1 1/4" (41,91mm)
22
262
62
50
7,12 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.050.050
50mm x 1 1/2"
50
94
1 1/2" (47,81mm)
246
78
50
6,21 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.050.063
50mm x 2"
50
94
2" (59,61mm)
23,5
262
68
50
7,39 €*
pc.:
Tee 90° compression fitting x male thread
PZ0506.063.063
63mm x 2"
63
112
2" (59,61mm)
303
92
63
9,94 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Klemmringverschraubung T-Stück, 2fach Klemme x Aussengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich und Bewässerung

Anschluss:
Klemme x Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C (in Verbindung mit Innengewinde max. 16 bar)
Material:
PP Polypropylen
O-Ring:
EPDM
Metallring:
Stahl vernickelt
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100
PVC Flexschlauch Klebeschlauch

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Brauchwasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Produkt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
