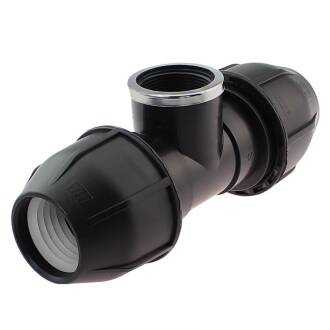

Tee 90° compression fitting x female thread

SKU: PZ0504
Auswahl Steuerzone / Lieferland
from
0,96 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
d
E
G
H
L
L1
Pipe O-ø
Price
Quantity
Tee 90° compression fitting x female thread
PZ0504.020.020
20mm x 1/2"
20
46
1/2" (20,96mm)
14
134
38
20
0,96 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.020.025
20mm x 3/4"
20
46
3/4" (26,44mm)
19
130
42
20
1,02 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.025.020
25mm x 1/2"
25
55
1/2" (20,96mm)
14
143
41
25
1,44 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.025.025
25mm x 3/4"
25
55
3/4" (26,44mm)
18
139
47
25
1,48 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.025.032
25mm x 1"
25
55
1" (33,25mm)
20
160
38,5
25
1,59 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.032.020
32mm x 1/2"
32
64
1/2" (20,96mm)
16,5
180
39
32
2,25 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.032.025
32mm x 3/4"
32
62
3/4" (26,44mm)
14
157
52
32
2,15 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.032.032
32mm x 1"
32
63
1" (33,25mm)
19
182
59
32
2,15 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.032.040
32mm x 1 1/4"
32
64
1 1/4" (41,91mm)
21,5
183
45
32
2,48 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.040.032
40mm x 1"
40
78
1" (33,25mm)
20
214
44
40
4,12 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.040.040
40mm x 1 1/4"
40
79
1 1/4" (41,91mm)
15
224
50
40
3,71 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.040.050
40mm x 1 1/2"
40
78
1 1/2" (47,81mm)
23
214
49
40
5,11 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.050.020
50mm x 1/2"
50
94
1/2" (20,96mm)
17
248
50
50
7,35 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.050.040
50mm x 1 1/4"
50
94
1 1/4" (41,91mm)
23
248
54
50
7,50 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.050.050
50mm x 1 1/2"
50
94
1 1/2" (47,81mm)
23
249
60
50
5,91 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.050.063
50mm x 2"
50
94
2" (59,61mm)
26
248
58
50
8,19 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.063.040
63mm x 1 1/4"
63
113
1 1/4" (41,91mm)
23,5
304
61
63
12,60 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.063.050
63mm x 1 1/2"
63
113
1 1/2" (47,81mm)
24
306
62
63
12,79 €*
pc.:
Tee 90° compression fitting x female thread
PZ0504.063.063
63mm x 2"
63
112
2" (59,61mm)
32
298
60
63
9,77 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Klemmringverschraubung T-Stück, 2fach Klemme x Innengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich und Bewässerung

Anschluss:
Klemme x Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
EPDM
Metallring:
Eisen vernickelt
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100
PVC Flexschlauch Klebeschlauch

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Brauchwasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Produkt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
