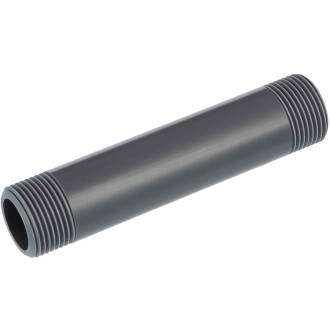

PVC-U threaded pipe double external thread

SKU: AF0105
Auswahl Steuerzone / Lieferland
from
1,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
DN
G
L
L1
Price
Quantity
AF0105.100.020
1/2" x 100mm
13
1/2" (20,96mm)
100
ca. 19
1,67 €*
pc:
AF0105.150.020
1/2" x 150mm
13
1/2" (20,96mm)
150
ca. 19
1,76 €*
pc:
AF0105.200.020
1/2" x 200mm
13
1/2" (20,96mm)
200
ca. 19
1,86 €*
pc:
AF0105.250.020
1/2" x 250mm
13
1/2" (20,96mm)
250
ca. 19
1,95 €*
pc:
AF0105.300.020
1/2" x 300mm
13
1/2" (20,96mm)
300
ca. 19
2,05 €*
pc:
AF0105.500.020
1/2" x 500mm
13
1/2" (20,96mm)
500
ca. 19
2,42 €*
pc:
AF0105.100.025
3/4" x 100mm
18
3/4" (26,44mm)
100
ca. 19
1,74 €*
AF0105.150.025
3/4" x 150mm
18
3/4" (26,44mm)
150
ca. 19
1,86 €*
pc:
AF0105.200.025
3/4" x 200mm
18
3/4" (26,44mm)
200
ca. 19
1,99 €*
pc:
AF0105.250.025
3/4" x 250mm
18
3/4" (26,44mm)
250
ca. 19
2,12 €*
pc:
AF0105.300.025
3/4" x 300mm
18
3/4" (26,44mm)
300
ca. 19
2,24 €*
pc:
AF0105.500.025
3/4" x 500mm
18
3/4" (26,44mm)
500
ca. 19
2,75 €*
pc:
AF0105.100.032
1" x 100mm
24
1" (33,25mm)
100
ca. 20
1,86 €*
pc:
AF0105.150.032
1" x 150mm
24
1" (33,25mm)
150
ca. 20
2,03 €*
pc:
AF0105.200.032
1" x 200mm
24
1" (33,25mm)
200
ca. 20
2,24 €*
pc:
AF0105.250.032
1" x 250mm
24
1" (33,25mm)
250
ca. 20
2,42 €*
pc:
AF0105.300.032
1" x 300mm
24
1" (33,25mm)
300
ca. 20
2,61 €*
pc:
AF0105.500.032
1" x 500mm
24
1" (33,25mm)
500
ca. 20
3,36 €*
pc:
AF0105.100.050
1 1/2" x 100mm
37
1 1/2" (47,81mm)
100
ca. 20
3,21 €*
pc:
AF0105.150.050
1 1/2" x 150mm
37
1 1/2" (47,81mm)
150
ca. 20
3,52 €*
pc:
AF0105.200.050
1 1/2" x 200mm
37
1 1/2" (47,81mm)
200
ca. 20
3,84 €*
pc:
AF0105.250.050
1 1/2" x 250mm
37
1 1/2" (47,81mm)
250
ca. 20
4,17 €*
pc:
AF0105.300.050
1 1/2" x 300mm
37
1 1/2" (47,81mm)
300
ca. 20
4,47 €*
pc:
AF0105.500.050
1 1/2" x 500mm
37
1 1/2" (47,81mm)
500
ca. 20
5,74 €*
pc:
AF0105.100.063
2" x 100mm
48
2" (59,61mm)
100
ca. 24
3,47 €*
pc:
AF0105.150.063
2" x 150m
48
2" (59,61mm)
150
ca. 24
3,92 €*
pc:
AF0105.200.063
2" x 200mm
48
2" (59,61mm)
200
ca. 24
4,34 €*
pc:
AF0105.250.063
2" x 250mm
48
2" (59,61mm)
250
ca. 24
4,78 €*
pc:
AF0105.300.063
2" x 300mm
48
2" (59,61mm)
300
ca. 24
5,22 €*
pc:
AF0105.500.063
2" x 500mm
48
2" (59,61mm)
500
ca. 24
6,96 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Gewinderohr Rohrnippel, 2fach Aussengewinde

Anschluss:
2fach Aussengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
