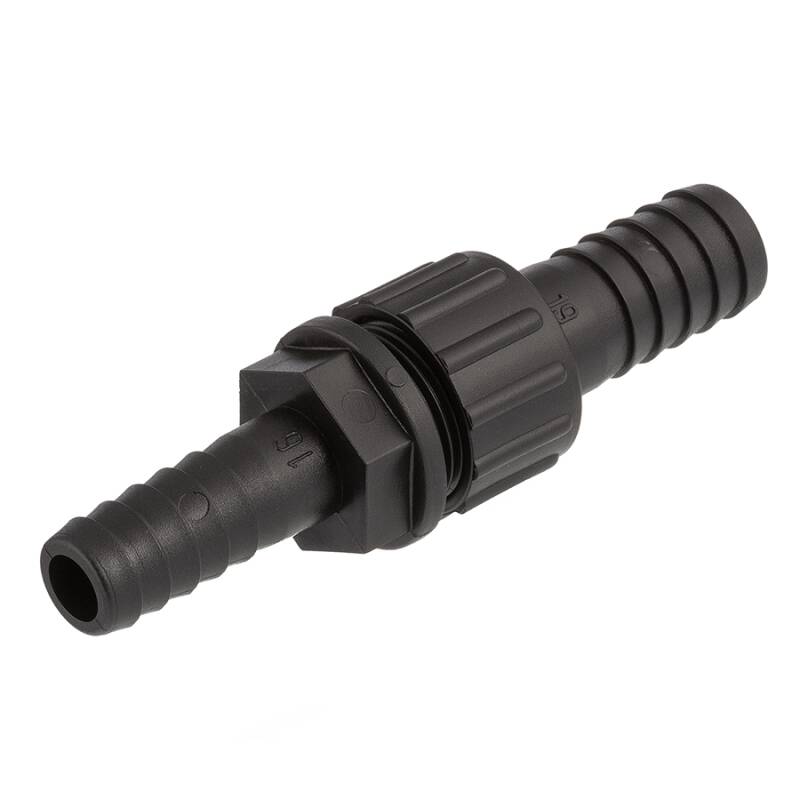

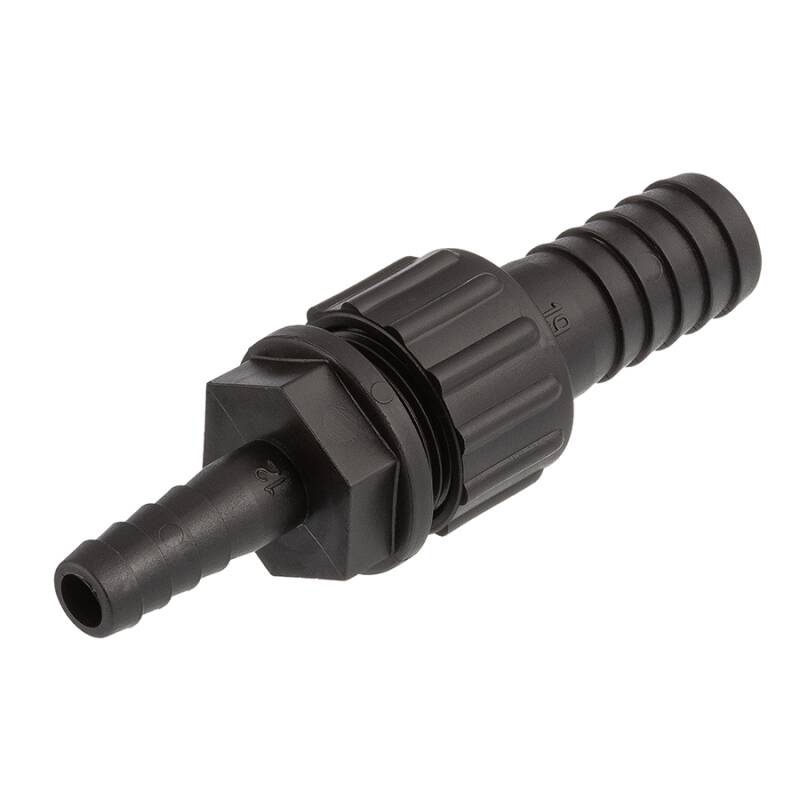

PP union with hose tail

SKU: PF0601
Auswahl Steuerzone / Lieferland
from
1,81 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
C
D
PN
Price
Quantity

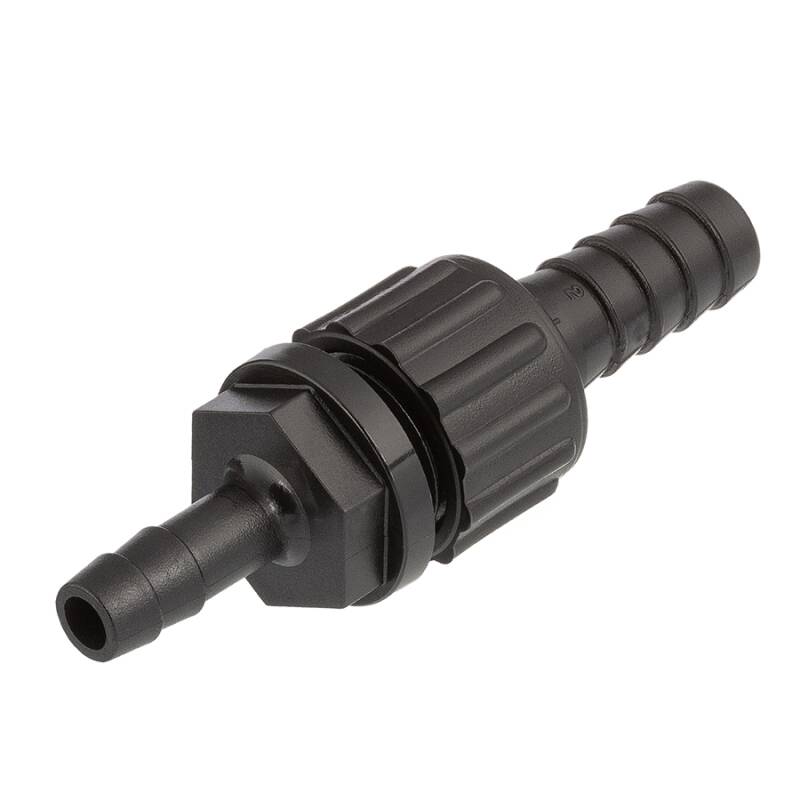

PP union with hose tail
PF0601.013.009
13 x 9mm
13
9
1/2" (20,96mm)
89
6
2,44 €*
pc:

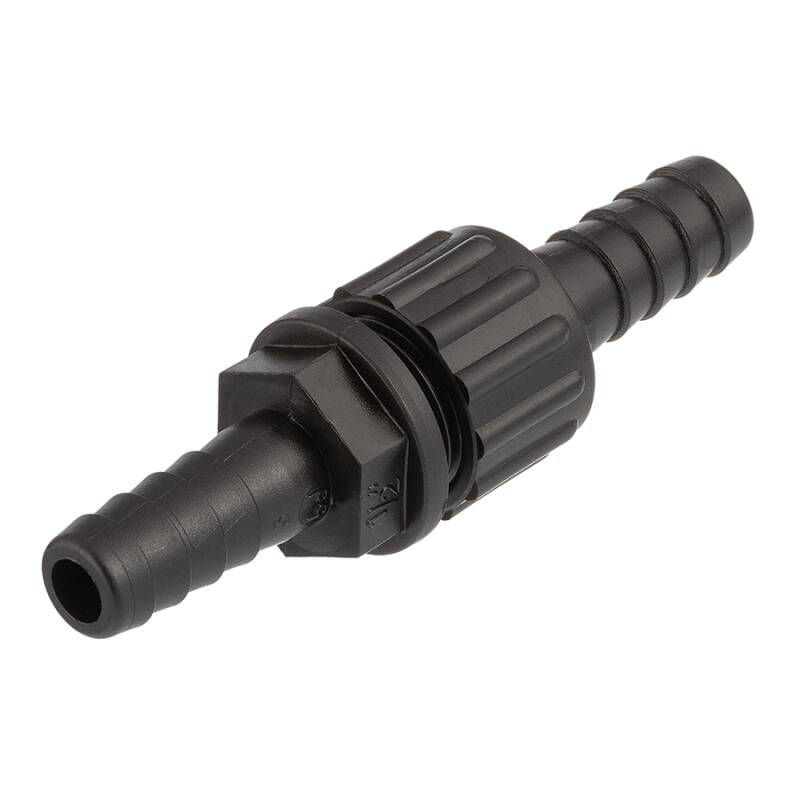

PP union with hose tail
PF0601.013.013
13 x 13mm
13
13
1/2" (20,96mm)
98
6
1,81 €*
pc:

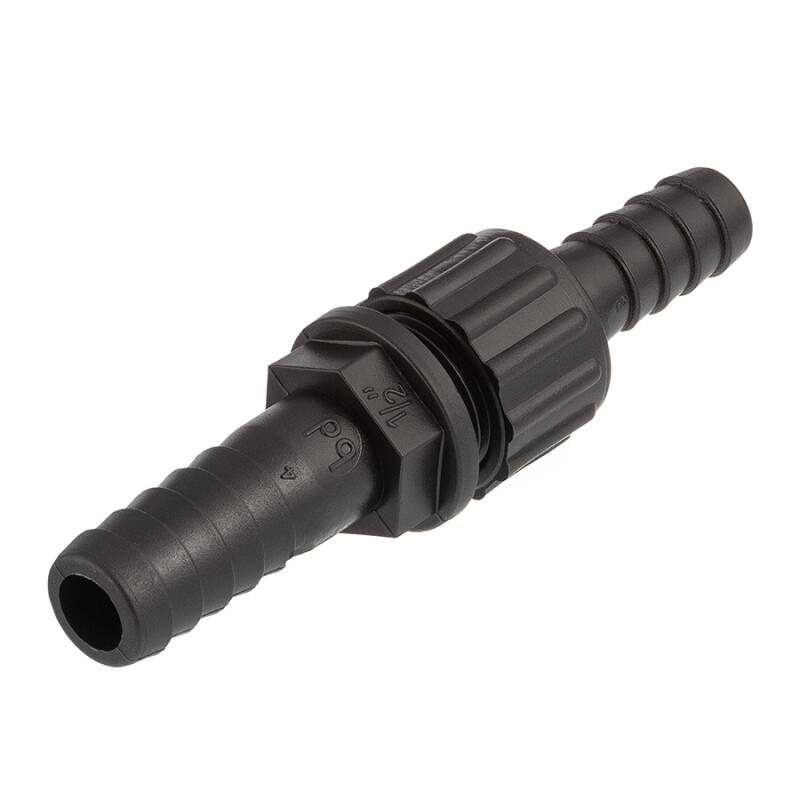

PP union with hose tail
PF0601.013.016
13 x 16mm
13
16
1/2" (20,96mm)
105
6
1,87 €*
pc:

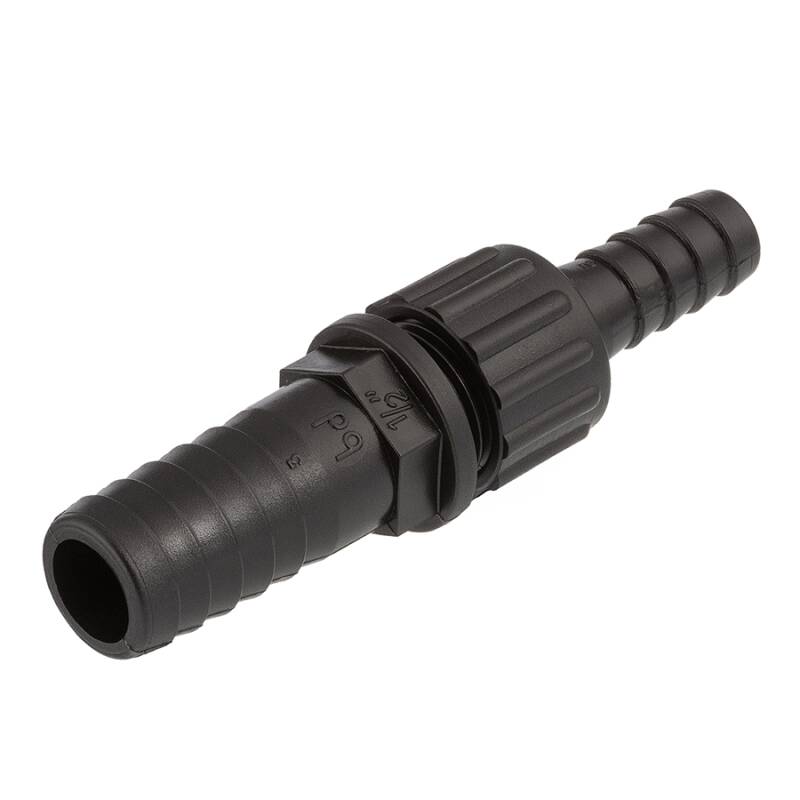

PP union with hose tail
PF0601.013.020
13 x 20mm
13
20
1/2" (20,96mm)
104
6
1,95 €*
pc:

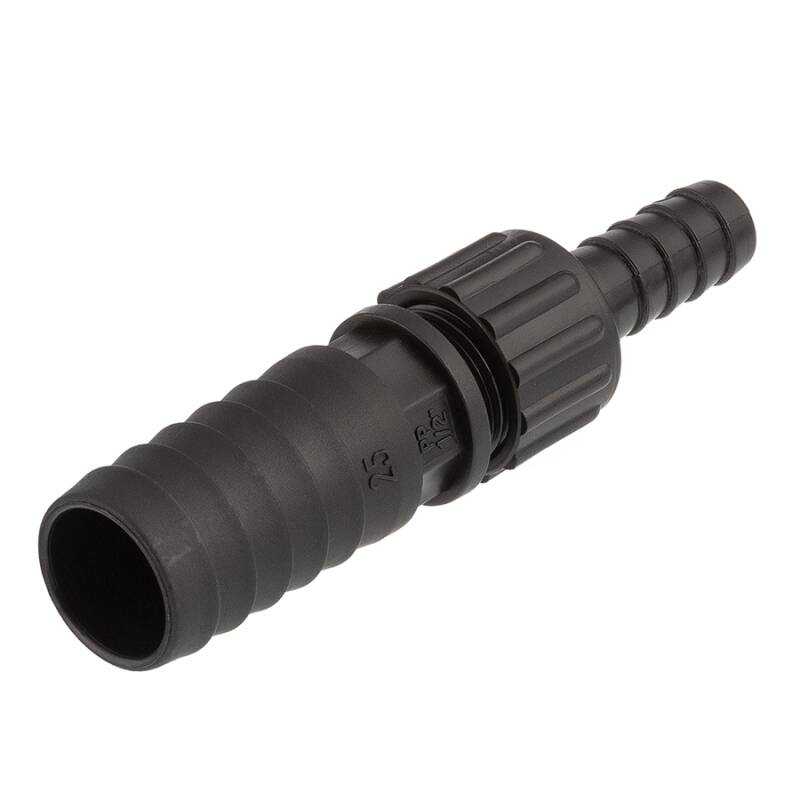

PP union with hose tail
PF0601.013.025
13 x 25mm
13
25
1/2" (20,96mm)
108,5
6
2,09 €*
pc:
PP union with hose tail
PF0601.019.012
19 x 12mm
19
12
3/4" (26,44mm)
116
6
2,11 €*
pc:
PP union with hose tail
PF0601.019.013
19 x 13mm
19
13
3/4" (26,44mm)
116
6
2,11 €*
pc:
PP union with hose tail
PF0601.019.016
19 x 16mm
19
16
3/4" (26,44mm)
116
6
2,15 €*
pc:

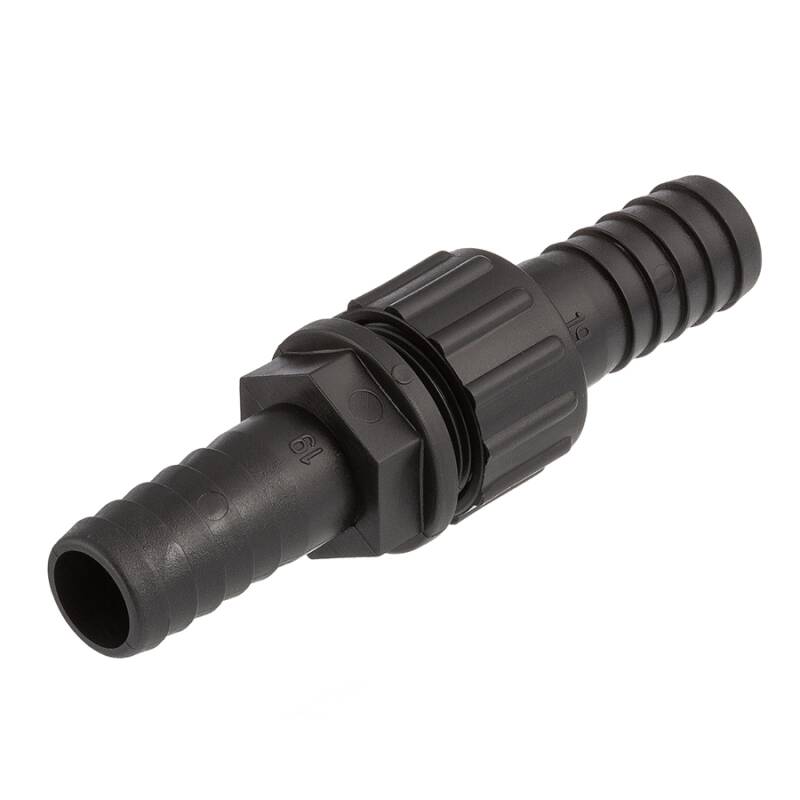

PP union with hose tail 19 x 19mm
PF0601.019.019
19 x 19mm
19
19
3/4" (26,44mm)
116
6
2,21 €*
pc:

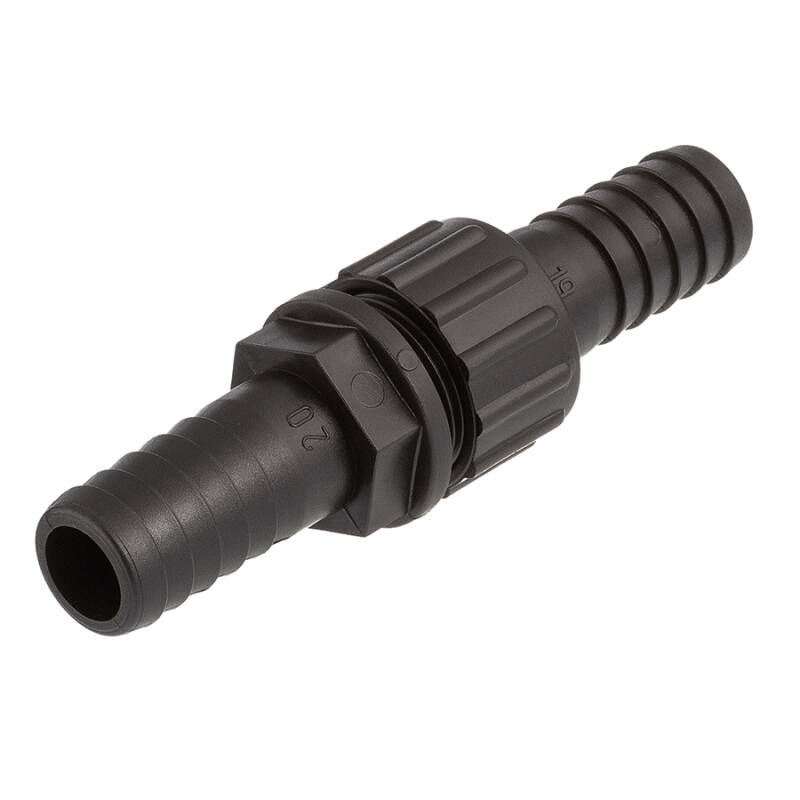

PP union with hose tail 19 x 20mm
PF0601.019.020
19 x 20mm
19
20
3/4" (26,44mm)
120
6
2,21 €*
pc:

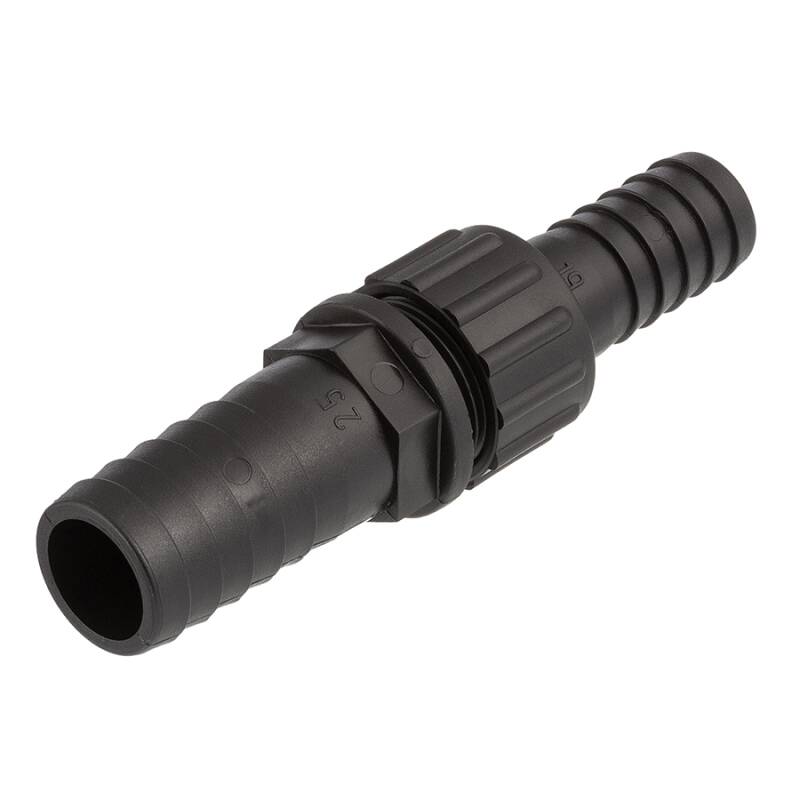

PP union with hose tail 19 x 25mm
PF0601.019.025
19 x 25mm
19
25
3/4" (26,44mm)
120
6
2,36 €*
pc:

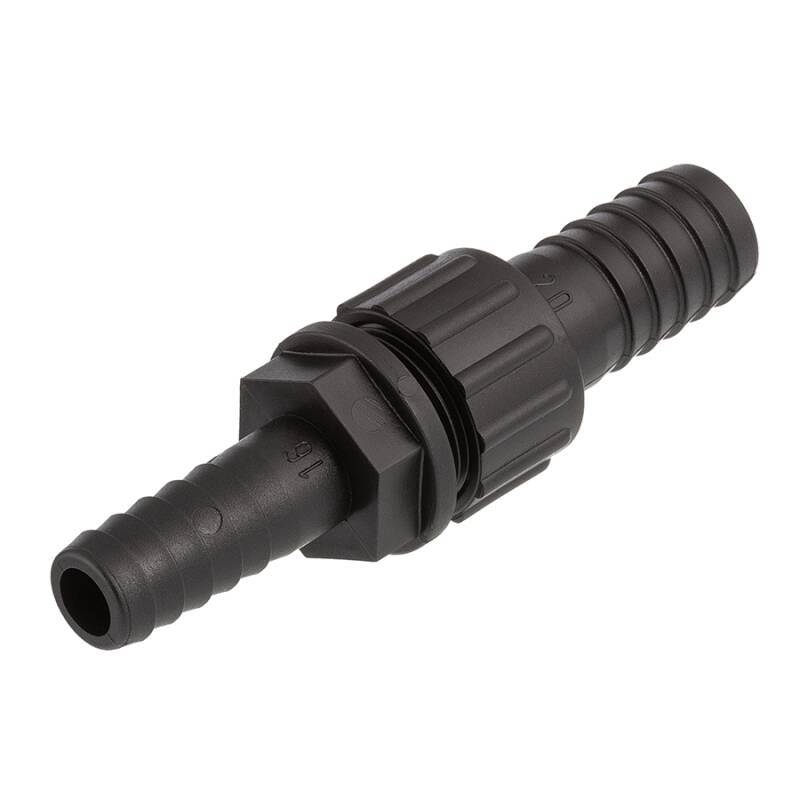

PP union with hose tail
PF0601.020.016
20 x 16mm
20
16
3/4" (26,44mm)
116
6
2,15 €*
pc:

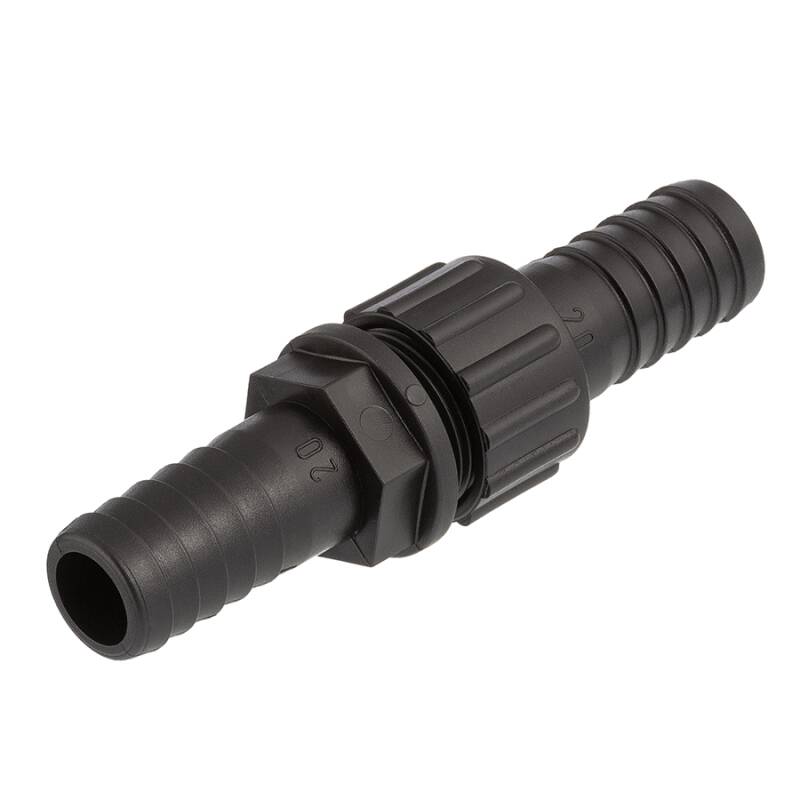

PP union with hose tail
PF0601.020.020
20 x 20mm
20
20
3/4" (26,44mm)
116
6
2,21 €*
pc:

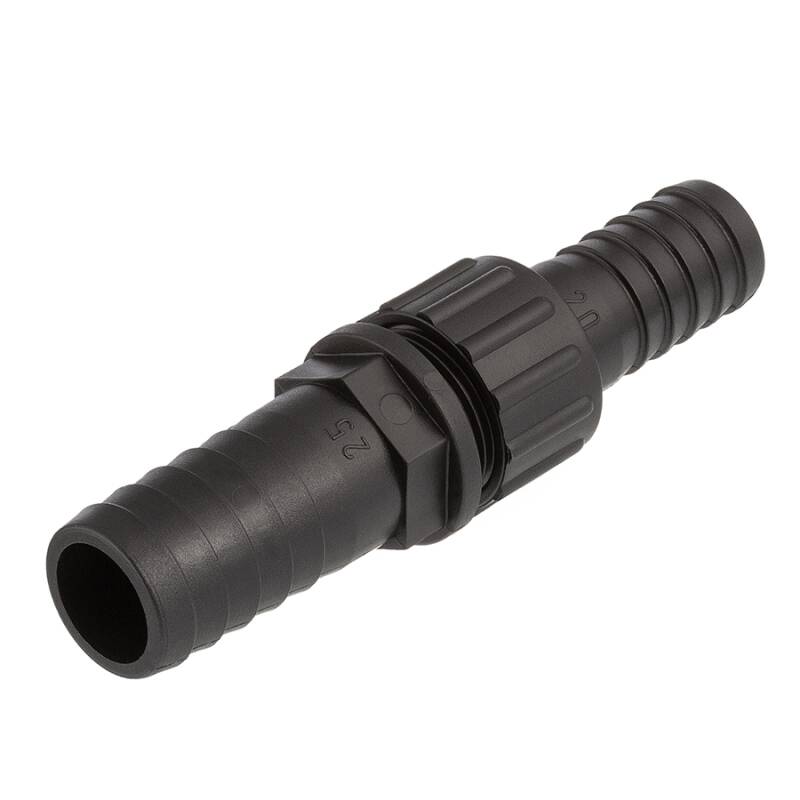

PP union with hose tail
PF0601.020.025
20 x 25mm
20
25
3/4" (26,44mm)
122
6
2,36 €*
pc:

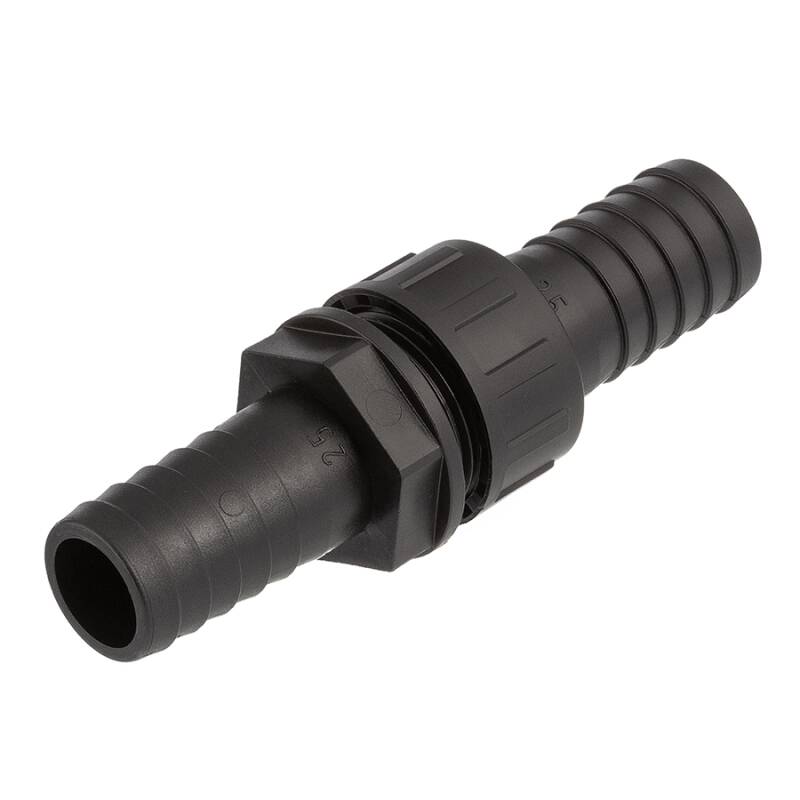

PP union with hose tail
PF0601.025.025
25 x 25mm
25
25
1" (33,25mm)
129
6
3,18 €*
pc:

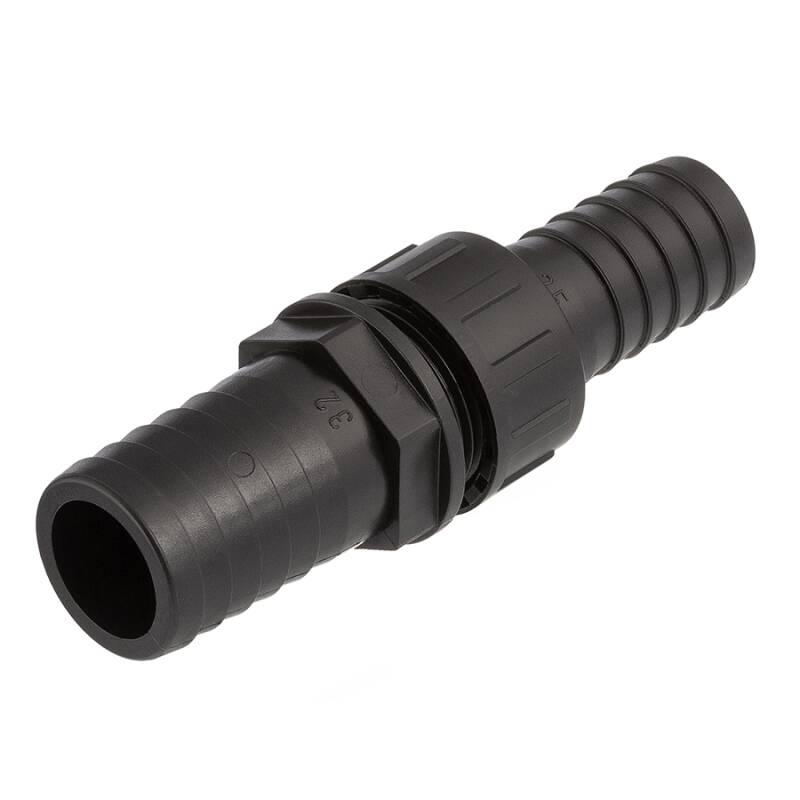

PP union with hose tail
PF0601.025.032
25 x 32mm
25
32
1" (33,25mm)
129
6
3,34 €*
pc:

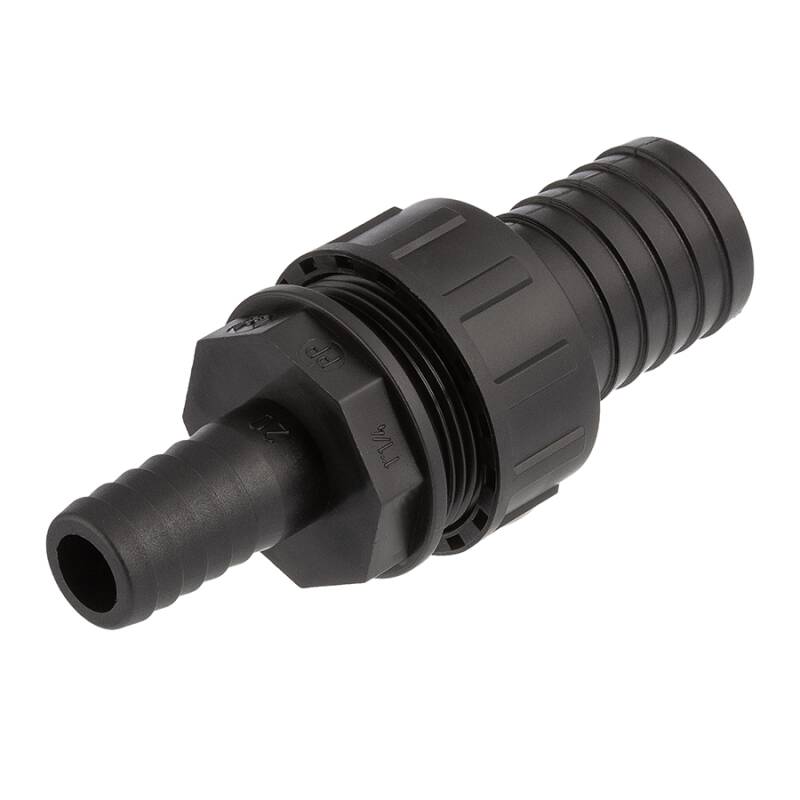

PP union with hose tail
PF0601.032.020
32 x 20mm
32
20
1 1/4" (41,91mm)
123
6
3,82 €*
pc:

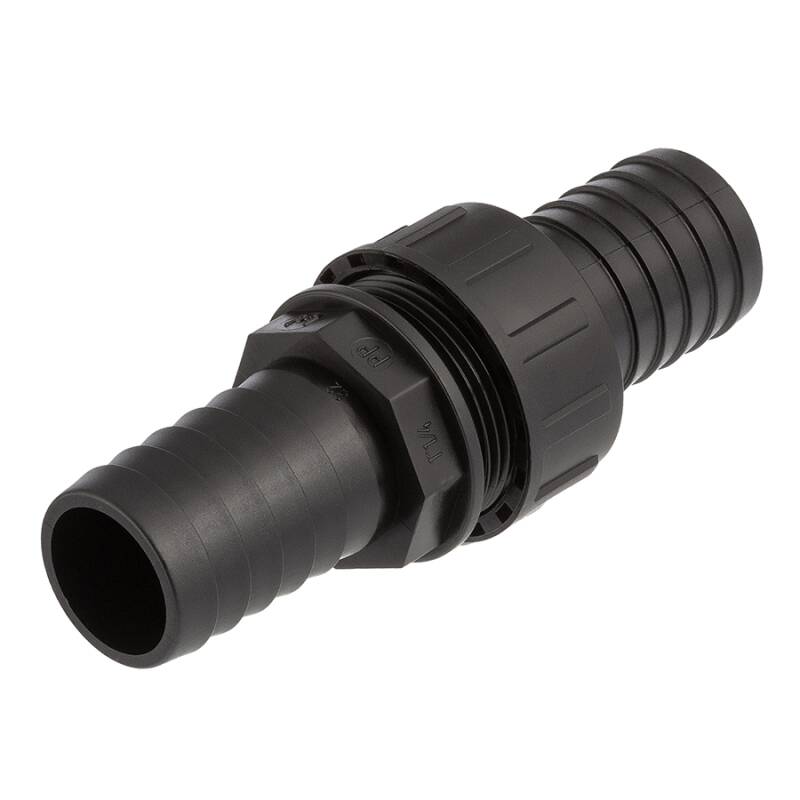

PP union with hose tail
PF0601.032.032
32 x 32mm
32
32
1 1/4" (41,91mm)
132
6
4,06 €*
pc:

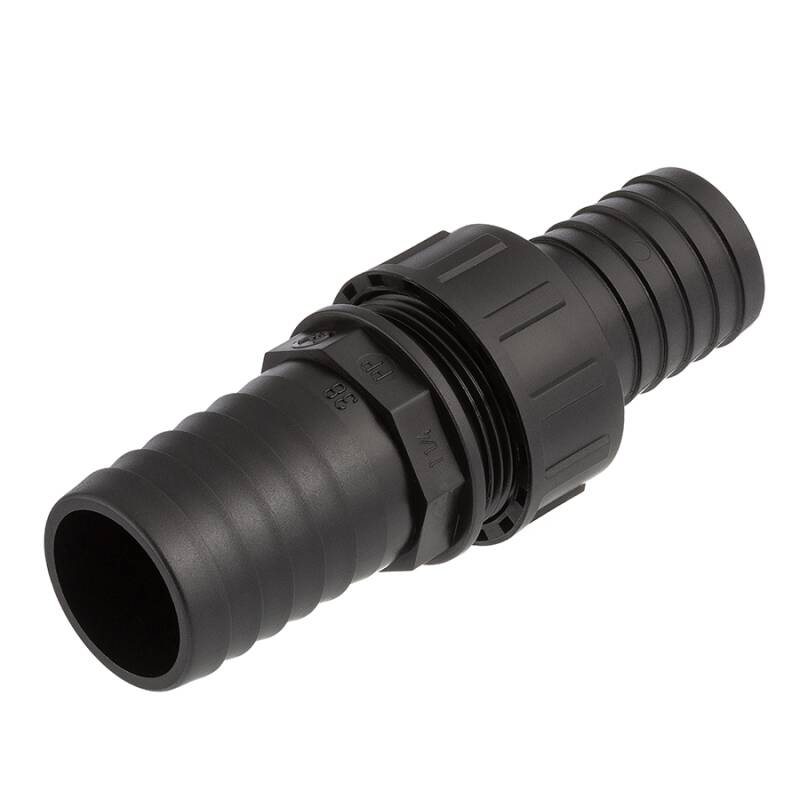

PP union with hose tail
PF0601.032.038
32 x 38mm
32
38
1 1/4" (41,91mm)
134
6
4,47 €*
pc:

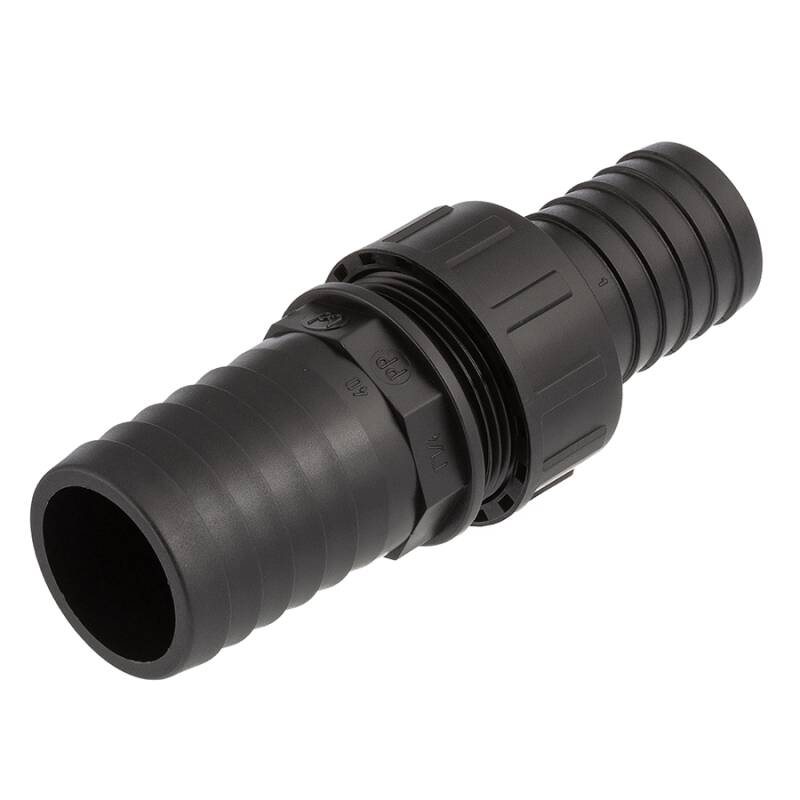

PP union with hose tail
PF0601.032.040
32 x 40mm
32
40
1 1/4" (41,91mm)
134
6
4,47 €*
pc:

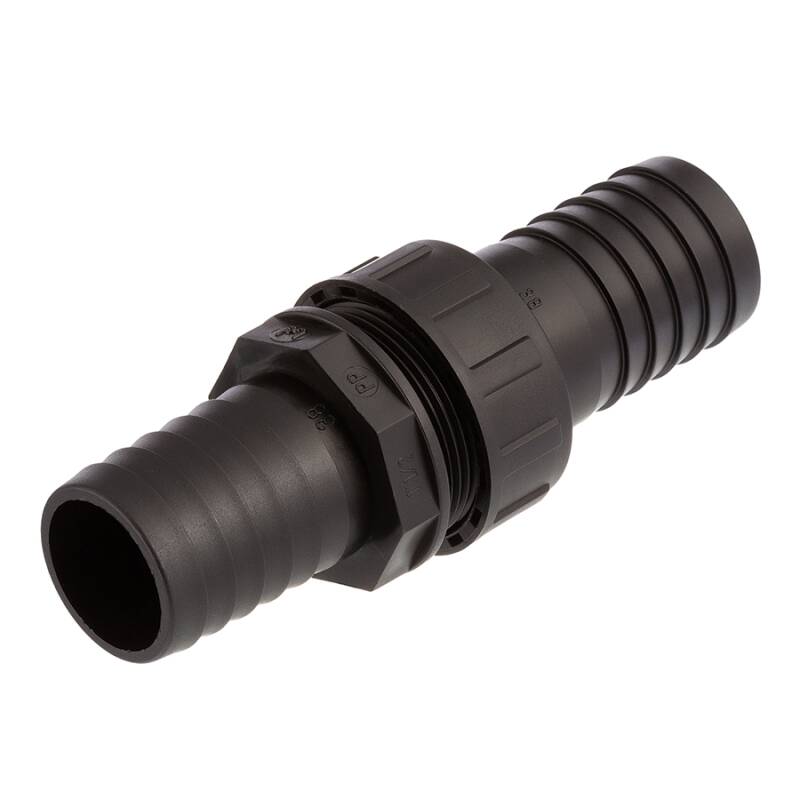

PP union with hose tail
PF0601.038.038
38 x 38mm
38
38
1 1/2" (47,80mm)
153
6
7,27 €*
pc:

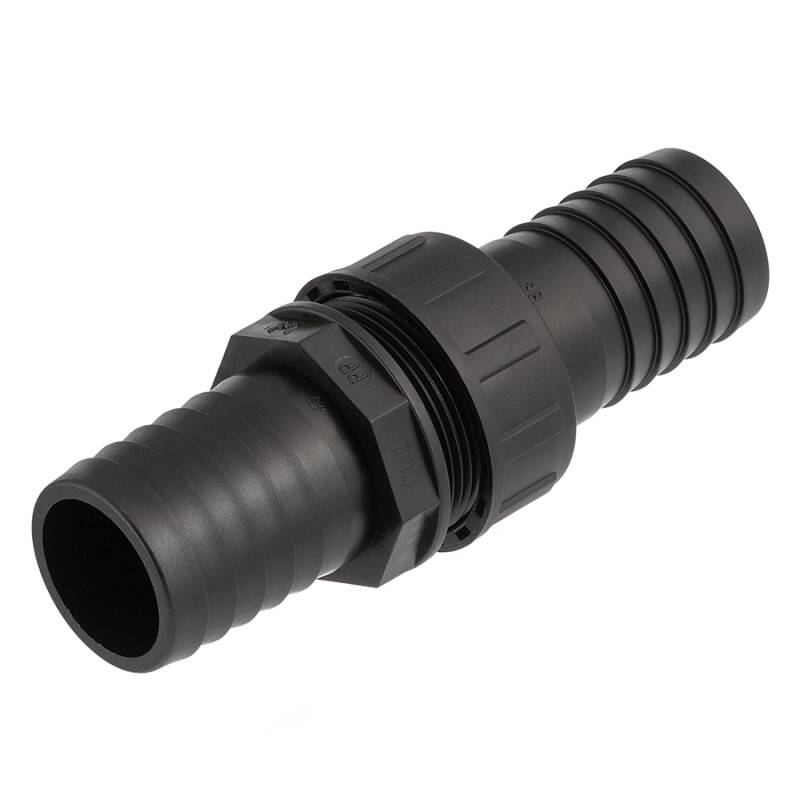

PP union with hose tail
PF0601.038.040
38 x 40mm
38
40
1 1/2" (47,80mm)
156
6
7,27 €*
pc:

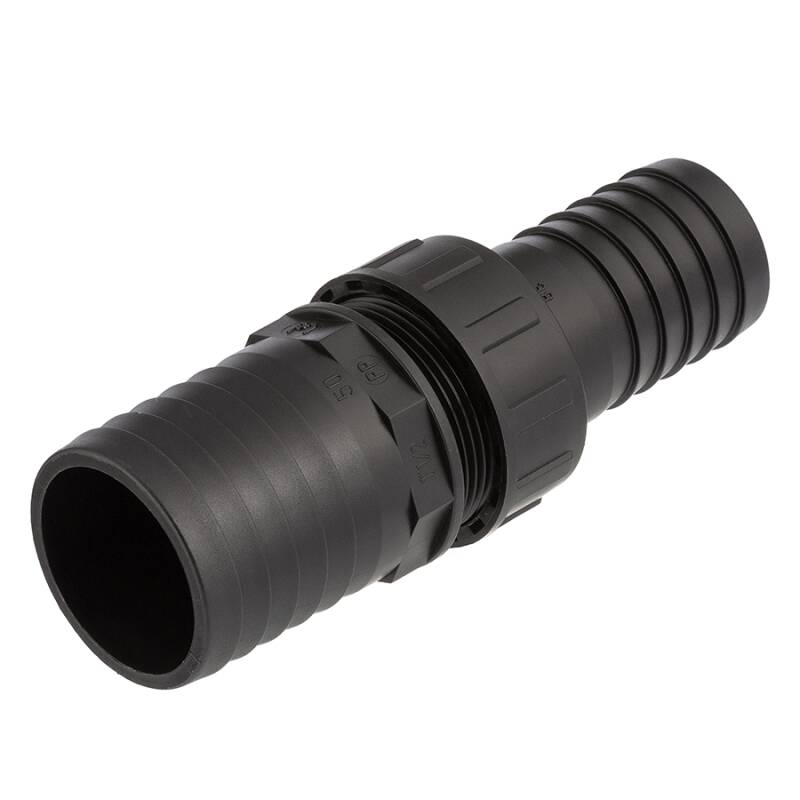

PP union with hose tail
PF0601.038.050
38 x 50mm
38
50
1 1/2" (47,80mm)
156
6
7,69 €*
pc:

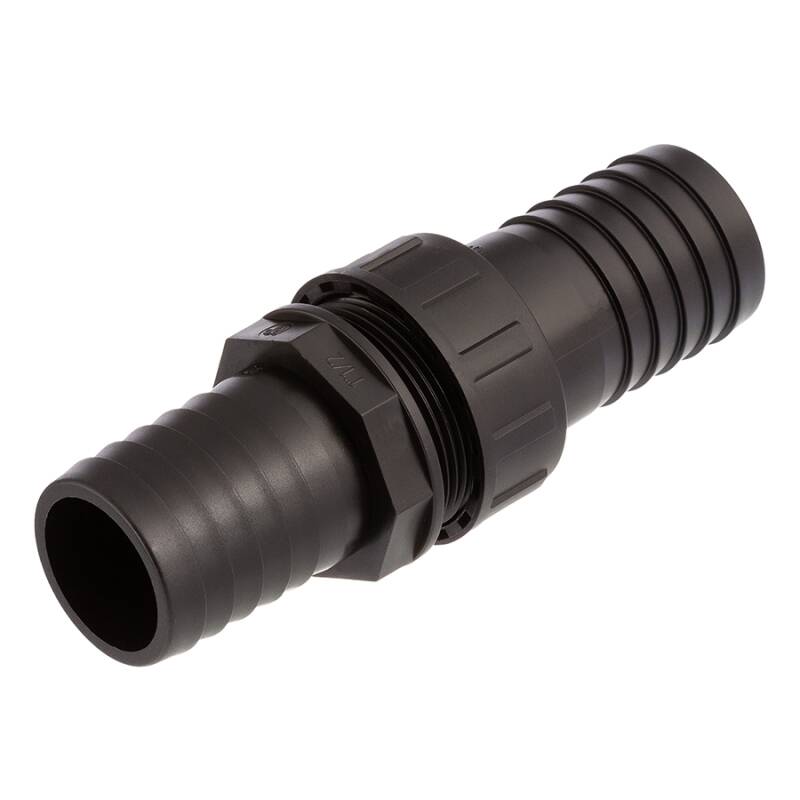

PP union with hose tail
PF0601.040.040
40 x 40mm
40
40
1 1/2" (47,80mm)
156
6
7,27 €*
pc:

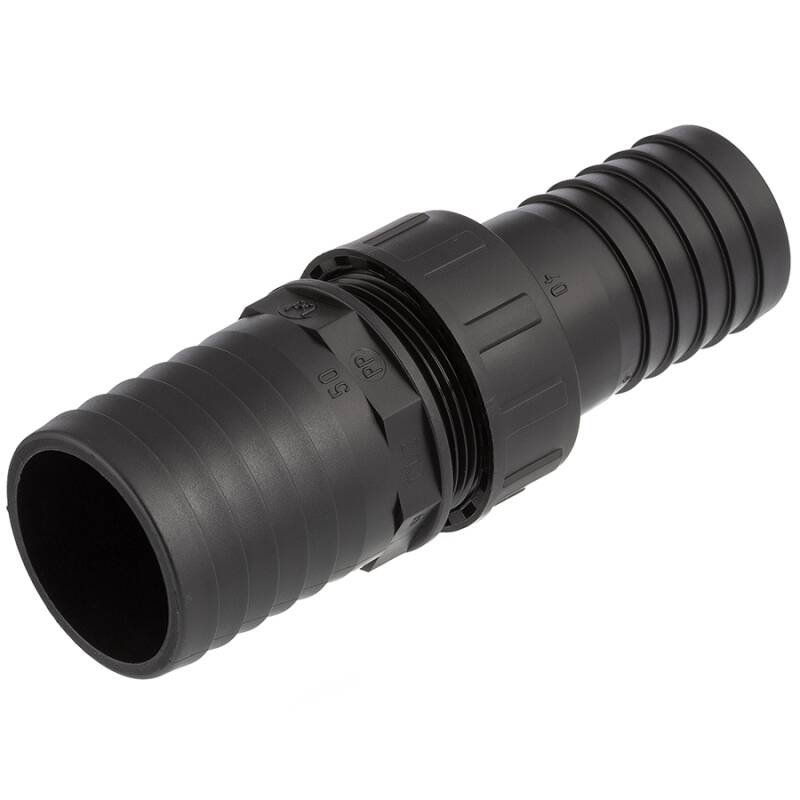

PP union with hose tail
PF0601.040.050
40 x 50mm
40
50
1 1/2" (47,80mm)
155
6
7,69 €*
pc:

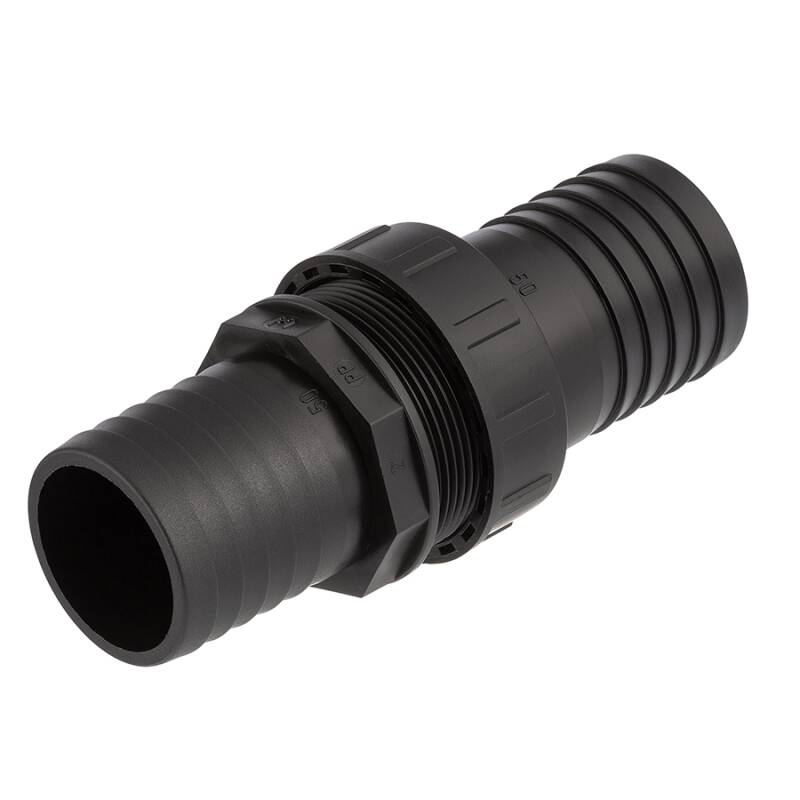

PP union with hose tail
PF0601.050.050
50 x 50mm
50
50
2" (59,61mm)
160
6
10,04 €*
pc:

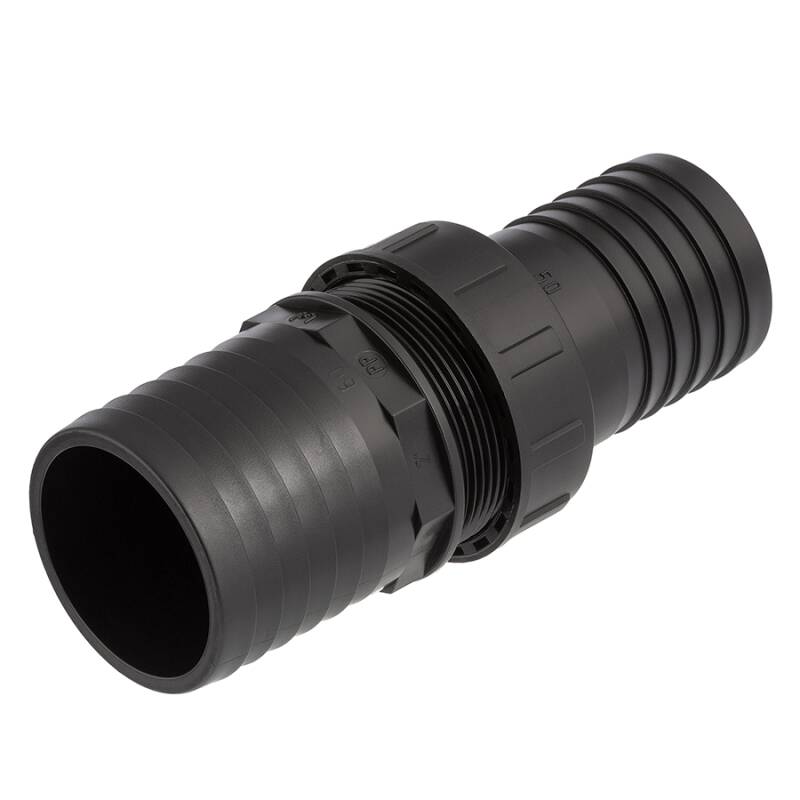

PP union with hose tail
PF0601.050.060
50 x 60mm
50
60
2" (59,61mm)
160
6
12,03 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Verschraubung 2fach Schlauchtülle

Dauerhaft im Freien verwendbar, da Polypropylen UV-beständig ist.

Anschluss:
Verschraubung, 2fach Schlauchtülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen faserverstärkt
Dichtung:
Flachdichtung EPDM
Farbe:
Schwarz ähnl. RAL 9011, Dichtung Farbe: Weiss
Besonderheit:
trennbar ohne Schlauchdemontage
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
