Variants

Product picture
Item no.
Variation
B
C
D
F
G
H
Price
Quantity
PP foot valve with aspiration filter, reinforced female thread 2"
AK0313.000.063
2"
184
352
259
315
2" (59,61mm)
38
158,31 €*
pc.:
PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 2 1/2"
AK0313.000.075
2 1/2"
184
352
259
329
2 1/2" (75,18mm)
33
158,31 €*
pc.:
PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 3"
AK0313.000.090
3"
184
352
259
329
3" (87,88mm)
36
173,85 €*
pc.:
PP Rückschlagklappe Fußventil Saugkorb stehend Innengewinde verstärkt 4"
AK0313.000.110
4"
184
352
259
329
4" (113,03mm)
41
184,45 €*
pc.:

incl. 19% VAT , plus shipping costs

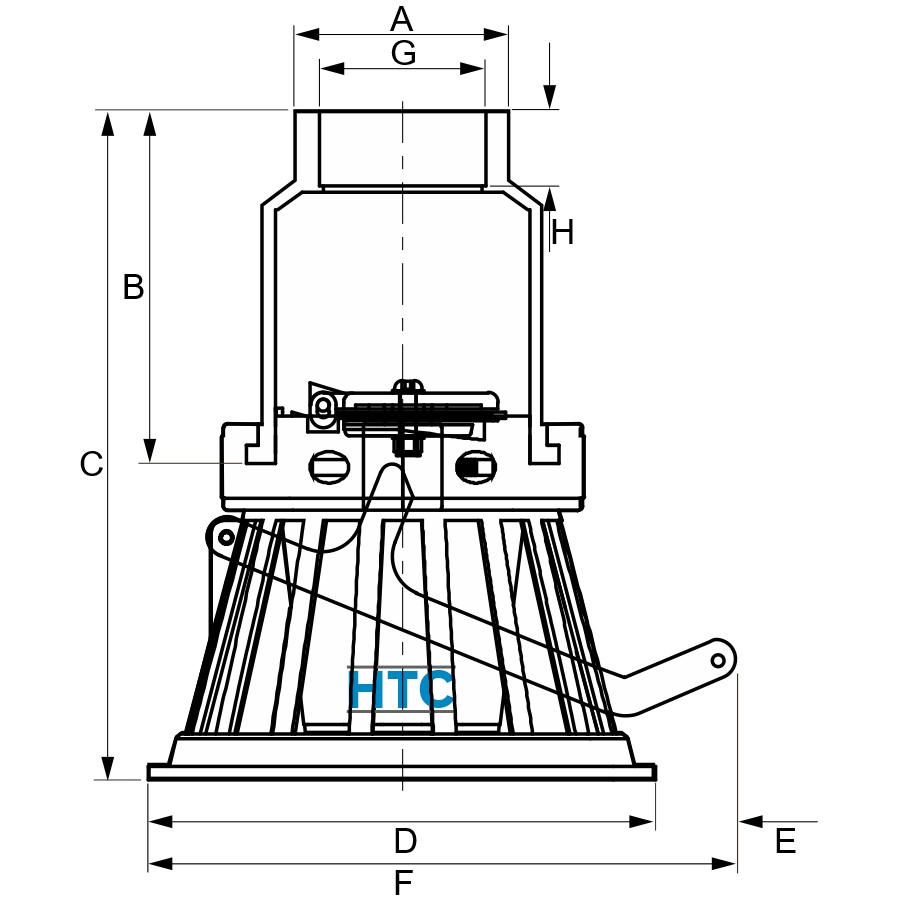

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

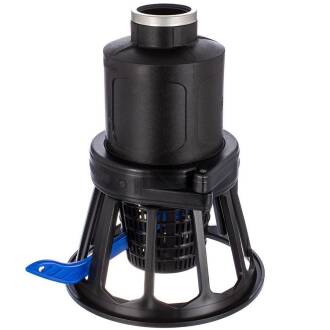

PP Foot valve, internal thread reinforced,

Foot valve, non-return valve, suction strainer, vertical, reinforced internal thread, spring-loaded non-return valve

Connection:
Reinforced female thread V2A ring
Thread:
BSP pipe thread G, not self-sealing, seal with Teflon tape or similar.
Temperature:
up to 45°C constant, 60°C for short periods
Working pressure (PN):
max. 16 bar at 20°C
Installation:
vertical
Material:
PP polypropylene
Color:
Black
AK0313 Querschnitt

Explanation

1. Reinforcement V2A

2. PPFV body

3. PVC-U Closure

4. Springflex double spring

5 EPDM O-ring

6. PP Handle for manual opening

7. PP filter against dirt

8. V2A bolt

9. EPDM seal

10. V2A locking bolt



Attention

Please note: for smooth operation, it is important to avoid dirt collecting in the area of the closing seal and spring. This should be checked and cleaned regularly
