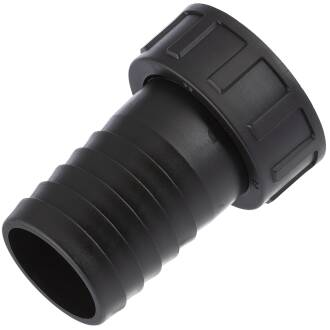

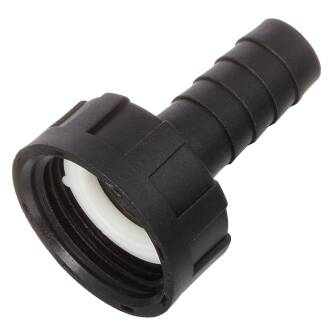

PP hose tail with female thread and nut

from
1,07 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
DN
E
G
H
L(a)
L(1)
Price
Quantity
PP hose tail with female thread and nut
PF0807.012.007
1/4" x 7mm
7
4
20
1/4" (13,16mm)
38
17
8,5
1,76 €*
pc:
PP hose tail with female thread and nut
PF0807.016.009
3/8" x 9mm
9
5
23
3/8" (16,66mm)
47
22
9,5
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.016.010
3/8" x 10mm
10
6
23
3/8" (16,66mm)
45
22
10
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.016.012
3/8" x 12mm
12
7,5
23
3/8" (16,66mm)
47,5
27
9,5
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.020.010
1/2" x 10mm
10
6
28
1/2" (20,96mm)
50
25
10
2,20 €*
pc:
PP hose tail with female thread and nut
PF0807.020.013
1/2" x 13mm
13 (13,5/12,5)
8
27,5
1/2" (20,96mm)
49
26
10
1,07 €*
pc:
PP hose tail with female thread and nut
PF0807.020.016
1/2" x 16mm
16
10
27,5
1/2" (20,96mm)
58,5
30,5
10
1,23 €*
pc:
PP hose tail with female thread and nut
PF0807.025.012
3/4" x 12mm
12
7,5
33
3/4" (26,44mm)
53
25
11
1,32 €*
pc:
PP hose tail with female thread and nut
PF0807.025.013
3/4" x 13mm
13
8,5
33
3/4" (26,44mm)
49,5
25
11,5
1,12 €*
pc:
PP hose tail with female thread and nut
PF0807.025.016
3/4" x 16mm
16
10
33
3/4" (26,44mm)
56,5
30,5
11
1,39 €*
pc:
PP hose tail with female thread and nut
PF0807.025.019
3/4" x 19mm
19 (19,5/18,5)
13
33
3/4" (26,44mm)
55,5
30
8
1,17 €*
pc:
PP hose tail with female thread and nut
PF0807.025.020
3/4" x 20mm
20
13
33
3/4" (26,44mm)
55,5
30,5
11
1,39 €*
pc:
PP hose tail with female thread and nut
PF0807.032.019
1" x 19mm
19
14
40
1" (33,25mm)
60
30
12
1,31 €*
pc:
PP hose tail with female thread and nut
PF0807.032.020
1" x 20mm
20
13
40,5
1" (33,25mm)
57
30,5
11,5
1,63 €*
pc:
PP hose tail with female thread and nut
PF0807.032.025
1" x 25mm
25
19
40,5
1" (33,25mm)
63,5
36
12
1,40 €*
pc:
PP hose tail with female thread and nut
PF0807.040.020
1 1/4" x 20mm
20
13
51
1 1/4" (41,91mm)
61
30,5
12,5
2,07 €*
pc:
PP hose tail with female thread and nut
PF0807.040.025
1 1/4" x 25mm
25
19
51
1 1/4" (41,91mm)
63,5
36
11,5
1,90 €*
pc:
PP hose tail with female thread and nut
PF0807.040.032
1 1/4" x 32mm
32
24
51
1 1/4" (41,91mm)
64,5
36
11,5
1,95 €*
pc:
PP hose tail with female thread and nut
PF0807.050.038
1 1/2" x 38mm
38 (38,5/37,5)
31
58
1 1/2" (47,81mm)
81
43
12
2,07 €*
pc:
PP hose tail with female thread and nut
PF0807.050.040
1 1/2" x 40mm
40
33
57,5
1 1/2" (47,80mm)
82
43
12
2,17 €*
pc:
PP hose tail with female thread and nut
PF0807.063.050
2" x 50mm
50 (50,5/49,5)
41,5
71
2" (59,61mm)
83,5
44
12
2,62 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP-Schlauchtülle Überwurfmutter x Tülle

Anschluss:
Überwurfmutter Innengewinde x Schlauchtülle
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung Tülle über Flachdichtung
Temperatur:
0°C bis 80°C
Arbeitsdruck (PN):
max. 6 bar bei 20°C
Material:
PP Polypropylen faserverstärkt
Dichtung:
Flachdichtung EPDM (lebensmittelecht)
Farbe:
Grau bzw. Schwarz (siehe Einzelbild), Dichtung Farbe Weiss
  • absolut ungiftig, geruchs- und geschmackslos
  • geeignet für den Transport von Trinkwasser, Wein, Getränke und andere nährenden Flüssigkeiten
  • beständig gegenüber anorganischen Salzen in wässrigen Lösungen, schwach organischen Säuren und Laugen, Alkohol und teilweise Ölen
  • sehr gute mechanische Eigenschaften gegenüber Waschchemikalien o.ä
  • schützt als elektrisch isolierendes Material gegen elektrochemische Korrosion und Perforation, welche durch Streuströme verursacht wird
  • Wetter-, Ozon und UV-beständig
DOWNLOAD Polypropylen PP Temperatur-/ Druckdiagramm
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD RoHS Konformitätserklärung - Bucchi s.R.l.
