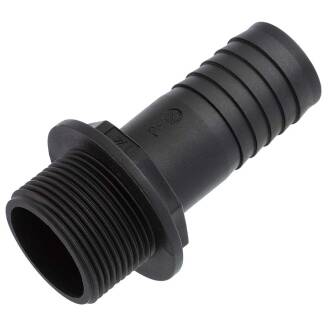

PP hose nozzle, male thread x nozzle, tank direct

from
0,58 €
incl. 19% VAT , plus shipping costs
  • Available immediately
  • Available immediately
   Variants

Item no.
Variation
B
D
DN
G
L
L1
L2
Price
Quantity
PF0801.020.013
1/2" x 13mm
33
13(13,3/12)
8
1/2" (20,96mm)
74,5
19,5
44
0,58 €*
pc:
PF0801.025.020
3/4" x 20mm
42
20(18,5/20,5)
14
3/4" (26,44mm)
80,5
19,5
50
0,74 €*
pc:
PF0801.032.025
1" x 25mm
49,5
25(25,5/14)
18
1" (33,25mm)
92
22,5
57
1,18 €*
pc:
PF0801.032.032
1" x 32mm
46
32 (32,5/30,5)
23,5
1" (33,25mm)
82
24
45
1,23 €*
pc:
PF0801.040.020
1 1/4" x 20mm
55,5
20 (20,3/18,8)
13
1 1/4" (41,91mm)
72
20,5
39
1,46 €*
pc:
PF0801.040.032
1 1/4" x 32mm
57,5
32 (32,5/31)
25,5
1 1/4" (41,91mm)
98,5
24
62
1,86 €*
pc:
PF0801.040.038
1 1/4" x 38mm
55,5
38 (38,3/36,5)
31
1 1/4" (41,91mm)
83
20,5
50
2,12 €*
pc:
PF0801.050.038
1 1/2" x 38mm
61
38 (38,3/36,5)
31
1 1/2" (47,81mm)
83
20,5
49,5
3,28 €*
pc:
PF0801.050.040
1 1/2" x 40mm
61
40 (40,5/38,5)
33
1 1/2" (47,81mm)
83
20,5
49,5
2,84 €*
pc:
PF0801.050.050
1 1/2" x 50mm
60,5
50 (50,5/48,5)
41,5
1 1/2" (47,81mm)
84
20,5
51
3,68 €*
pc:
PF0801.063.050
2" x 50mm
72,5
50(49/51)
39
2" (59,61mm)
112,5
24
74
3,68 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP hose nozzle male thread x nozzle tank direct

Connection:
External thread x nozzle direct to tank
Thread:
BSP pipe thread G, not self-sealing, seal with Teflon tape or similar.
Temperature:
0°C to 80°C
Working pressure (PN):
max. 6 bar at 20°C
Material:
PP polypropylene fiber-reinforced
Color:
Black
  • absolutely non-toxic, odorless and tasteless
  • suitable for transporting drinking water, wine, beverages and other nutritional liquids
  • resistant to inorganic salts in aqueous solutions, weak organic acids and alkalis, alcohol and some oils
  • very good mechanical properties Against washing chemicals or similar
  • protects as an electrically insulating material against electrochemical corrosion and perforation caused by stray currents
  • Weather, ozone and UV resistant
DOWNLOADRoHS confirmation HTC

DOWNLOAD Polypropylene PP Temperature/Pressure Chart
DOWNLOAD The thread identifier – or why 1" is not 25.4 mm
DOWNLOAD Chemical resistance of plastics
