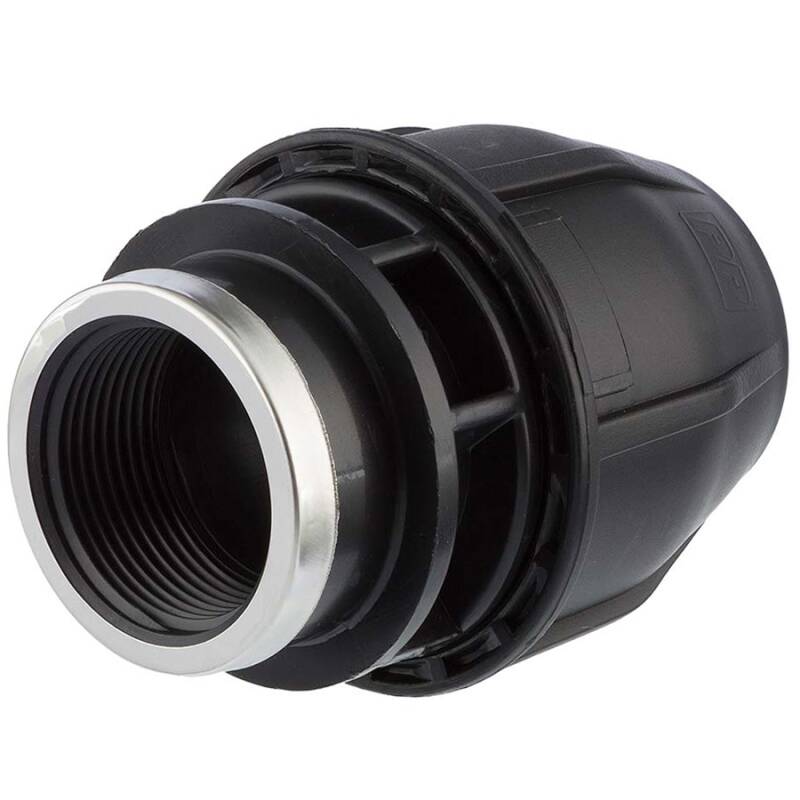

PP compression fitting x female thread

SKU: PZ0102
Auswahl Steuerzone / Lieferland
from
0,60 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
d
E
G
H
L
Pipe O-ø
Price
Quantity
PP compression fitting x female thread 20mm x 1/2"
PZ0102.020.020
20mm x 1/2"
20
46
1/2" (20,96mm)
17
84
20
0,60 €*
pc.:
PP compression fitting x female thread 20mm x 3/4"
PZ0102.020.025
20mm x 3/4"
20
46
3/4" (26,44mm)
20
86
20
0,82 €*
pc.:
PP compression fitting x female thread 20mm x 1"
PZ0102.020.032
20mm x 1"
20
46
1" (33,25mm)
19,5
86
20
0,82 €*
pc.:
PP compression fitting x female thread 25mm x 1/2"
PZ0102.025.020
25mm x 1/2"
25
55
1/2" (20,96mm)
14
85
25
0,99 €*
pc.:
PP compression fitting x female thread 25mm x 3/4"
PZ0102.025.025
25mm x 3/4"
25
55
3/4" (26,44mm)
15
84
25
0,86 €*
pc.:
PP compression fitting x female thread 25mm x 1"
PZ0102.025.032
25mm x 1"
25
55
1" (33,25mm)
21
94
25
0,89 €*
pc.:
PP compression fitting x female thread 32mm x 1/2"
PZ0102.032.020
32mm x 1/2"
32
64
1/2" (20,96mm)
17,5
96
32
1,18 €*
pc.:
PP compression fitting x female thread 32mm x 3/4"
PZ0102.032.025
32mm x 3/4"
32
64
3/4" (26,44mm)
18
93
32
1,13 €*
pc.:
PP compression fitting x female thread 32mm x 1"
PZ0102.032.032
32mm x 1"
32
64
1" (33,25mm)
15
96
32
1,23 €*
pc.:
PP compression fitting x female thread 40mm x 1"
PZ0102.040.032
40mm x 1"
40
78
1" (33,25mm)
23
101
40
2,39 €*
pc.:
PP compression fitting x female thread 40mm x 1 1/4"
PZ0102.040.040
40mm x 1 1/4"
40
78
1 1/4" (41,91mm)
22
101
40
2,44 €*
pc.:
PP compression fitting x female thread 40mm x 1 1/2"
PZ0102.040.050
40mm x 1 1/2"
40
78
1 1/2" (47,81mm)
23
112
40
3,01 €*
pc.:
PP compression fitting x female thread 50mm x 1 1/4"
PZ0102.050.040
50mm x 1 1/4"
50
94
1 1/4" (41,91mm)
25
127
50
4,12 €*
pc.:
PP compression fitting x female thread 50mm x 1 1/2"
PZ0102.050.050
50mm x 1 1/2"
50
94
1 1/2" (47,80mm)
22
130
50
3,67 €*
pc.:
PP compression fitting x female thread 50mm x 2"
PZ0102.050.063
50mm x 2"
50
95
2" (59,61mm)
26
131
50
4,57 €*
pc.:
PP compression fitting x female thread 63mm x 1 1/2"
PZ0102.063.050
63mm x 1 1/2"
63
113
1 1/2" (47,81mm)
21
152
63
6,25 €*
pc.:
PP compression fitting x female thread 63mm x 2"
PZ0102.063.063
63mm x 2"
63
114
2" (59,61mm)
20
163
63
4,89 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Klemmringverschraubung Übergangsmuffe, Klemme x Innengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich und Bewässerung

Anschluss:
Klemme x Innengewinde
Gewinde:
BSP Rohrgewinde, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
EPDM
Metallring:
Eisen vernickelt
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100
PVC Flexschlauch Klebeschlauch

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Brauchwasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Freizeit:

  • preiswerte Verbindung von Flexschlauch Klebeschlauch

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Produkt mit hervorragendem Preis-/Leistungsverhältnis
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
