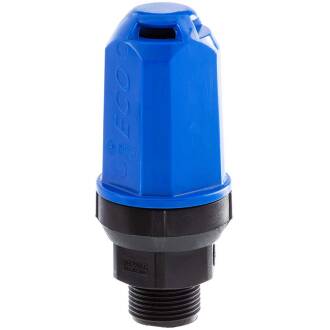

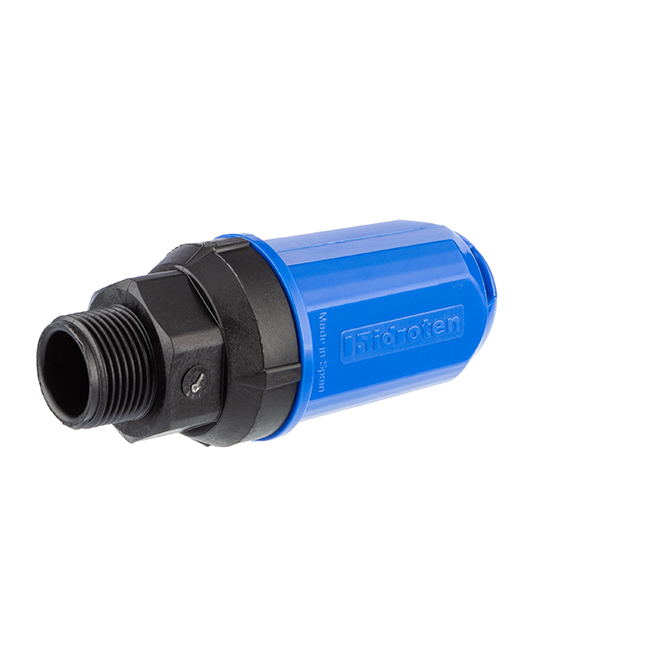

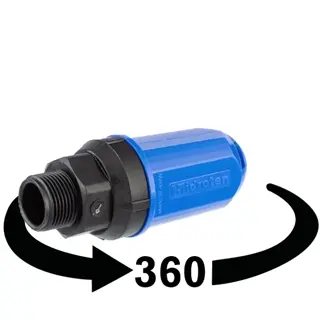

PA automatic air release valve "double effect" ECO

SKU: AK0891
Auswahl Steuerzone / Lieferland
13,34 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
A
B
C
G
Price
Quantity
AK0891.000.025
3/4"
115
49
16
3/4" (26,44mm)
15,17 €*
pc:
AK0891.000.032
1"
121
49
22
1" (33,25mm)
15,17 €*
pc:

incl. 19% VAT , plus shipping costs

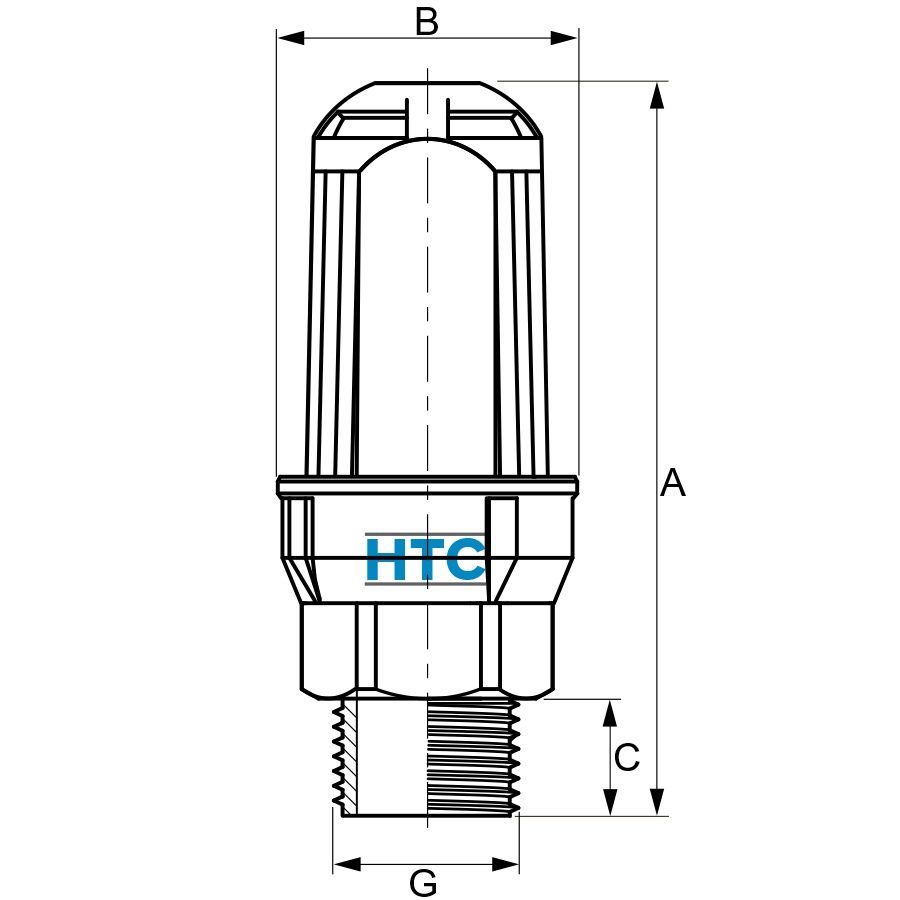

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PA automatischer Schnellentlüfter "double effect" ECO, Innengewinde

Anschluss:
Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PA Polyamid
Farbe:
Schwarz, Oberteil: Blau
AK0321 Querschnitt

Declaration

1. Orifice area

2. EPDM O-Ring

3. PA body

4. PP ball

5 GFPP prefilter

6. EPDM O-Ring

7. PA base

8. BSP thread / NPT



Materials

EPDM = Ethylene-propylene-diene terpolymer

GFPP = Glass-reinforced polypropylene

PA = Polyamide

PP = Polypropylene

automatischer Schnellentlüfter

DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD RoHS Konformitätserklärung - Hidroten
