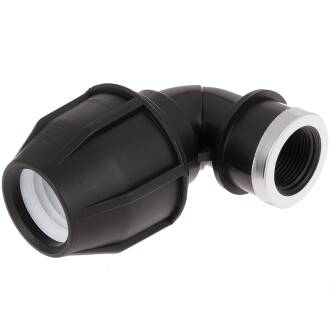

Elbow 90° compression fitting x female thread

SKU: PZ0407
Auswahl Steuerzone / Lieferland
from
0,75 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
d
E
G
H
L
L1
Pipe O-ø
Price
Quantity
Elbow 90° compression fitting x female thread
PZ0407.020.020
20mm x 1/2"
20
45
1/2" (20,96mm)
14
68
38
20
0,75 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.020.025
20mm x 3/4"
20
46
3/4" (26,44mm)
20
68
46
20
0,82 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.025.020
25mm x 1/2"
25
55
1/2" (20,96mm)
14
76
41
25
0,83 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.025.025
25mm x 3/4"
25
55
3/4" (26,44mm)
15
75
42
25
0,88 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.025.032
25mm x 1"
25
55
1" (33,25mm)
20
78
49
25
0,99 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.032.025
32mm x 3/4"
32
63
3/4" (26,44mm)
18
90
54
32
1,24 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.032.032
32mm x 1"
32
62
1" (33,25mm)
18
53
89
32
1,31 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.032.040
32mm x 1 1/4"
32
64
1 1/4" (41,91mm)
24,5
85
58
32
2,09 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.040.025
40mm x 3/4"
40
78
3/4" (26,44mm)
18
105
58
40
2,70 €*
pc.:
Elbow 90° compression fitting x female thread 40mm x 1"
PZ0407.040.032
40mm x 1"
40
77
1" (33,25mm)
27
104
63
40
2,28 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.040.040
40mm x 1 1/4"
40
79
1 1/4" (41,91mm)
20
109
64
40
2,33 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.040.050
40mm x 1 1/2"
40
78
1 1/2" (47,81mm)
23,5
104
61
40
3,43 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.050.040
50mm x 1 1/4"
50
94
1 1/4" (41,91mm)
26
128
78
50
4,83 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.050.050
50mm x 1 1/2"
50
96
1 1/2" (47,80mm)
18
125
71
50
4,26 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.050.063
50mm x 2"
50
94
2" (59,61mm)
26
131
79
50
5,56 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.063.050
63mm x 1 1/2"
63
113
1 1/2" (47,81mm)
26
172
103
63
8,34 €*
pc.:
Elbow 90° compression fitting x female thread
PZ0407.063.063
63mm x 2"
63
113
2" (59,61mm)
21
160
86
63
7,19 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Klemmringverschraubung Übergangswinkel 90° Klemme x Innengewinde

PP Klemmringverschraubung für den universellen Einsatz bei Brauchwasser, Trinkwasser im privaten Bereich und Bewässerung

Anschluss:
Klemme x Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PP Polypropylen
O-Ring:
EPDM
Metallring:
Eisen vernickelt
Farbe:
Schwarz, Überwurfmutter: Schwarz
Verwendung:
Rohre aus PELD, PEHD, PE40, PE80, PE100
PVC Flexschlauch Klebeschlauch

Bewässerung:

  • Landwirtschaft, Gärtnerei & Gartenbau, Weinberge

Besprengung:

  • Wohngebiete, kommunale Bereiche, Sportplätze, Golfplätze, Reitplätze

Industrie:

  • Brauchwasserversorgung, Versorgung mit korrodierenden Flüssigkeiten, Kabelschutz

Qualität:

  • Wetter, UV- und Ozonbeständig, Innengewinde mit Verstärkungsring (außer separat vermerkt)

Preis/Leistung:

  • unser Produkt mit hervorragendem Preis-/Leistungsverhältnis

DOWNLOADRoHS Bestätigung HTC
DOWNLOAD verarbeiten von PP Klemm Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD PP Polypropylen Temperatur-/Druckdiagramm
DOWNLOAD chemische Beständigkeit von Kunststoffen
