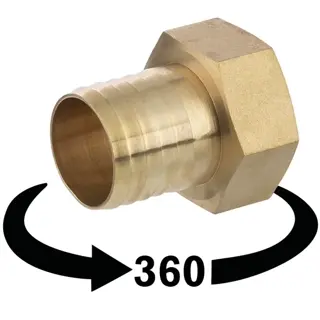

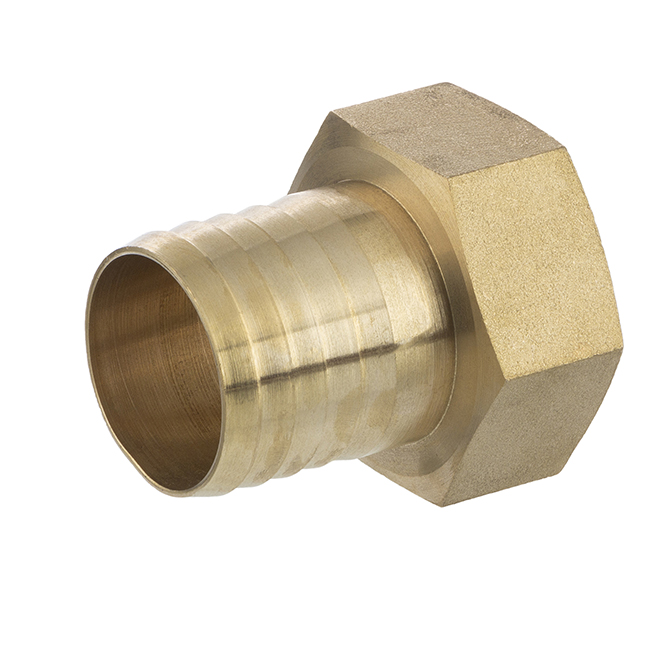

Brass hose tail with male thread

SKU: MF0813
Auswahl Steuerzone / Lieferland
from
1,30 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
D
DN
G
L
L1
L2
SW
Price
Quantity
Brass hose tail with male thread
MF0813.020.010
1/2" x 10mm
10 (10,5/8,5)
7
1/2" (20,96mm)
40
11,5
26
24
1,30 €*
pc:
Brass hose tail with male thread
MF0813.020.013
1/2" x 13mm
13 (14/12)
9,5
1/2" (20,96mm)
40
12
26,5
24
1,50 €*
pc:
Brass hose tail with male thread
MF0813.020.019
1/2" x 19mm
19 (19,5/18)
15
1/2" (20,96mm)
41
12,5
25
24
1,73 €*
pc:
Brass hose tail with male thread
MF0813.025.019
3/4" x 19mm
19 (19,7/17,7)
15,5
3/4" (26,44mm)
41,5
13
26
29
2,01 €*
pc:
Brass hose tail with male thread
MF0813.025.025
3/4" x 25mm
25 (25,7/23,7)
21,5
3/4" (26,44mm)
42,5
13,5
26,5
28
2,50 €*
pc:
Brass hose tail with male thread
MF0813.032.025

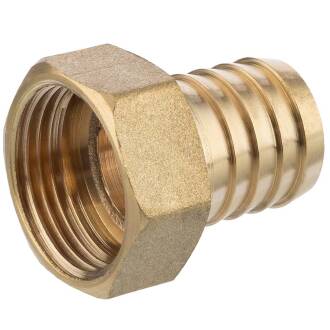

1" x 25mm
25 (25,7/23,7)
21,5
1" (33,25mm)
44
13,5
26,5
36
3,28 €*
pc:
Brass hose tail with male thread
MF0813.032.032
1" x 32mm
32 (32,5/31,5)
28
1" (33,25mm)
45
13,5
28,5
36
4,44 €*
pc:
Brass hose tail with male thread
MF0813.040.032

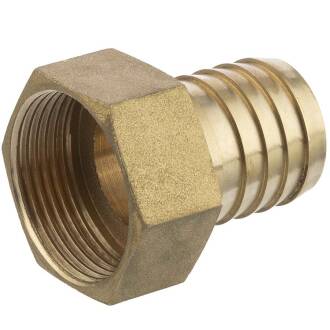

1 1/4" x 32mm
32 (32,5/30,5)
28
1 1/4" (41,91mm)
56
17
34
44,5
5,81 €*
pc:
Brass hose tail with male thread
MF0813.040.038
1 1/4" x 38mm
38 (38,5/36,5)
34
1 1/4" (41,91mm)
56,5
17,5
34
44,5
6,38 €*
pc:
Brass hose tail with male thread
MF0813.050.038
1 1/2" x 38mm
38 (38,5/36,5)
34
1 1/2" (47,81mm)
62
19
38
52
6,93 €*
pc:
Brass hose tail with male thread
MF0813.050.050
1 1/2" x 50mm
50 (51/49)
45
1 1/2" (47,81mm)
62
18,5
38
52
9,46 €*
pc:

incl. 19% VAT , plus shipping costs

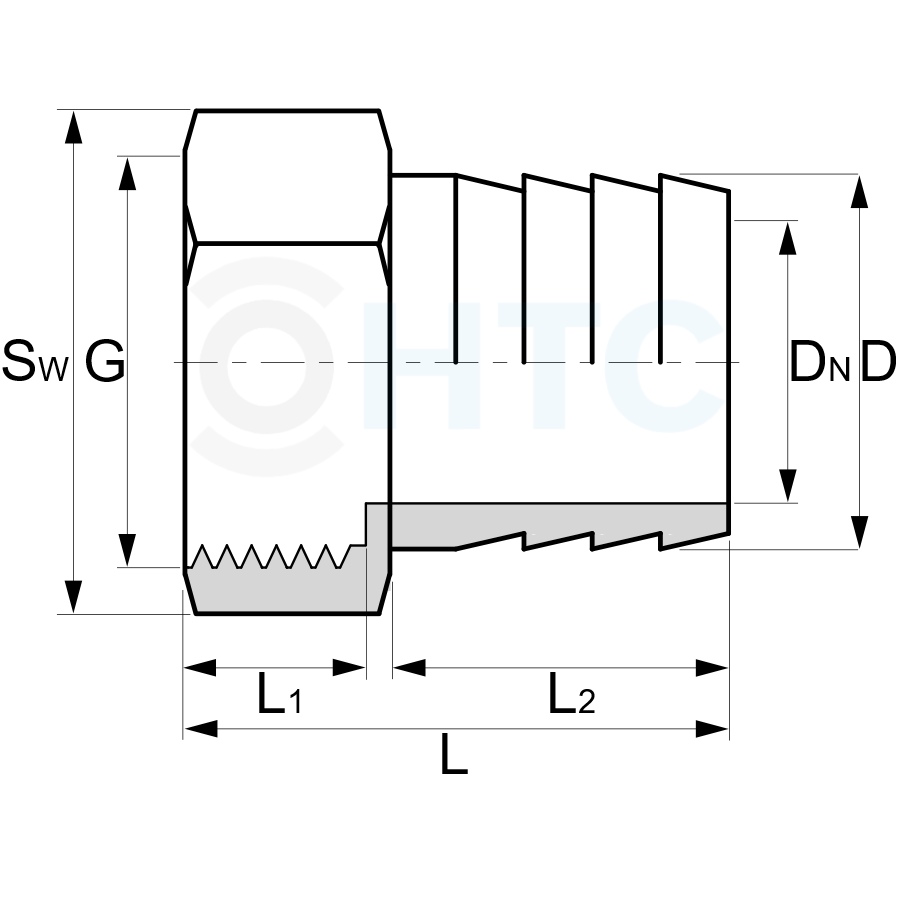

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

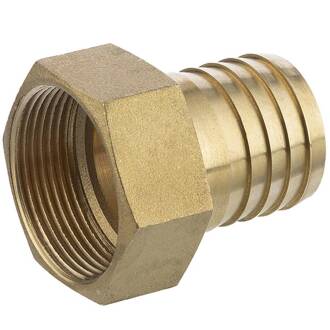

Messing Schlauchtülle, Innengewinde x Schlauchtülle

Anschluss:
Innengewinde (feststehend) x Schlauchtülle
Material:
Messing CW614N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
