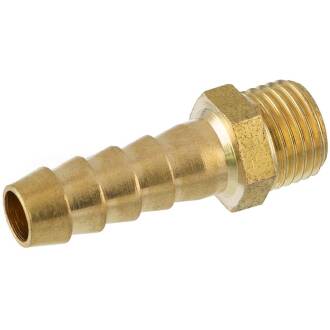

Brass hose tail with male thread

SKU: MF0802
Auswahl Steuerzone / Lieferland
from
0,67 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
DN
G
L
L1
L2
SW
Price
Quantity
MF0802.009.004
1/8" x 4mm
4  (3/2)
2
1/8" (9,73mm)
35
8
19,5
11
0,67 €*
pc:
MF0802.009.006
1/8" x 6mm
6  (5,5/3,5)
3,5
1/8" (9,73mm)
35
8
19,5
11
0,67 €*
pc:
MF0802.009.008
1/8" x 8mm
8  (7/4,5)
4,3
1/8" (9,73mm)
37
8,5
21
10
0,67 €*
pc:
MF0802.009.009
1/8" x 9mm
9  (9,5/8)
6
1/8" (9,73mm)
35
8,5
20,5
10
0,67 €*
pc:
MF0802.012.004
1/4" x 4mm
4  (4,5/3,5)
2
1/4" (13,16mm)
40,5
7
26
14
0,81 €*
pc:
MF0802.012.006
1/4" x 6mm
6  (6/4,5)
3,6
1/4" (13,16mm)
40,5
7
27
14
0,81 €*
pc:
MF0802.012.008
1/4" x 8mm
8  (8,5/7)
5,8
1/4" (13,16mm)
41
7
27
14
0,95 €*
pc:
MF0802.012.009
1/4" x 9mm
9  (9,5/8,5)
7,4
1/4" (13,16mm)
40,5
7,5
26,5
14
0,95 €*
pc:
MF0802.012.010
1/4" x 10mm
10  (9,5/7)
7
1/4" (13,16mm)
36
9
20
17
0,95 €*
pc:
MF0802.012.012
1/4" x 12mm
12  (12/10)
8,5
1/4" (13,16mm)
41
11
25
15
1,09 €*
pc:
MF0802.016.010
3/8" x 10mm
10 (10/8,3)
6
3/8" (16,66mm)
39
9
24
17
1,13 €*
pc:
MF0802.016.013
3/8" x 13mm
13  (13/12)
8
3/8" (16,66mm)
42
10
27,5
17
1,14 €*
pc:
MF0802.020.010
1/2" x 10mm
10  (10,5/9,5)
7
1/2" (20,96mm)
41
11
26
21
1,24 €*
pc:
MF0802.020.013
1/2" x 13mm
13  (13/12)
9
1/2" (20,96mm)
41,5
9
25
21
1,24 €*
MF0802.020.016
1/2" x 16mm
16  (16,5/15,5)
13
1/2" (20,96mm)
43
11
27
21
1,31 €*
pc:
MF0802.020.019
1/2" x 19mm
19  (19/17,5)
15
1/2" (20,95mm)
42
11
26
22
1,34 €*
pc:
MF0802.020.020
1/2" x 20mm
20  (20,5/19,5)
16,5
1/2" (20,95mm)
42
11
25,5
22
1,34 €*
pc:
MF0802.025.013
3/4" x 13mm
13  (14/13)
9,5
3/4" (26,44mm)
42,5
10
27
32
1,61 €*
pc:
MF0802.025.016
3/4" x 16mm
16  (16/15)
12,5
3/4" (26,44mm)
48
11
30
17
1,65 €*
pc:
MF0802.025.019
3/4" x 19mm
19  (19/18)
15
3/4" (26,44mm)
46
11,5
26
27
1,71 €*
pc:
MF0802.025.020
3/4" x 20mm
20  (20,5/18)
15,5
3/4" (26,44mm)
48,5
14
29
27
1,76 €*
pc:
MF0802.025.025
3/4" x 25mm
25  (25/24)
20
3/4" (26,44mm)
44
11
30
27
2,13 €*
pc:
MF0802.032.019
1" x 19mm
19  (19/17,5)
15
1" (33,25mm)
48,5
14
29
35
2,48 €*
pc:
MF0802.032.020
1" x 20mm
20  (20/19,5)
16,5
1" (33,25mm)
55
13
32
28
2,51 €*
pc:
MF0802.032.025
1" x 25mm
25  (26/24,5)
21,5
1" (33,25mm)
54
12
33
30
2,82 €*
pc:
MF0802.032.032
1" x 32mm
32  (32/31)
28
1" (33,25mm)
58
13
36
34
3,08 €*
pc:
MF0802.040.025
1 1/4" x 25mm
25  (25,5/24)
21
1 1/4" (41,91mm)
68
15
41
38
4,53 €*
pc:
MF0802.040.032
1 1/4" x 32mm
32  (32,5/31)
28
1 1/4" (41,91mm)
65
13
40
34
5,36 €*
pc:
MF0802.040.038
1 1/4" x 38mm
38 (39,5/38)
33
1 1/4" (41,91mm)
59
15
37
45,5
5,55 €*
pc:
MF0802.040.040
1 1/4" x 40mm
40  (40/38,5)
35
1 1/4" (41,91mm)
59
13
36
45
5,55 €*
pc:
MF0802.050.032
1 1/2" x 32mm
32  (32,5/31)
28
1 1/2" (47,80mm)
76
14
43
35
5,68 €*
pc:
MF0802.050.038
1 1/2" x 38mm
38  (38/36,5)
33
1 1/2" (47,80mm)
64
17
40
51
6,78 €*
pc:
MF0802.050.040
1 1/2" x 40mm
40  (40/39)
34,5
1 1/2" (47,81mm)
63
17
39,5
51
6,85 €*
pc:
MF0802.050.050
1 1/2" x 50mm
50  (50/48)
44
1 1/2" (47,80mm)
63
17
40
52
7,91 €*
MF0802.063.050
2" x 50mm
50 (51/49)
46
2" (59,61mm)
72
13
45
52
8,12 €*
pc:
MF0802.063.060
2" x 60mm
60  (61/59)
51
2" (59,61mm)
76
16
49
63
14,36 €*
MF0802.063.063
2" x 63mm
63  (63/61)
50
2" (59,61mm)
68
17
43
65
21,90 €*
pc:
MF0802.075.063
2 1/2" x 63mm
63  (63/61)
56
2 1/2" (75,18mm)
92
23
62
82
25,93 €*
pc:
MF0802.075.076
2 1/2" x 76mm
76  (76/73)
69
2 1/2" (75,18mm)
104
25
68
83
28,80 €*
pc:
MF0802.090.076
3" x 76mm
76  (76/73)
69
3" (87,88mm)
106
25
71
91
29,88 €*
pc:
MF0802.090.090
3" x 90mm
90  (90/86)
75
3" (87,88mm)
106
25
69
94
36,49 €*
pc:
MF0802.110.102
4" x 102mm
102  (102/98)
93
4" (113,03mm)
107
25,5
69
121
46,08 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Messing Schlauchtülle, Aussengewinde x Schlauchtülle

Anschluss:
Aussengewinde x Schlauchtülle
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228-1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
