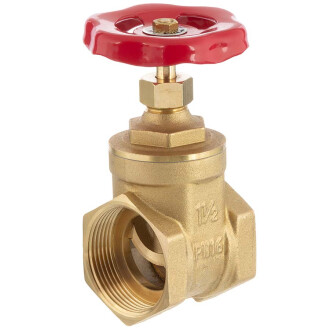

Brass female threaded gate valve

SKU: MA0016
Auswahl Steuerzone / Lieferland
from
4,70 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
DN
G
h
H
L
t
PN
Price
Quantity
MA0016.000.020
1/2"
13
1/2" (20,96mm)
63,5
77
37
12
16
4,70 €*
pc.:
MA0016.000.025
3/4"
15
3/4" (26,44mm)
68
84
43
11
16
6,03 €*
pc.:
MA0016.000.032
1"
19,5
1" (33,25mm)
73
93
45
11,5
16
8,10 €*
pc.:
MA0016.000.040
1 1/4"
27
1 1/4" (41,91mm)
89,5
115,5
48,5
11,5
16
11,85 €*
pc.:
MA0016.000.050
1 1/2"
33
1 1/2" (47,81mm)
99
129
54
13
16
18,45 €*
pc.:
MA0016.000.063
2"
42
2" (59,61mm)
157
160,5
63
16
16
28,56 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Muffenschieber 2fach Innengewinde

Anschluss:
2fach Innengewinde
Material:
Messing CW617N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228/1
Spindeldichtung:
EPDM
Schieberdichtung:
metallisch
Handrad:
Stahl lackiert, Farbe Rot
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Temperatur:
-20°C bis 80°C
Arbeitsdruck (PN):
16 bar bei 20°C | 8 bar bei 80°C Medium Wasser
HTC MA0016 Zeichnung Material
 Nummer
 Bezeichnung  Material
 1
  Schließmutter  FE (messingbeschichtet)
 2
  Unterlegscheibe  AL
 3
  Handrad  FE lackiert
 4
  Welle  CW614N
 5
  Wellenring  CW614N*
 6
  Dichtungsring  PTFE (Teflon)
 7
  Dichtungsmutter  CW614N
 8
  O-Ring  NBR
 9
  Haube  CW614N
 10
  Dichtung  PTFE (Teflon)
 11
  Schieber  CW614N
 11
  Körper  CW614N
* Version 1/2" - 1": Wellendichtung ohne Wellenring aus Messing, anstelle 2fach O-Ring aus NBR (Teil 5 + 8)
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
