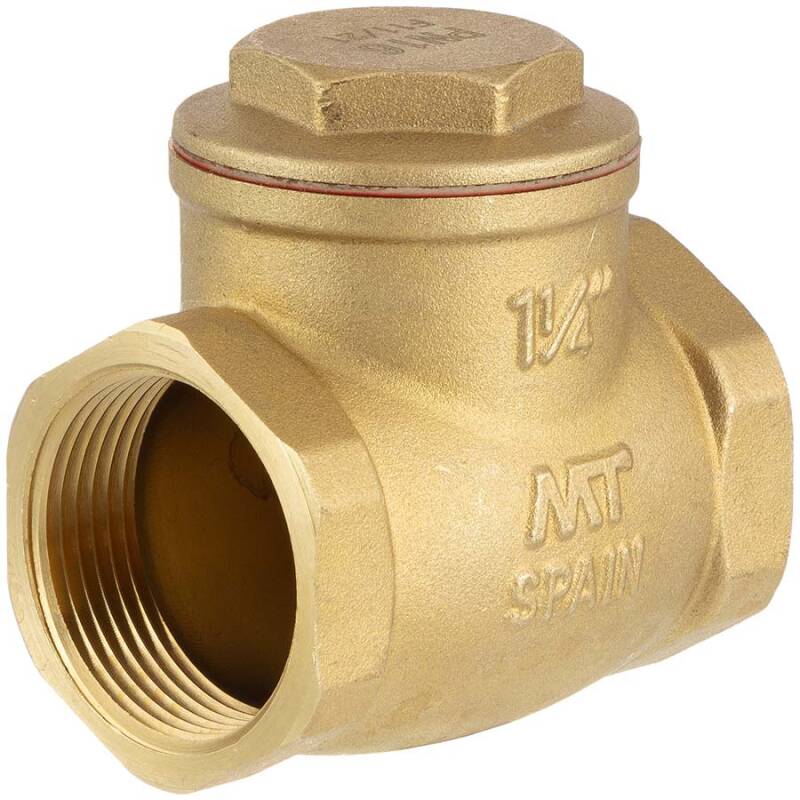

Brass female threaded check valve

SKU: MA0014
Auswahl Steuerzone / Lieferland
from
5,63 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
C
DN
H
L
T1
T2
Price
Quantity
MA0014.000.020
1/2"
22
13,5
33,5
48
11,5
11,5
5,63 €*
pc:
MA0014.000.025
3/4"
26
20
40
52
10
10
9,06 €*
pc:
MA0014.000.032
1"
27
24
44,5
63
13
12
12,19 €*
pc:
MA0014.000.040
1 1/4"
34
32
52
74
15
14
18,73 €*
pc:
MA0014.000.050
1 1/2"
40
38
64
86
16
14
24,89 €*
pc:
MA0014.000.063
2"
49
47
67
98
16
16
38,18 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Rückschlagklappe, 2fach Innengewinde

Anschluss:
2fach Innengewinde
Gewinde:
BSP Rohrgewinde ISO 228/1
Einsatzgebiet:
geeignet für Kalt- und Warmwasser
Temperatur:
0°C bis 70°C
Arbeitsdruck (PN):
12 bar
Rückschlagklappe
Nr.
Teil
Material
1
Körper
Messing
2
Gegenstück
Messing
3
Klappe
Messing
4
U-Scheibe
Faserstoff
5
Dichtung
NBR
6
Dichtung
V2A
7
Schraube
Messing
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
