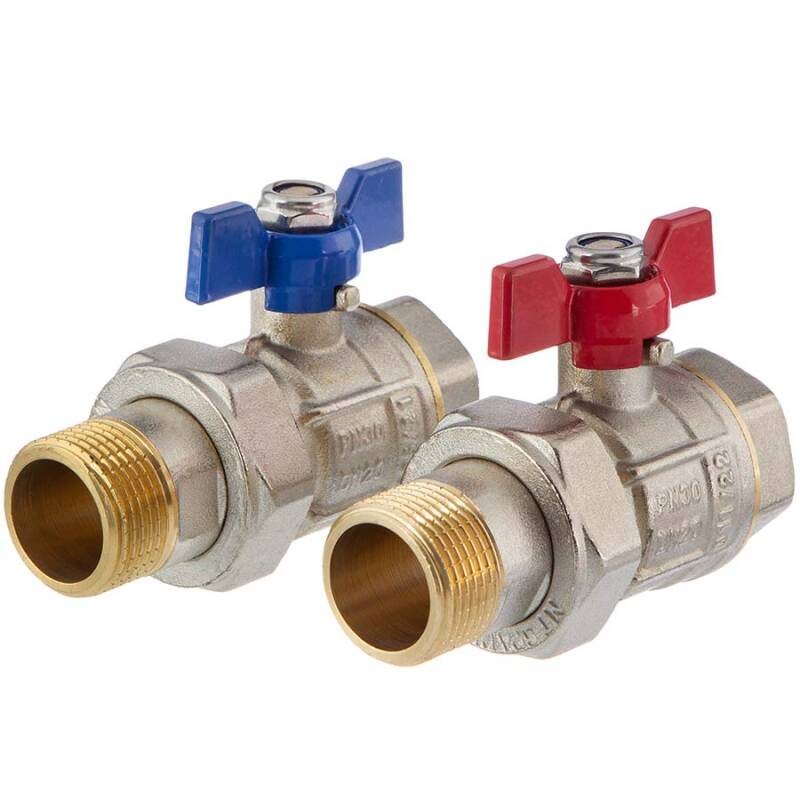

Brass female/male threaded butterfly valve with union

SKU: MA0007
Auswahl Steuerzone / Lieferland
from
10,63 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
DN
G
H
L
Price
Quantity
Brass female/male threaded butterfly valve with union 1/2"
MA0007.020.B20
1/2"
54
13,5
1/2" (20,96mm)
39
84,5
10,63 €*
pc:
Brass female/male threaded butterfly valve with union 3/4"
MA0007.025.B25
3/4"
54
19
3/4" (26,44mm)
42,5
90,5
12,89 €*
pc:
Brass female/male threaded butterfly valve with union 1"
MA0007.032.B32
1"
68
24
1" (33,25mm)
53
93
18,80 €*
pc:
Brass female/male threaded butterfly valve with union 1/2", Handle Red
MARED7.020.020
1/2"
54
13,5
1/2" (20,96mm)
39
84,5
10,63 €*
pc:
Brass female/male threaded butterfly valve with union 3/4", Handle Red
MA0007.025.R25
3/4"
54
19
3/4" (26,44mm)
42,5
90,5
12,89 €*
pc:
Brass female/male threaded butterfly valve with union 1", Handle Red
MARED7.032.032
1"
68
24
1" (33,25mm)
53
93
18,80 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Kugelhahn Flügelgriff mit Verschraubung, Innen x Aussengewinde

Anschluss:
Innen x Aussengewinde
Material:
Messing CW61N (für Trinkwasserleitungen verwendbar)
Gewinde:
BSP Rohrgewinde ISO 228/1, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Einsatzgebiet:
geeignet für Druckluft, Kalt- und Warmwasser
Temperatur:
-20°C bis 150°C
Arbeitsdruck (PN):
PN 30 bar bei 20°C, Medium Wasser | 25 bar bei 80°C | 10 bar bei 150°
Kugelsitz:
PTFE
Griff:
Aluminium
  • geeignet für Druckluft, Kalt- und Warmwasser
  • 80°C max. 25 bar
  • 150°C max. 10 bar
  • min. Temperatur -20°C
  • Gewinde gemäß ISO 228/1 (DIN 259)
  • Kugelsitz PTFE
  • Griff Aluminium
DOWNLOADRoHS Bestätigung HTC
DOWNLOADREACH Zusatz Messing HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
