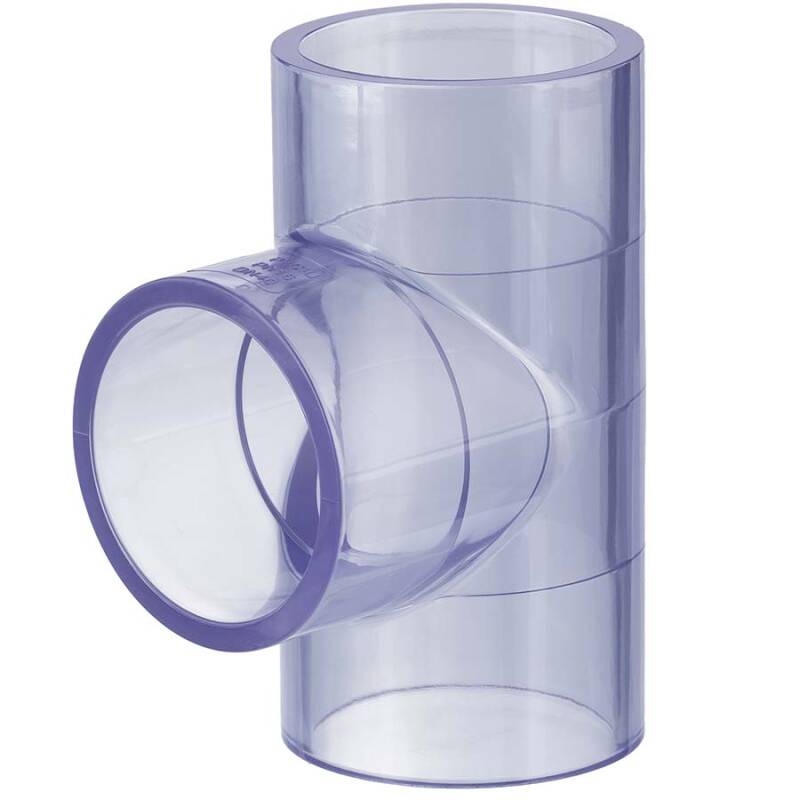

U-PVC trasparent solvent tee 90°

SKU: AT0502
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent
from
1,25 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
D1
L
L1
Weight
Price
Quantity
AT0502.000.020
20mm
41
20
27
55,5
16
24
1,25 €*
pc:
AT0502.000.025
25mm
50
25
33
68
20
42
1,87 €*
pc:
AT0502.000.032
32mm
61
32
41
79
22
70
3,22 €*
pc:
AT0502.000.040
40mm
73
40
49
95,5
23
106
5,46 €*
pc:
AT0502.000.050
50mm
93,5
50
60
127
36
192
8,79 €*
pc:
AT0502.000.063
63mm
108
63
76
140,5
37
323
14,72 €*
pc:
AT0502.000.075
75mm
128
75
90,5
166
44
551
23,36 €*
AT0502.000.090
90mm
152
90
108
196
51
876
35,44 €*
AT0502.000.110
110mm
182
110
130
232
60
1412
59,36 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Winkel 90° Transparent, 3fach Klebemuffe

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
3fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Transparent Bläulich
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
