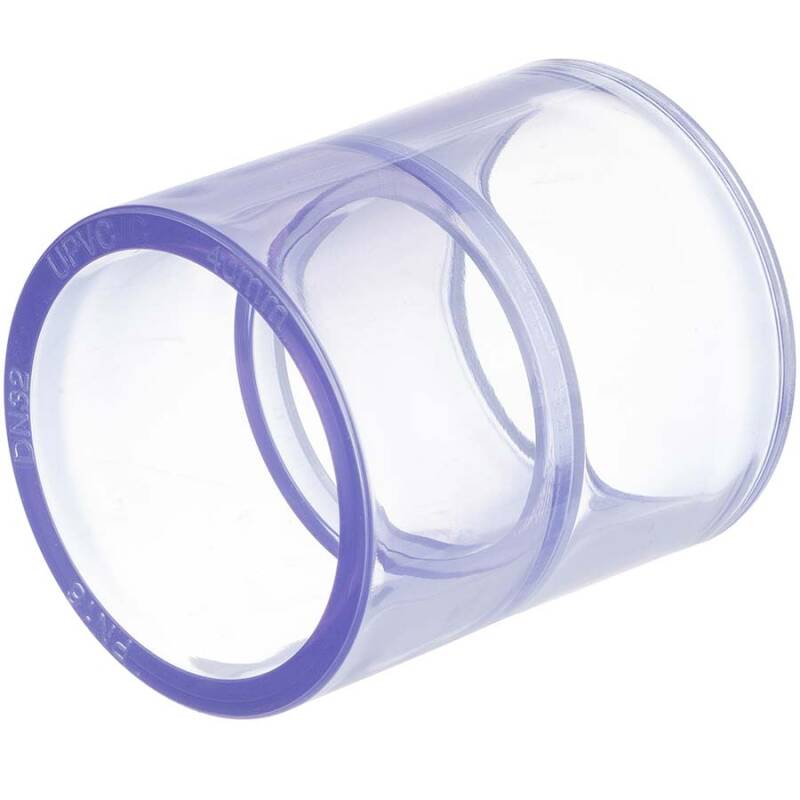

U-PVC trasparent solvent socket

SKU: AT0101
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent
from
0,82 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
L
L1
Price
Quantity
AT0101.000.020
20mm
20
27,5
36
16
0,82 €*
pc:
AT0101.000.025
25mm
25
32
44
20
1,05 €*
pc:
AT0101.000.032
32mm
32
40
52
24
1,65 €*
pc:
AT0101.000.040
40mm
40
49
56
26,5
2,77 €*
pc:
AT0101.000.050
50mm
50
60
76
36
4,72 €*
pc:
AT0101.000.063
63mm
63
76
82
38
7,47 €*
pc:
AT0101.000.075
75mm
75
90,5
97
46
11,08 €*
pc:
AT0101.000.090
90mm
90
107
106
51
16,68 €*
pc:
AT0101.000.110
110mm
110
133
126
60
30,71 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Klebemuffe Transparent

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Transparent Bläulich
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
