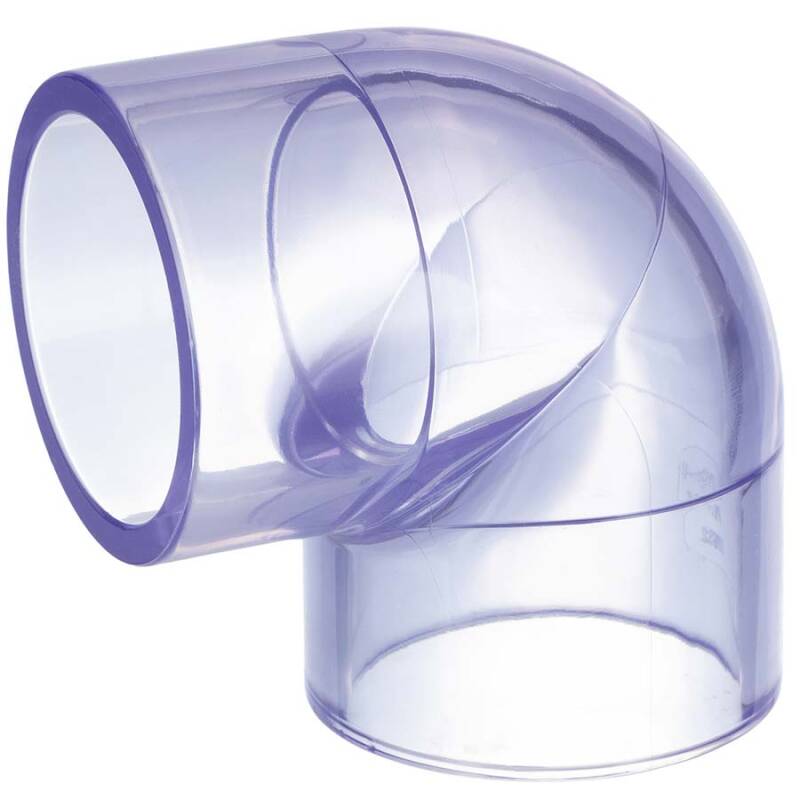

U-PVC trasparent solvent elbow 90°

SKU: AT0403
Auswahl Steuerzone / Lieferland
Choose the variation
Transparent
from
0,89 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
L
L1
Price
Quantity
AT0403.000.020
20mm
20
27
41,5
16
0,89 €*
pc:
AT0403.000.025
25mm
25
32
50
19
1,37 €*
pc:
AT0403.000.032
32mm
32
40
60,5
22
2,37 €*
pc:
AT0403.000.040
40mm
40
48
73
28
3,68 €*
pc:
AT0403.000.050
50mm
50
61
88
32
7,01 €*
pc:
AT0403.000.063
63mm
63
76
113
40
9,98 €*
pc:
AT0403.000.075
75mm
75
88
127
44
17,84 €*
pc:
AT0403.000.090
90mm
90
107
147
49
27,00 €*
pc:
AT0403.000.110
110mm
110
132,5
185
60
44,61 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Winkel 90° Transparent, 2fach Klebemuffe

PVC-U Fittings und Rohr Transparent sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Transparent Bläulich
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
