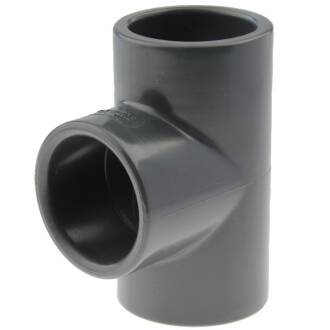

U-PVC solvent tee 90°

SKU: AF0502
Auswahl Steuerzone / Lieferland
from
0,18 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
B
D
D1
L
L1
PN
Price
Quantity
AF0502.000.012
12mm
30
12
18
38
12
16
0,18 €*
pc.:
AF0502.000.016
16mm
35
16
21
50
14
16
0,50 €*
pc.:
AF0502.000.020
20mm
45
20
27
58
18
25
0,38 €*
pc.:
AF0502.000.025
25mm
53
25
32,5
62
20
16
0,46 €*
pc.:
AF0502.000.032
32mm
63
32
40,5
80
23
16
0,68 €*
pc.:
AF0502.000.040
40mm
75
40
49
94
26
16
1,05 €*
pc.:
AF0502.000.050
50mm
87
50
60
114
31,5
16
1,34 €*
pc:
AF0502.000.063
63mm
112
63
74
140
38
16
2,38 €*
pc.:
AF0502.000.075
75mm
133
75
89
166
44
16
3,74 €*
pc.:
AF0502.000.090
90mm
160
90
109
196
51
16
5,80 €*
pc.:
AF0502.000.110
110mm
192
110
131
228
61
16
9,67 €*
pc.:
AF0502.000.125
125mm
217
125
148
268
69
16
17,03 €*
pc.:
AF0502.000.160
160mm
266
160
180
354
86
10
36,13 €*
pc.:
AF0502.000.200
200mm
329
200
223
414
106
10
56,35 €*
pc.:
AF0502.000.280
280mm
465
280
319
580
146
10
101,15 €*
pc:
AF0502.000.315
315mm
524
315
360
326
164
10
107,10 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U T-Stück 90°, 3fach Klebemuffe

Anschluss:
3fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser bzw. max. 10 bar ab 160mm bei 20 °C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
