Variants

Item no.
Variation
B
D
D1
H
L2
Weight
Price
Quantity
AL0501.000.020
20mm
20
24
61
16
22
1,13 €*
pc:
AL0501.000.025
25mm
25
30
75
18
34
1,37 €*
pc:
AL0501.000.032
32mm
32
36
85
20
43
1,86 €*
pc:
AL0501.000.040
40mm
40
45
113
28
84
2,30 €*
pc:
AL0501.000.050
50mm
50
56
132
29
156
2,61 €*
pc:
AL0501.000.063
63mm
63
70
170
38
238
4,30 €*
pc:
AL0501.000.075
75mm
75
82
198
44
330
6,19 €*
pc:
AL0501.000.090
90mm
90
98
233
51
511
6,83 €*
pc:
AL0501.000.110
110mm
110
119
281
61
964
13,49 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

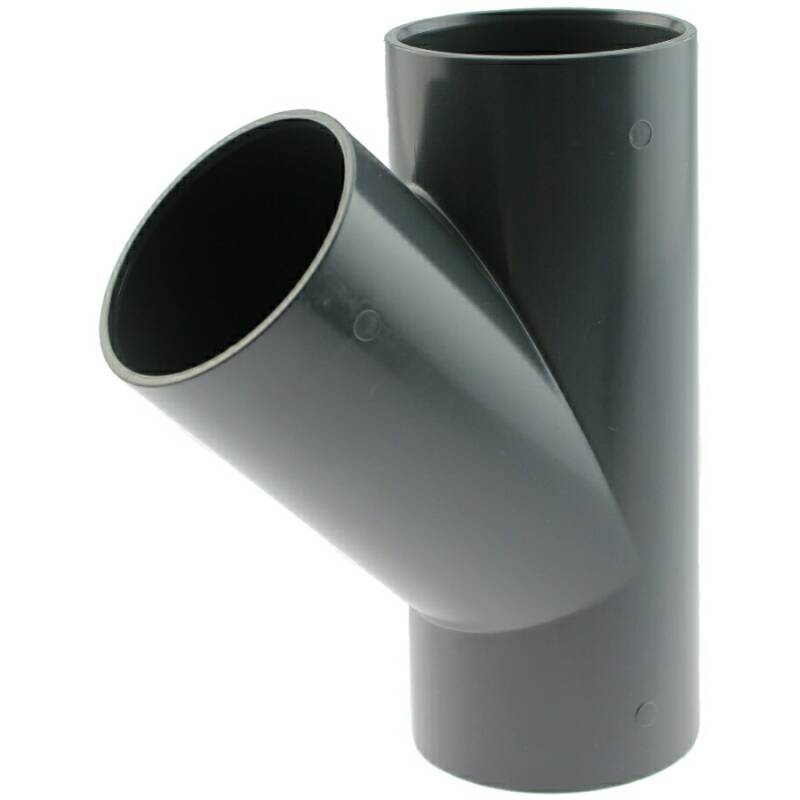

PVC-U T-Stück 45°, 3fach Klebemuffe ECO

Anschluss:
3fach Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
