Variants

Item no.
Variation
B
D
D1
H
L
PN
Price
Quantity
AF0501.000.012
12mm
34
12
18
44
12
16
5,43 €*
pc.:
AF0501.000.016
16mm
48
16
22
59
15
16
2,17 €*
pc.:
AF0501.000.020
20mm
55
20
27
68
16
16
2,17 €*
pc.:
AF0501.000.025
25mm
67
25
33
81
19
16
2,51 €*
pc.:
AF0501.000.032
32mm
82
32
41
96
22
16
3,01 €*
pc.:
AF0501.000.040
40mm
99
40
50
116
26
16
3,40 €*
pc.:
AF0501.000.050
50mm
122
50
60
147,5
31,5
16
3,56 €*
pc.:
AF0501.000.063
63mm
150
63
76
174
38
10
6,91 €*
pc.:
AF0501.000.075
75mm
170
75
87
210
45
10
17,80 €*
pc.:
AF0501.000.090
90mm
211
90
108
243
51
10
29,13 €*
pc.:
AF0501.000.110
110mm
258
110
131
294,5
61,5
10
57,55 €*
pc.:
AF0501.000.125
125mm
292
125
148
337
69
10
96,44 €*
pc.:
AF0501.000.160
160mm
368
160
182
429
86
10
131,64 €*
pc.:
AF0501.000.200
200mm
165
200
226
529
106
10
196,40 €*

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

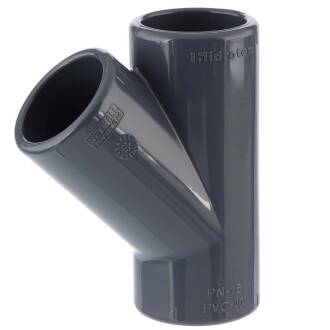

PVC-U T-Stück 45°, 3fach Klebemuffe

Anschluss:
3fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser bzw. max. 10 bar ab 63mm
Material:
PVC-U
Farbe:
Grau
DOWNLOAD RoHS Konformitätserklärung - HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
