Variants

Item no.
Variation
B
D
D1
d
d1
H
Weight
Price
Quantity
AF0518.075.025
75 x 2fach 25mm
121
87
34
75
25
122
273
8,32 €*
pc:
AF0518.160.063
160 x 2fach 63mm
241
180
76
160
63
225
1768
72,17 €*
AF0518.160.110
260 x 2fach 110mm
288
180
125
160
110
292
2452
90,25 €*
pc:
A-518-200.110
200 x 2fach 110mm
325
222
125
200
110
330
3640
114,30 €*
pc:
A-518-225.110
225 x 2fach 110mm
353
250
125
225
110
315
4440
64,90 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

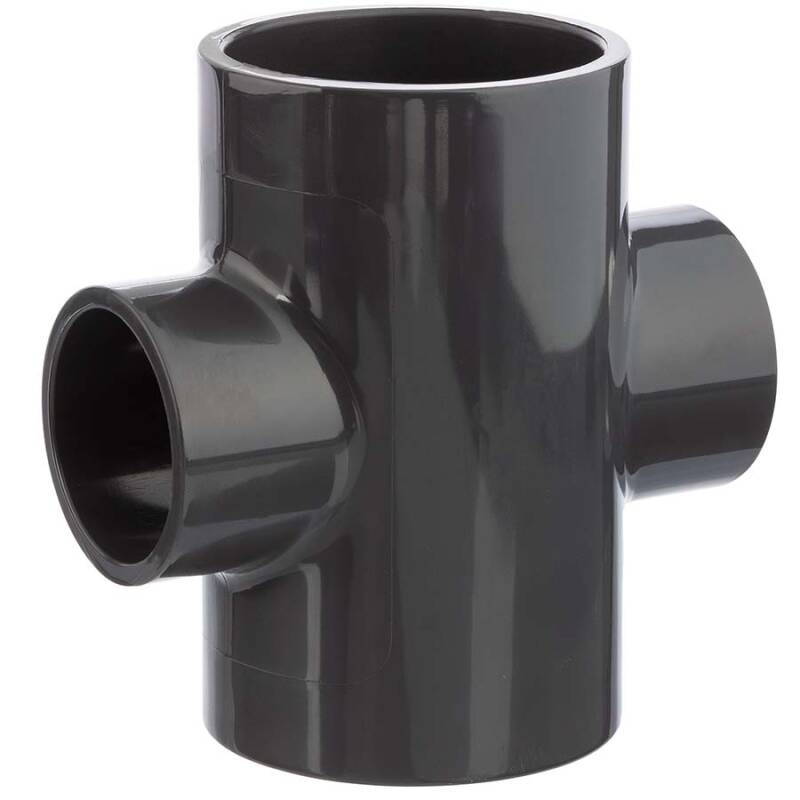

PVC-U Kreuz Stück, 2fach reduziert

Anschluss:
4fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD RoHS Konformitätserklärung - HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
