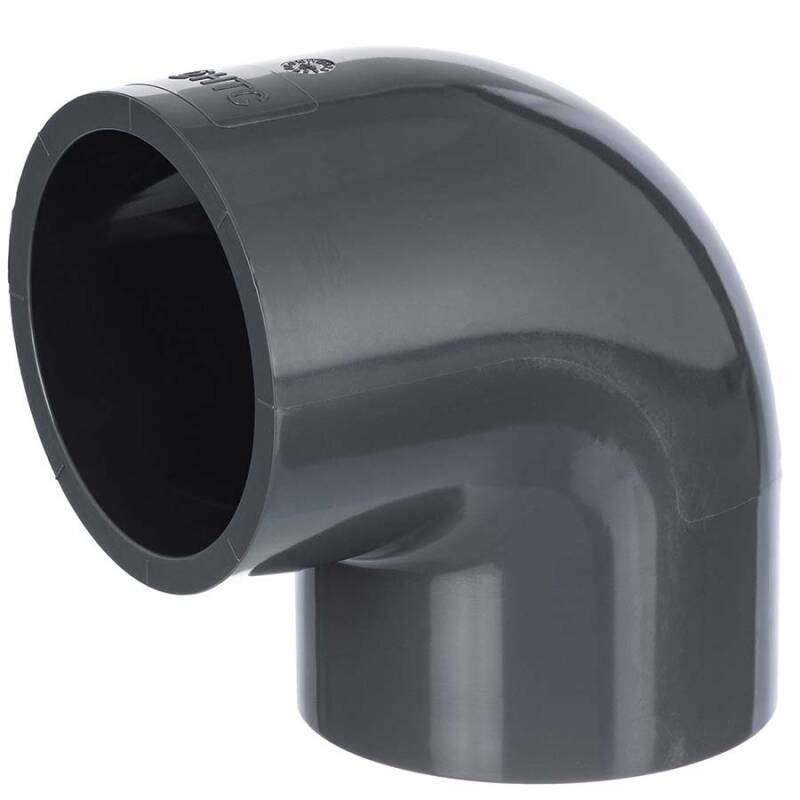

U-PVC solvent elbow 90°

SKU: AF0403
Auswahl Steuerzone / Lieferland
from
0,20 €
incl. 19% VAT , plus shipping costs
  • Available immediately

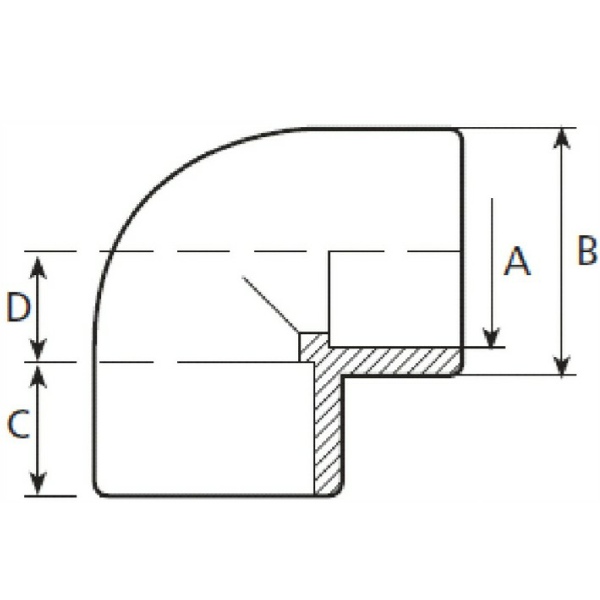

View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Item no.
Variation
D
D1
L
L1
PN
Price
Quantity
AF0403.000.012
12mm
12
18
19
12
16
0,20 €*
pc.:
AF0403.000.016
16mm
16
21
25
14
16
0,38 €*
pc.:
AF0403.000.020
20mm
20
27
38
17
16
0,27 €*
pc.:
AF0403.000.025
25mm
25
32,5
35
20
16
0,36 €*
pc.:
AF0403.000.032
32mm
32
39,5
39,5
22,5
16
0,52 €*
pc.:
AF0403.000.040
40mm
40
48,5
48,5
26,5
16
0,69 €*
pc.:
AF0403.000.050
50mm
50
62
93
31
16
0,86 €*
pc.:
AF0403.000.063
63mm
63
75
71
36
16
1,70 €*
pc.:
AF0403.000.075
75mm
75
89
84
44
16
3,59 €*
pc.:
AF0403.000.090
90mm
90
105
102
51
16
5,22 €*
pc.:
AF0403.000.110
110mm
110
127
117
61
16
8,82 €*
pc.:
AF0403.000.125
125mm
125
148
136
69
16
14,11 €*
pc.:
AF0403.000.160
160mm
160
180
167
86
10
42,02 €*
pc.:
AF0403.000.200
200mm
200
225
207
106
10
63,40 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Winkel 90°, 2fach Klebemuffe

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser, max. 10 bar ab 160mm
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
