Variants

Item no.
Variation
D
D1
L
L1
Weight
Price
Quantity
AY001
20mm
20
25
40,5
18
13
0,26 €*
pc:

incl. 19% VAT , plus shipping costs

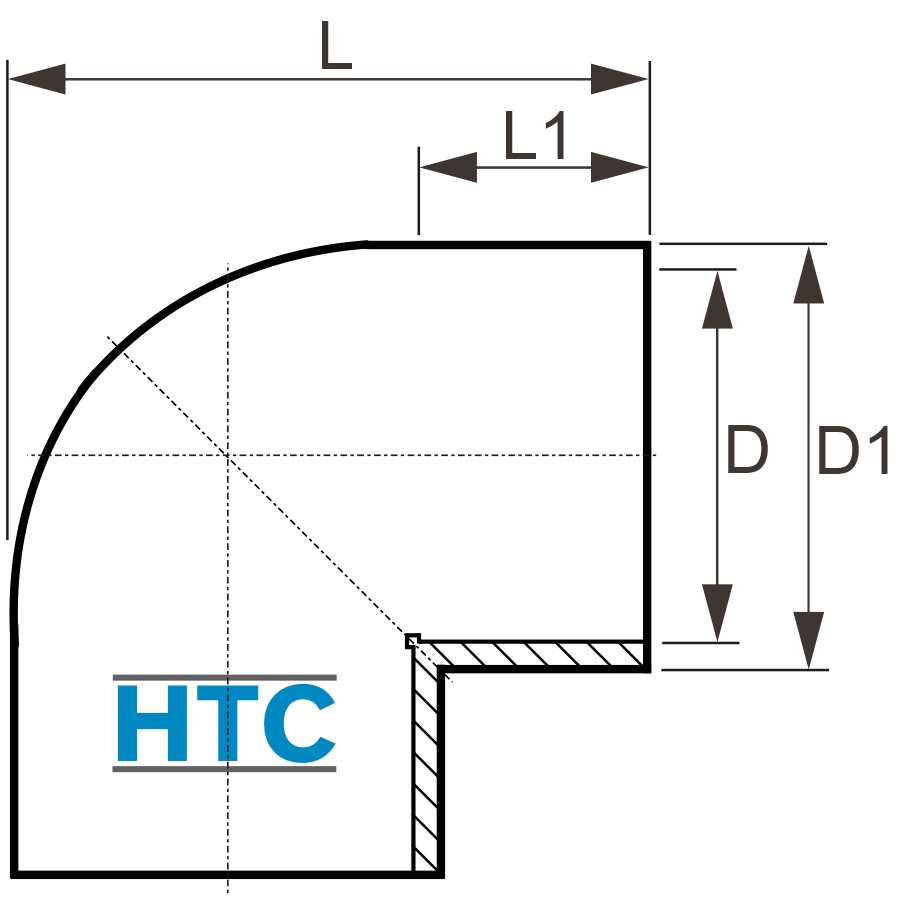

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

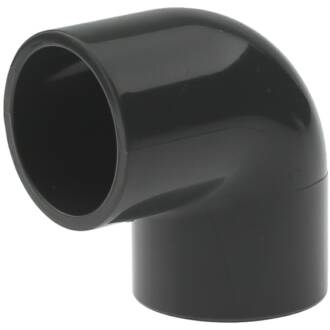

PVC-U Winkel 90° 2Wege, 2fach Klebemuffe

DO IT YOURSELF!

PVC-U Winkel 90° 2Wege, 2fach Klebemuffe für die Konstruktion.

Anschluss:
2fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
DOWNLOAD RoSH Konformitätserklärung - HT CONNECT GmbH & Co. KG
