Variants

Item no.
Variation
D
E
G
L1
L2
Z
Price
Quantity
AF0107.016.016
16mm x 3/8"
16
23
3/8" (16,44mm)
15
14
16
1,07 €*
pc.:
AF0107.020.020
20mm x 1/2"
20
28
1/2" (20,96mm)
17
16
20
1,20 €*
pc.:
AF0107.020.025
20mm x 3/4"
20
34
1/2" (20,96mm)
16
13
21
1,31 €*
pc.:
AF0107.025.020
25mm x 1/2"
25
28
1/2" (20,96mm)
18
28
24
0,96 €*
AF0107.025.025
25mm x 3/4"
25
34
3/4" (26,44mm)
18
20
25
1,39 €*
pc.:
AF0107.025.032
25mm x 1"
25
42
1" (33,25mm)
18
24
25
1,61 €*
pc.:
AF0107.032.025
32mm x 3/4"
32
34
3/4" (26,44mm)
22
20
30
1,71 €*
pc.:
AF0107.032.032
32mm x 1"
32
42
1" (33,25mm)
22
24
28
1,76 €*
pc.:
AF0107.040.032
40mm x 1"
40
42
1" (33,25mm)
22
26
30
1,65 €*
pc.:
AF0107.040.040
40mm x 1 1/4"
40
51
1 1/4" (41,91mm)
26
20
32
1,81 €*
pc.:
AF0107.050.040
50mm x 1 1/4"
50
51
1 1/4" (41,91mm)
18
24
38
2,36 €*
pc.:
AF0107.050.063
50mm x 2"
50
72
2" (59,61mm)
31
26
37
2,99 €*
pc.:
AF0107.063.050
63mm x 1 1/2"
63
60
1 1/2" (47,81mm)
37
23
40
3,95 €*
pc.:
AF0107.063.063
63mm x 2"
63
72
2" (59,61mm)
38
27
45
4,13 €*
pc.:
AF0107.075.063
75mm x 2"
75mm
72
2" (59,61mm)
26
45
50
5,15 €*
pc.:
AF0107.075.075
75mm x 2 1/2"
75mm
89
75mm x 2 1/2"
36
45
54
7,59 €*
pc.:
AF0107.075.090
75mm x 3"
75
102
3" (87,88mm)
39
45
52
7,75 €*
pc.:
AF0107.090.075
90mm x 2 1/2"
90
88
2 1/2" (75,18mm)
51
32
60
8,90 €*
pc.:
AF0107.090.090
90mm x 3"
90
103
3" (87,88mm)
39
53
61
8,90 €*
pc.:
AF0107.090.110
90mm x 4"
90
129
4" (113,03mm)
51
46
61
8,90 €*
pc.:
AF0107.110.090
110mm x 3"
110
102
3" (87,88mm)
37
51
69
9,50 €*
pc.:
AF0107.110.110
110mm x 4"
110
129
4" (113,03mm)
61
43
70
12,17 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

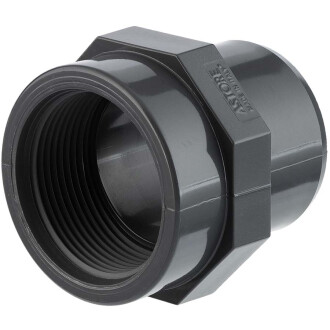

PVC-U Einsatzgewindemuffe Klebestutzen x Innengewinde

Anschluss:
Klebestutzen x Innengewinde
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
Einsatzbereich:

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
