U-PVC loose flange

SKU: AF0702
Auswahl Steuerzone / Lieferland
from
1,79 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
d
E
N
Flange sleeve
Price
Quantity

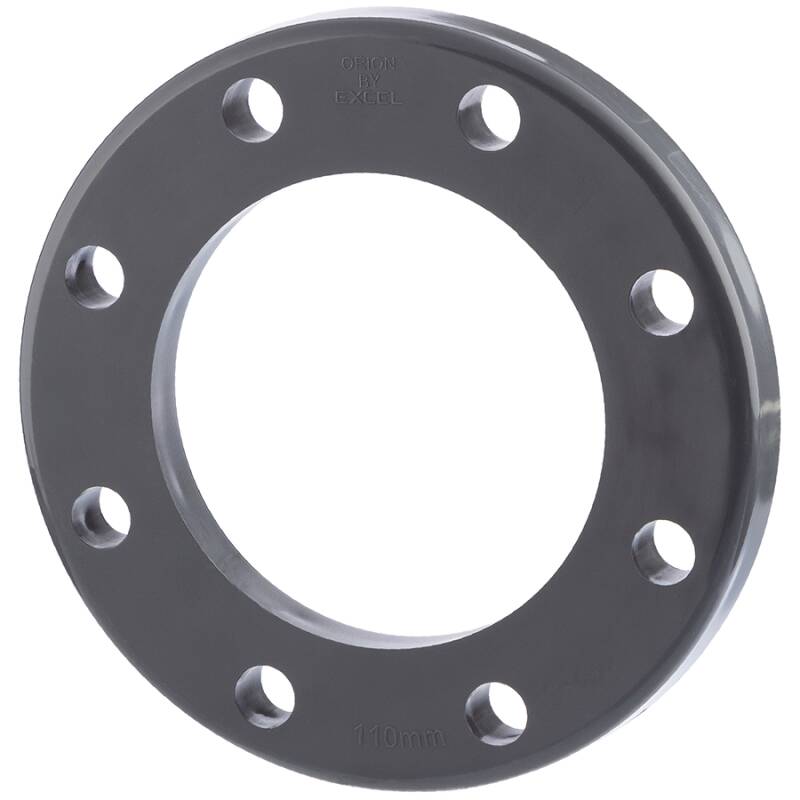

U-PVC loose flange
AF0702.000.020
20mm
95
65
12
14
28
4x M12
für 20mm
1,79 €*
pc:
U-PVC loose flange
AF0702.000.025
25mm
105
75
13
14
34
4x M12
für 25mm
1,94 €*
pc:
U-PVC loose flange
AF0702.000.032
32mm
115
85
15
14
42
4x M12
für 32mm
2,20 €*
pc:
U-PVC loose flange
AF0702.000.040
40mm
140
100
15
18
51
4x M16
für 40mm
3,30 €*
pc:
U-PVC loose flange
AF0702.000.050
50mm
150
110
16
18
62
4x M16
für 50mm
3,58 €*
pc:

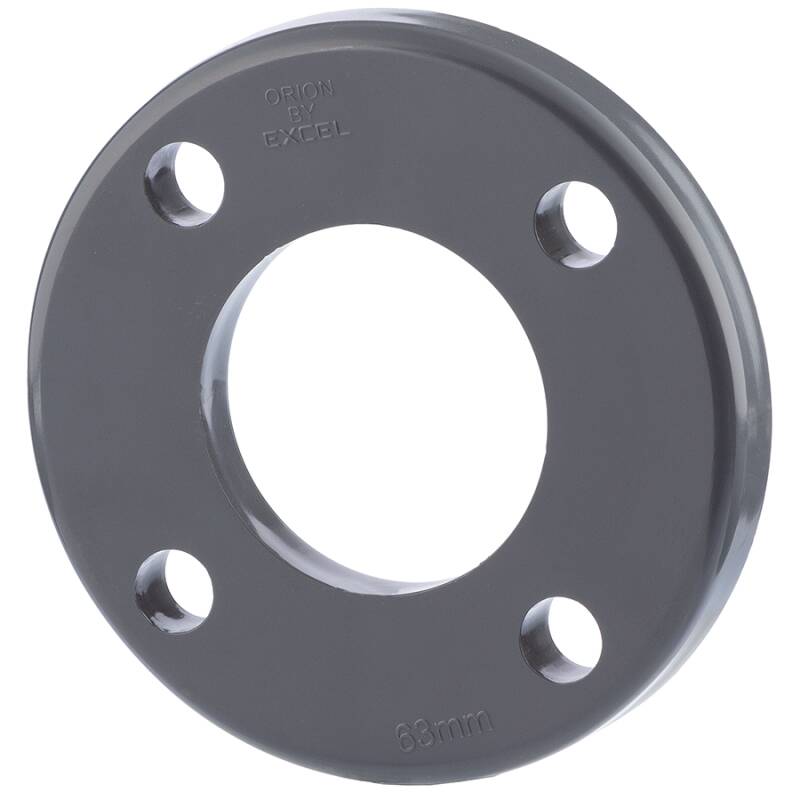

U-PVC loose flange 63mm
AF0702.000.063
63mm
165
125
19
17,5
78
4x M16
für 63mm
3,01 €*
pc:
U-PVC loose flange
AF0702.000.075
75mm
185
145
20
18
92
4x M16
für 75mm
3,96 €*
pc:
U-PVC loose flange
AF0702.000.090
90mm
200
160
20
18
112
8x M16
für 90mm
4,25 €*
pc:
U-PVC loose flange
AF0702.000.110
110mm
220
180
22
18
131
8x M16
für 110mm
5,12 €*
pc:
U-PVC loose flange
AF0702.190.125
125mm LK190mm
230
190
24
18
150
8x M16
für 125mm
8,20 €*
pc:
U-PVC loose flange
AF0702.210.125
125mm LK210mm
250
210
24
18
148
8x M16
für 125mm
9,41 €*
pc:
U-PVC loose flange
AF0702.000.160
160mm
285
240
24
22
188
8x M20
für 160mm
9,87 €*
pc:
U-PVC loose flange
AF0702.000.200
200mm
340
295
26
22
235
8x M20
für 200mm
13,85 €*
pc:
U-PVC loose flange
AF0702.000.250
250mm
394
350
35
22
280
12x M20
für 250mm
19,94 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Aufsteckflansch, Losflansch

Anschluss:
Haltering für Bundbuchse in einer Flanschverbindung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser | ab 200m max. 10 bar
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
