Variants

Item no.
Variation
D
E
L
L1
Weight
Price
Quantity
AL0509.000.063
63mm
63
70
141
39
193
3,25 €*
pc:
AL0509.000.075
75mm
75
82
166
44
277
4,14 €*
pc:
AL0509.000.090
90mm
90
98
195
52
458
6,78 €*
pc:
AL0509.000.110
110mm
110
119
233
61
817
11,60 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

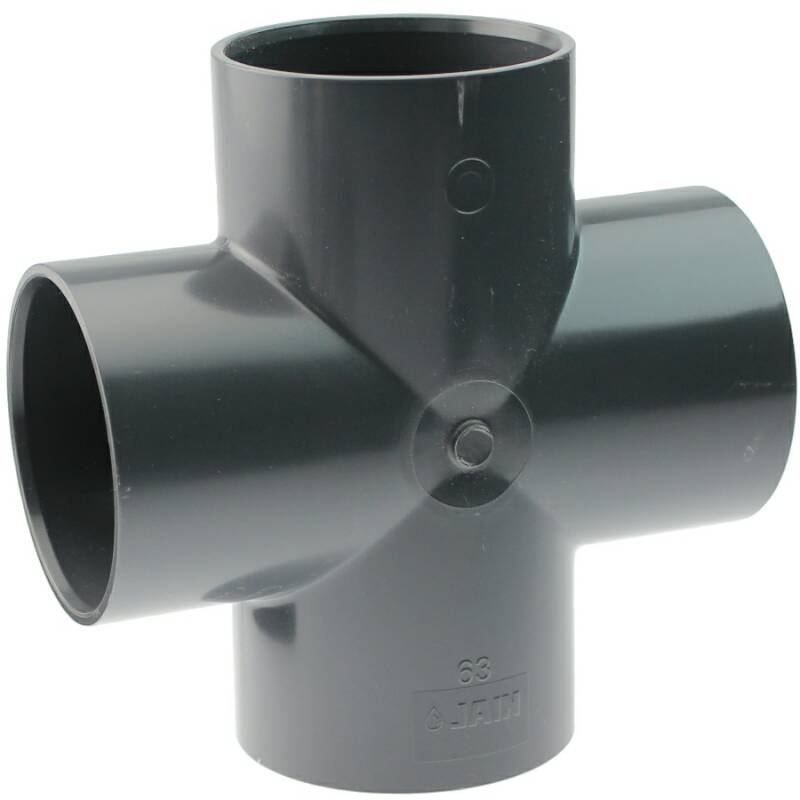

PVC-U Kreuzstück, 4fach Klebemuffe ECO

Anschluss:
4fach Klebemuffe
Arbeitsdruck (PN):
max. PN 6 bar bei 20°C Medium Wasser
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Material:
PVC-U
Farbe:
Hellgrau
Einsatzbereich:
Pikto
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
