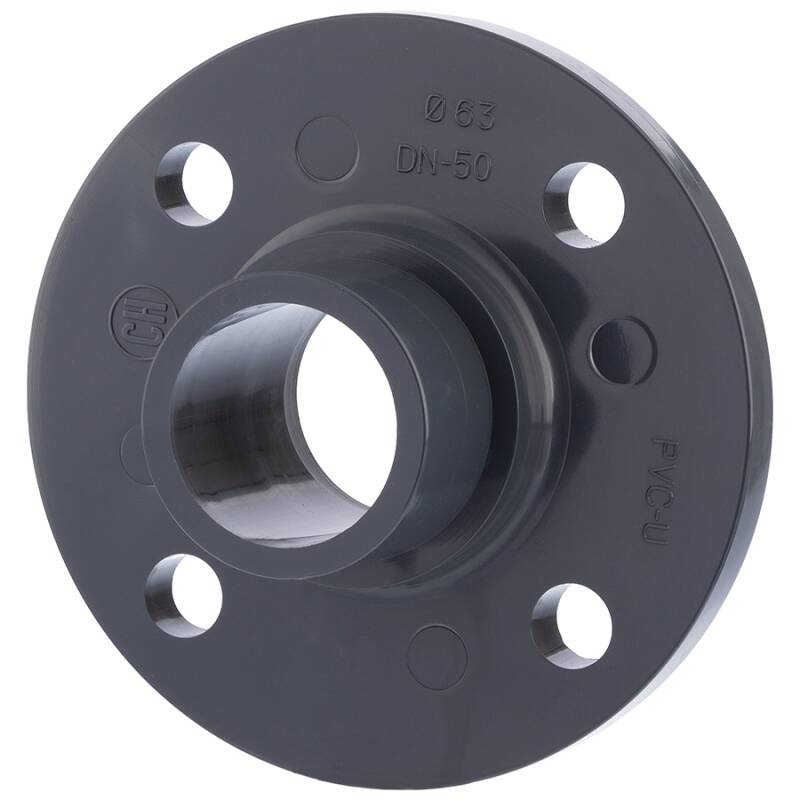

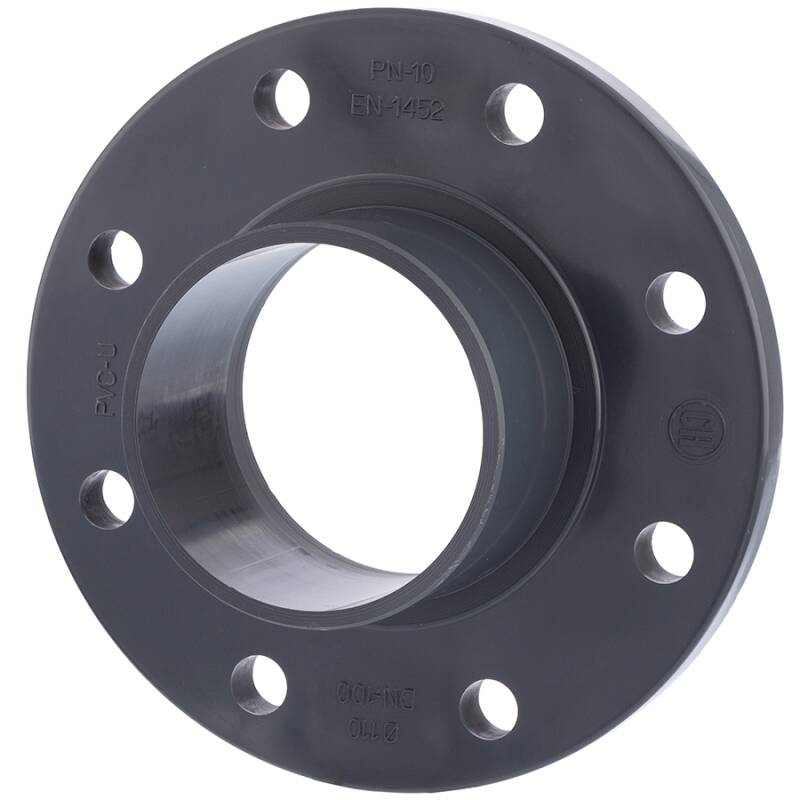

U-PVC fixed flange with solvent stub

SKU: AF0710
Auswahl Steuerzone / Lieferland
from
4,63 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
DN
E
F
G
N
Screw
Price
Quantity
U-PVC fixed flange with solvent male stub 20mm
AF0710.000.020
20mm
97
64
20
17
33
11
14
4
M12
4,63 €*
pc:
U-PVC fixed flange with solvent male stub 25mm
AF0710.000.025
25mm
105
76
25
21
39
15
14
4
M12
5,52 €*
pc:
U-PVC fixed flange with solvent male stub 32mm
AF0710.000.032
32mm
115
85
32
25
40
15
14
4
M12
6,41 €*
pc:
U-PVC fixed flange with solvent male stub 40mm
AF0710.000.040
40mm
140
101
40
31
49
15
17
4
M16
6,83 €*
pc:
U-PVC fixed flange with solvent male stub 50mm
AF0710.000.050
50mm
149
112
50
39
59
13
12
4
M16
8,14 €*
U-PVC fixed flange with solvent male stub 63mm
AF0710.000.063
63mm
164
126
63
48
71
15
17
4
M16
10,29 €*
pc:
U-PVC fixed flange with solvent male stub 75mm
AF0710.000.075
75mm
185
145
75
65
77
17
17
4
M16
14,05 €*
pc:
U-PVC fixed flange with solvent male stub 90mm
AF0710.000.090
90mm
200
160
90
80
80
18
17
8
M16
14,95 €*
pc:
U-PVC fixed flange with solvent male stub 110mm
AF0710.000.110
110mm
220
180
110
99
85
19
16
8
M16
16,71 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Festflansch mit Klebestutzen

Anschluss:
Festflansch mit Klebestutzen
Anschlussfläche:
glatt
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. PN 10 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
