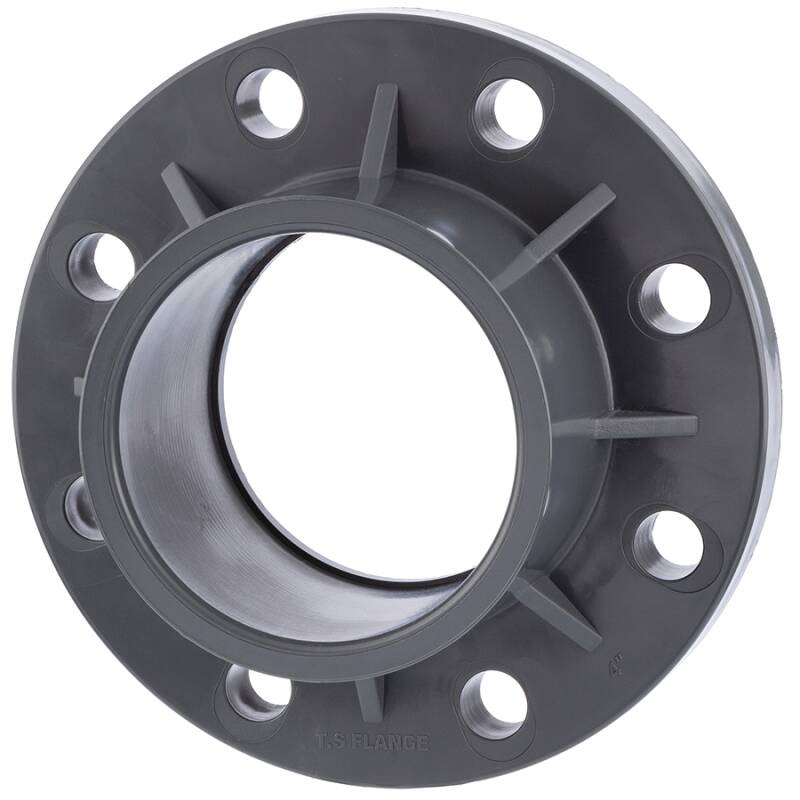

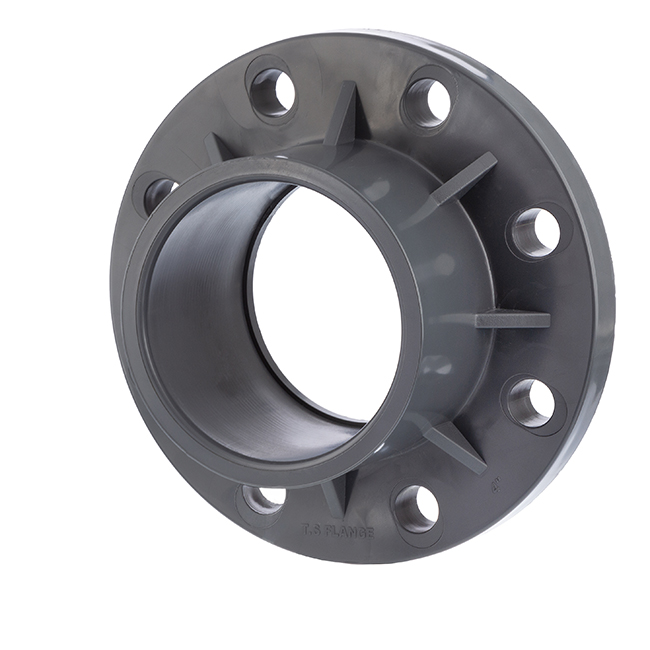

U-PVC fixed flange with solvent stub

SKU: AF0704
Auswahl Steuerzone / Lieferland
from
2,45 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."

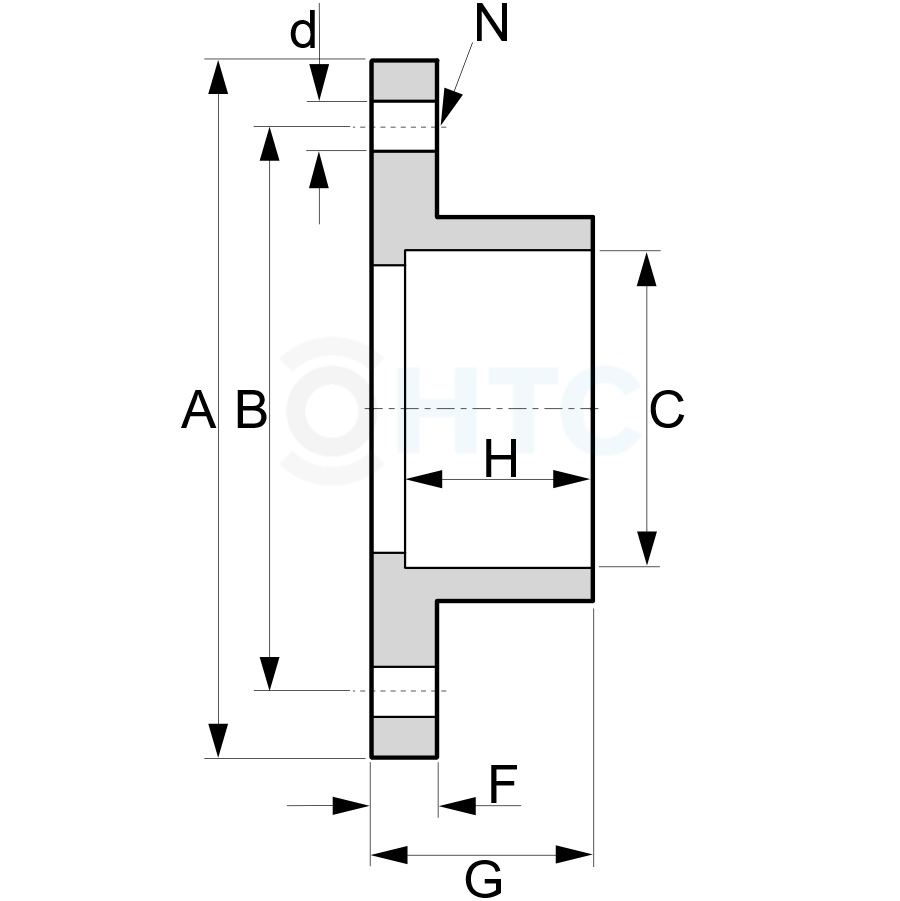

How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
C
d
F
G
H
N
PN
Price
Quantity
PVC-U Festflansch mit Bundbuchse 20mm
AF0704.000.020
20mm
95
65
20
14
11
20
16
4x M12
16
2,45 €*
pc:
PVC-U Festflansch mit Bundbuchse 25mm
AF0704.000.025
25mm
115
75
25
14
12
23,5
19
4x M12
16
2,87 €*
pc:
PVC-U Festflansch mit Bundbuchse 32mm
AF0704.000.032
32mm
125
85
32
18
16
45
41
4x M12
16
4,31 €*
pc:
PVC-U Festflansch mit Bundbuchse 40mm
AF0704.000.040
40mm
140
100
40
17
17,5
48
50
4x M16
16
5,97 €*
pc:
PVC-U Festflansch mit Bundbuchse 50mm
AF0704.000.050
50mm
150
110
50
19
18
54
50
4x M16
16
7,00 €*
pc:
PVC-U Festflansch mit Bundbuchse 63mm
AF0704.000.063
63mm
165
125
63
19
20
61
58
4x M16
16
8,98 €*
PVC-U Festflansch mit Bundbuchse 75mm
AF0704.000.075
75mm
185
145
75
18
19
63
57
4/8 x M16
16
10,42 €*
pc:
U-PVC fixed flange with solvent stub
AF0704.000.090
90mm
200
160
90
18
22
75
69
8x M16
16
14,15 €*
pc:
PVC-U Festflansch mit Bundbuchse 110mm
AF0704.000.110
110mm
220
180
110
18
22
94
88
8x M16
16
18,75 €*
pc:
PVC-U Festflansch mit Bundbuchse 125mm
AF0704.000.125
125mm
230
190
125
17
22
80
69
8x M16
16
16,76 €*
pc:
PVC-U Festflansch mit Bundbuchse 160mm
AF0704.000.160
160mm
285
240
160
22
28
96
86,5
8x M20
16
29,27 €*
pc:
PVC-U Festflansch mit Bundbuchse 200mm
AF0704.000.200
200mm
340
295
200
22
22
108
106
8x M20
10
40,23 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Festflansch mit Bundbuchse, Klebemuffe

Anschluss:
Festflansch mit Bundbuchse, Klebemuffe
Anschlussfläche:
20 - 110mm gerillt, 125 - 250mm glatt
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser | ab 160m max. 10 bar (1,0 MPa)
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
