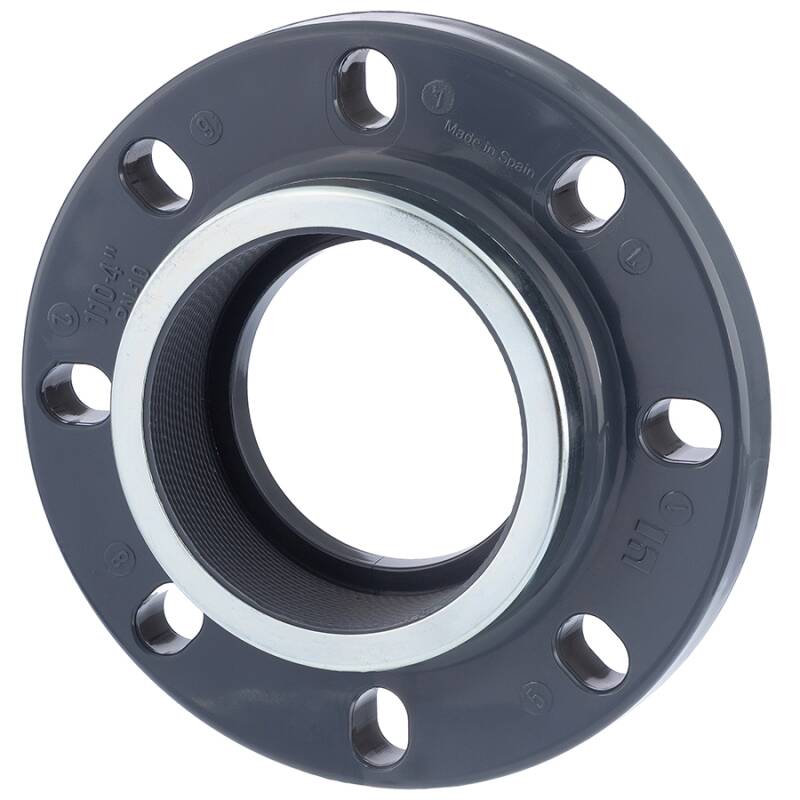

U-PVC fixed flange with reinforced female thread

SKU: AFX705
Auswahl Steuerzone / Lieferland
from
13,22 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

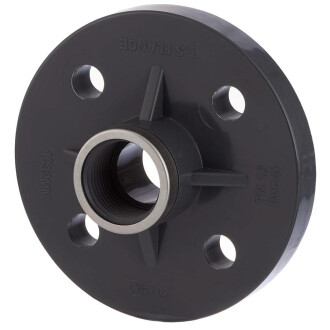

Product picture
Item no.
Variation
A
B
C
D
K
Weight
Price
Quantity
PVC-U Festflansch mit Bundbuchse Innengewinde V2A Ring 1 1/2"
AFX705.000.050
1 1/2"
1 1/2" (47,80mm)
29
18
4x18
110
384
13,22 €*
pc:
PVC-U Festflansch mit Bundbuchse Innengewinde V2A Ring 2"
AFX705.000.063
2"
2" (59,61mm)
30
18
4x18
125
445
14,84 €*
pc:
PVC-U Festflansch mit Bundbuchse Innengewinde V2A Ring 2 1/2"
AFX705.000.075
2 1/2"
2 1/2" (75,18mm)
30
19
4x18
145
612
16,92 €*
pc:
PVC-U Festflansch mit Bundbuchse Innengewinde V2A Ring 3"
AFX705.000.090
3"
3" (87,88mm)
35
21
8x18
160
789
26,42 €*
pc:
PVC-U Festflansch mit Bundbuchse Innengewinde V2A Ring 4"
AFX705.000.110
4"
4" (113,03mm)
39
23
8x18
180
1045
30,32 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Festflansch mit Bundbuchse, Innengewinde verstärkt V2A Ring

Anschluss:
Innengewinde verstärkt
Gewinde:
BSP Rohrgewinde G, nicht selbstdichtend, Abdichtung mit Teflonband o.ä.
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
