Variants

Item no.
Variation
D
D1
H
L
Weight
Price
Quantity
AY041
20mm
20
25
49
72
38
1,33 €*
pc:
AY042
25mm
25
30,5
56
81
52
1,95 €*
pc:
AY043
32mm
32
38,5
64
90
78
2,87 €*
pc:
AY0511.000.050
50mm
50
61
88
114
246
5,39 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

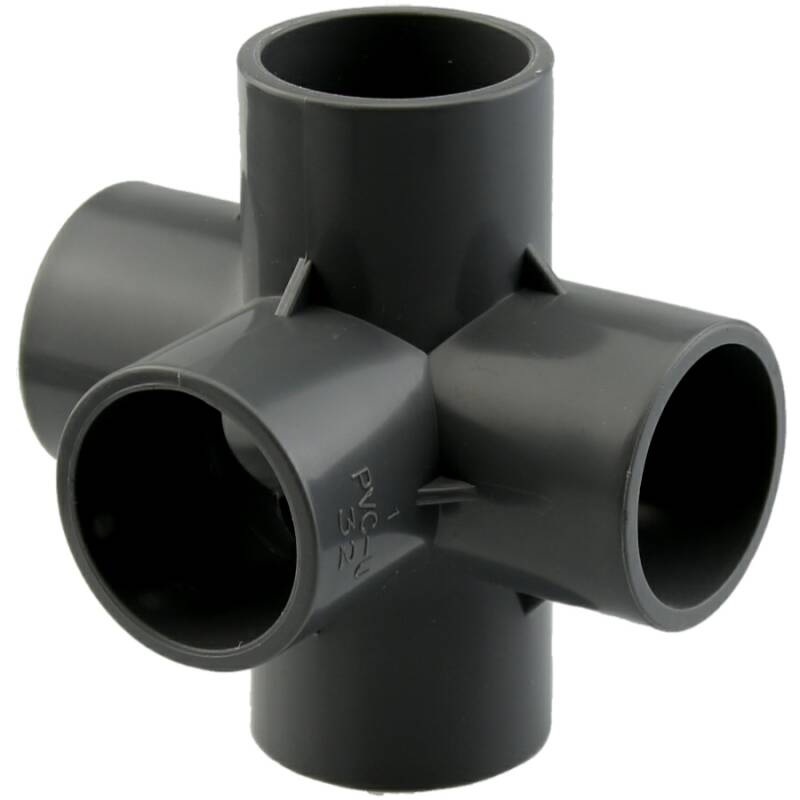

PVC-U Kreuz 5Wege, 5fach Klebemuffe

DO IT YOURSELF!

PVC-U Winkel 90° 5Wege, 5fach Klebemuffe für die Konstruktion.

Anschluss:
5fach Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 10 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOAD RoHS Konformitätserklärung - Hidroten
DOWNLOAD RoSH Konformitätserklärung - HT CONNECT GmbH & Co. KG
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
