U-PVC blank flange

SKU: AF0703
Auswahl Steuerzone / Lieferland
from
2,73 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
d
N
Screw
Price
Quantity
U-PVC blank flange
AF0703.000.020
20mm
95
65
12
14
4
M12
2,73 €*
pc:
U-PVC blank flange
AF0703.000.025
25mm
105
75
13
14
4
M12
3,97 €*
pc:
U-PVC blank flange
AF0703.000.032
32mm
115
85
15
14
4
M12
5,74 €*
pc:

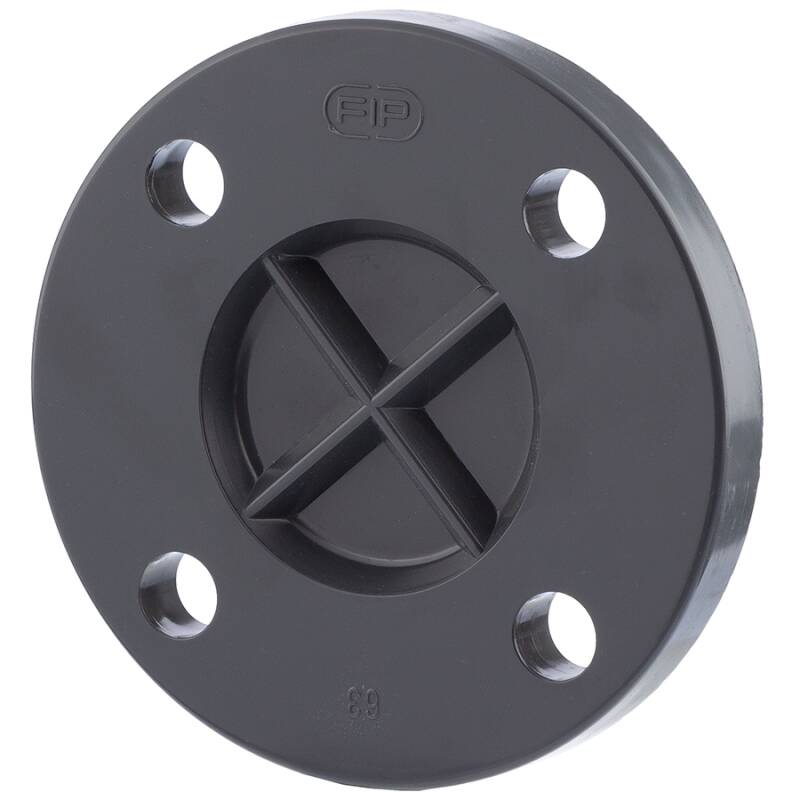

U-PVC blank flange
AF0703.000.040
40mm
140
100
15
18
4
M16
7,07 €*
pc:
U-PVC blank flange
AF0703.000.050
50mm
150
110
16
18
4
M16
5,68 €*
pc:
U-PVC blank flange
AF0703.000.063
63mm
167
125
18
18
4
M16
7,12 €*
pc:
U-PVC blank flange
AF0703.000.075
75mm
187
145
19
18
4
M16
10,66 €*
pc:
U-PVC blank flange
AF0703.000.090
90mm
200,5
160
19
18
8
M16
12,65 €*
pc:

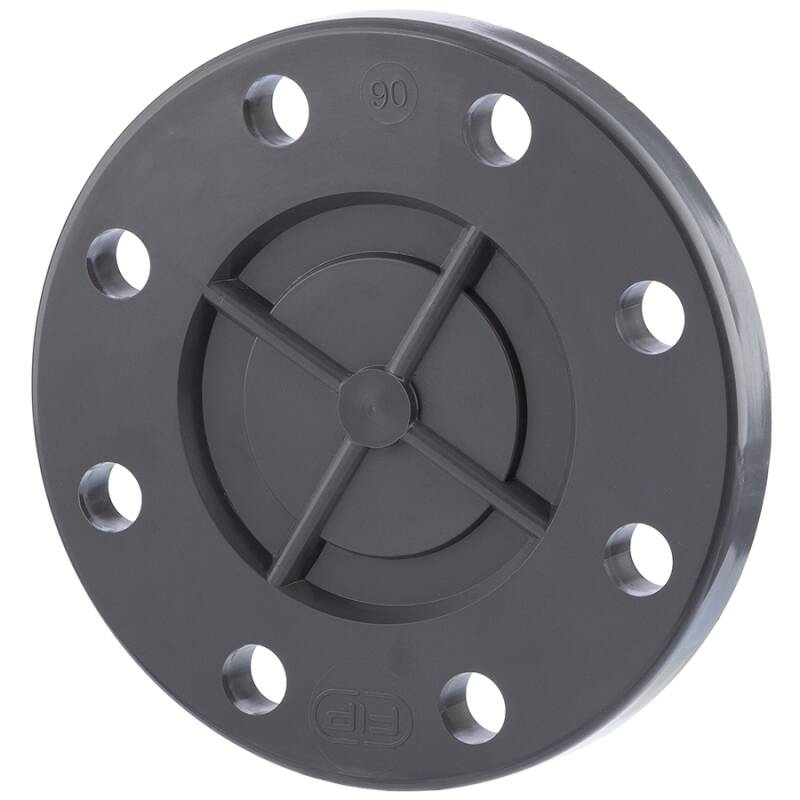

U-PVC blank flange
AF0703.000.110
110mm
222
180
23
18
8
M16
17,66 €*
pc:
U-PVC blank flange
AF0703.000.125
125mm LK190mm
232
190
24
20
8
M16
23,56 €*
pc:

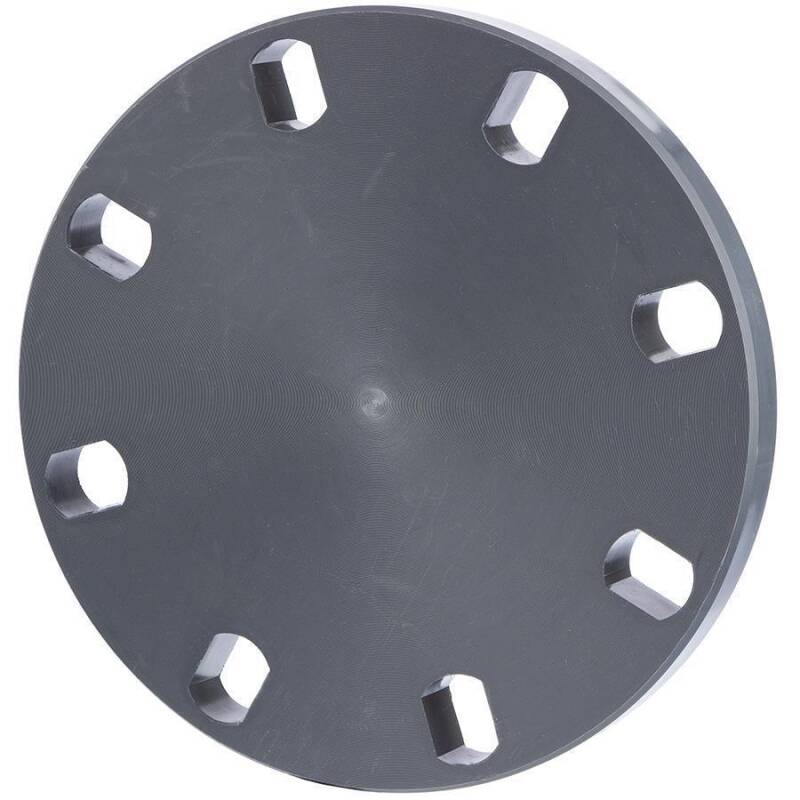

U-PVC blank flange
AF0703.210.125
125 LK210mm
250
210
22,5
18
8
M16
21,69 €*
U-PVC blank flange
AF0703.000.160
160mm
285
240
24
22
8
M20
31,15 €*
U-PVC blank flange
AF0703.000.200
200mm
340
295
23
23
8
8x M20
52,79 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Blindflansch

Anschluss:
Blindflansch für Durchflussstop innerhalb einer Flanschverbindung
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Montageanleitung für Flanschverbindungen
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOAD abdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
