Variants

Item no.
Variation
A
B
C
D
E
Price
Quantity
AS0815.000.050
50mm
58,5
50
31,5
43
67
1,06 €*
pc.:

incl. 19% VAT , plus shipping costs

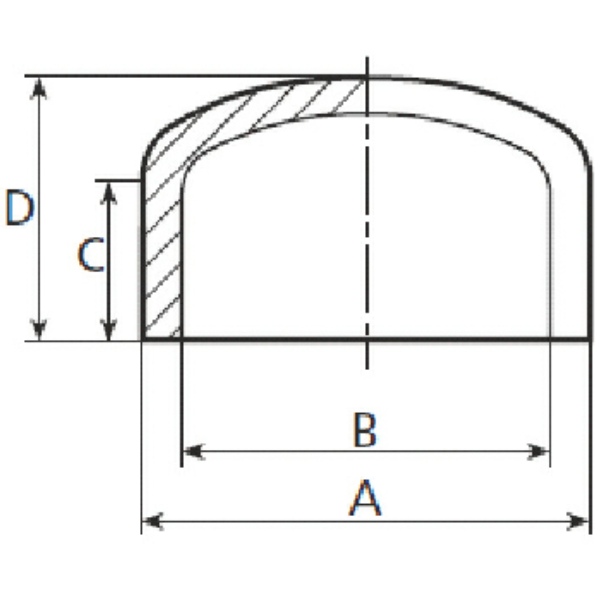

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

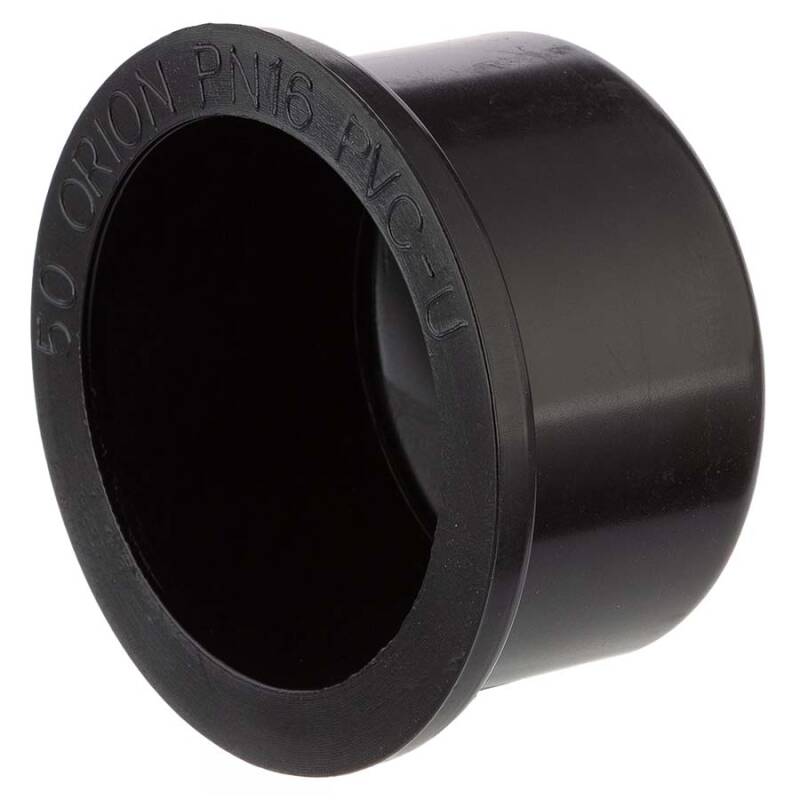

PVC-U Endkappe Schwarz, Klebemuffe

PVC-U Fittings und Rohr Schwarz sind verklebbar wie PVC-U Grau o.ä. mit jedem handelsüblichen PVC-U Kleber und weisen identisch hohe Wertigkeiten auf.

Anschluss:
Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Schwarz - Zusatz von UV-Stabilisatoren
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD Certificate of Confirmity UV-Stabilisatoren
DOWNLOAD Kleben von PVC-U Rohren und -Fittings
DOWNLOAD PVC-U technische Charakteristik
DOWNLOAD chemische Beständigkeit von Kunststoffen
