Variants

Item no.
Variation
A
C
D
DN
L
Price
Quantity
AF0513.020.008
3fach 8mm
84
92
8
5
21,5
3,92 €*
pc.:
AF0513.020.010
3fach 10mm
10
6
3,92 €*
pc.:
AF0513.020.012
3fach 12mm
12
8
3,92 €*
AF0513.020.016
3fach 16mm
98
105
16
11
32
3,92 €*
pc.:
AF0513.020.018
3fach 18mm
115
125
18
11
39
4,53 €*
pc.:
AF0513.020.020
3fach 20mm
119
130
20
13
41
3,92 €*
pc.:
AF0513.032.025
3fach 25mm
138
153
25
18
44
5,00 €*
pc.:
AF0513.000.032
3fach 32mm
165
178
32
23
48
6,43 €*
pc.:
AF0513.040.040
3fach 40mm
85
197
40
27
55
8,43 €*
pc.:
AF0513.050.038
3fach 38mm
190
200
38
25
41
9,95 €*
pc.:
AF0513.050.050
3fach 50mm
220
224
50
36
58
11,52 €*
pc.:

incl. 19% VAT , plus shipping costs

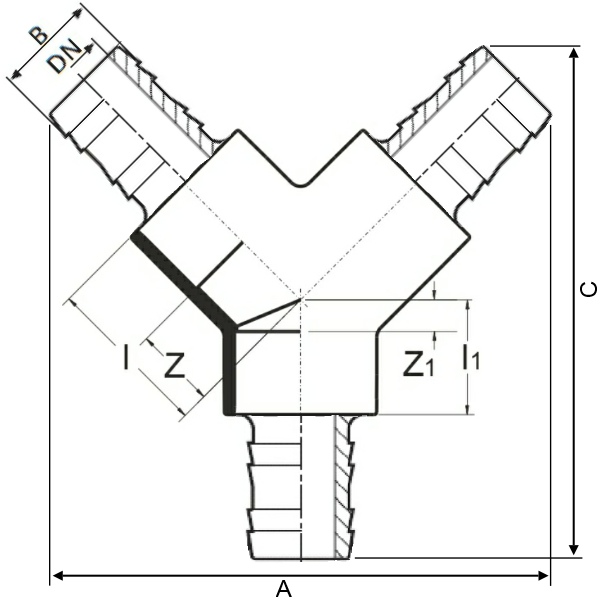

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PVC-U Y-Stück, 3fach Schlauchtülle

Anschluss:
3fach Schlauchtülle
Winkel:
Y
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C
Material:
PVC-U
Farbe:
Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
