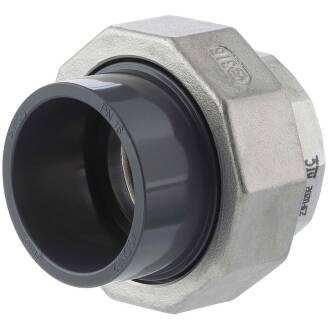

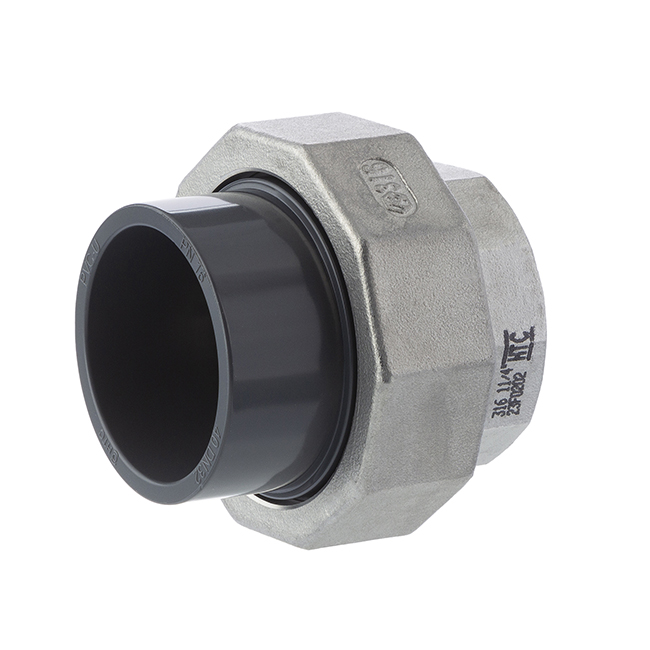

Stainless steel V4A union female thread x insert PVC-U socket

SKU: AF0622
Auswahl Steuerzone / Lieferland
from
7,13 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting
  • Available immediately

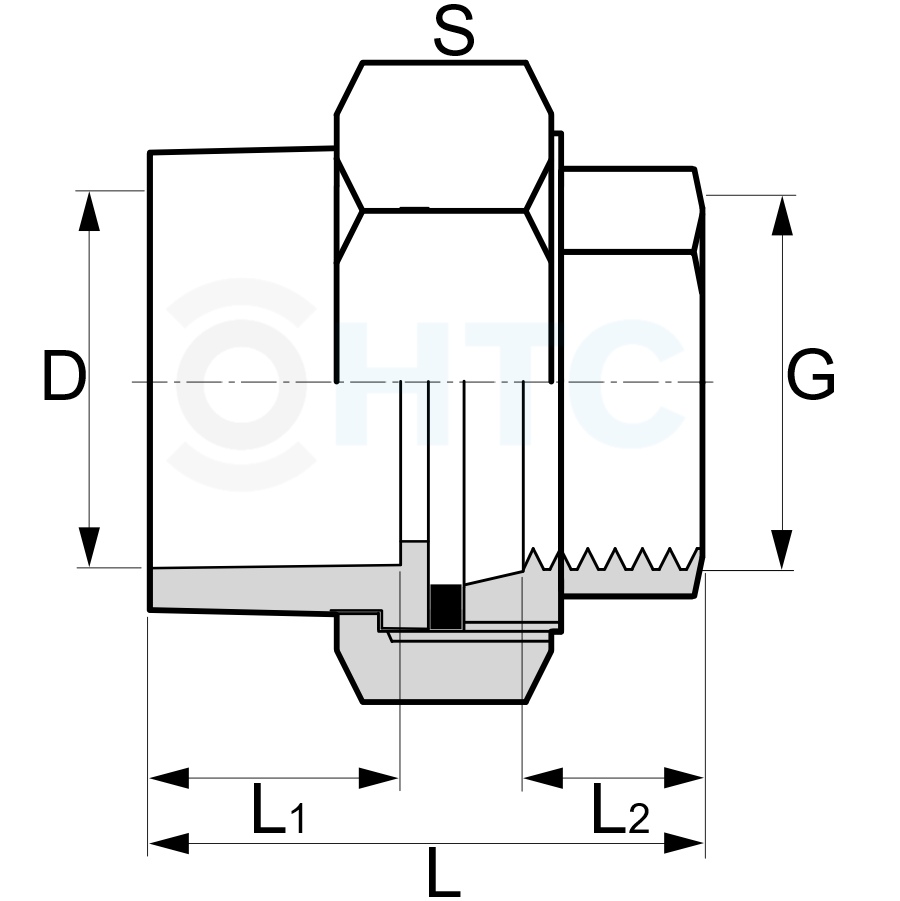

   Variants

Item no.
Variation
D
G
L
L1
L2
S
Price
Quantity
AF0622.020.020
1/2" x 20mm
20
R 1/2" (20,96mm)
42
17
12
37
7,13 €*
pc.:
AF0622.025.025
3/4" x 25mm
25
R 3/4" (26,44mm)
49
19
15
46
10,60 €*
pc.:
AF0622.032.032
1" x 32mm
32
R 1" (33,25mm)
55
23
17
52
14,03 €*
pc.:
AF0622.040.040
1 1/4" x 40mm
40
R 1 1/4" (41,91mm)
60
27
19
66
22,22 €*
pc.:
AF0622.050.050
1 1/2" x 50mm
50
R 1 1/2" (47,81mm)
67
32
19
71
28,52 €*
pc.:
AF0622.063.063
2" x 63mm
63
R 2" (59,61mm)
82
38
21
87
40,07 €*
pc.:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

Edelstahl V4A Verschraubung Innengewinde x Einlegeteil PVC-U Klebemuffe

Die Verbindung zwischen den Welten - Professionelle, passgenaue, trennbare Anbindung von PVC-U auf Edelstahl V4A.

Anschluss:
Edelstahl V4A Innengewinde x PVC-U Klebemuffe
Temperatur:
bis 45°C konstant, kurzzeitig 60°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
Edelstahl V4A | Werkstoff 1.440 | X5CrNiMo 17-12-2, Einlegeteil PVC-U
Flachdichtung:
TPE 70 shore
Farbe:
Edelstahl, Einlegeteil Grau
DOWNLOADRoHS Bestätigung HTC
DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind
DOWNLOADabdichten und verbinden von Kunststoffgewinden
DOWNLOAD chemische Beständigkeit von Kunststoffen
DOWNLOAD äußere Merkmale von Spritzgussfittings
