All measurements in millimetres, weights in grams. For the photographic representation, we use an item size both studio light. The illustrations, technical data, dimensions and designs are non-binding. We reserve the right to make changes at any time without notice. The useful dimensions are defined or shown reinforced or result from the article designation. Other dimensions are for illustrative purposes only. Please note this in case of misuse.
Description

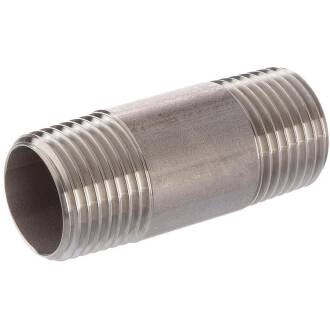

Pipe nipple 2-way external thread 2", stainless steel fitting, AISI 316 quality, V4A
Connection:
2 male external threads
Thread:
BSP pipe thread ISO 7-1/EN 10226-1 tapered male thread (R), not self-sealing, seal with hemp, sealing paste or o.ä.
Temperature:
-20°C to 200°C
Working pressure (PN):
20 bar | -20°C to 40°C
16.5 bar | 100°C
15 bar | 150°C
13.5 bar | 200°C
16.5 bar | 100°C
15 bar | 150°C
13.5 bar | 200°C
Material:
Stainless steel AISI 316 | Material 1.4401 | X5CrNiMo 17-12-2 | V4A
DIN:
Dimensions conform to ISO 4144, connection thread according to ISO 7/1 (DIN 2999 / BS 21)
Color:
Gray stainless steel
Key data
- Working temperature: -20°C to 200°C
- Working pressure PN 20 bar (300 psi)
- Dimensioning according to ISO 4144
- BSP pipe thread, external thread R (conical), parallel internal thread (Rp) ISO 7-1/EN 10226-1
- Manufacturing standard UNE EN 10213-4, Tolerance DIN 1.4408
Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a particular degree of purity. Steels whose sulfur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, particularly greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, high stress-rupture strength and tensile strength at elevated temperatures. The alloy is commonly known as V4A stainless steel.
Stainless steel AISI 316 | Material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for pipes made of stainless steel for domestic drinking water installations), steel grade 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures... fluid technology, boilers, condensers, heat exchangers, reactors...
Stainless steel V4A pipe nipples, double pipe nipples, 2 inch
You can find 2 inch double nipples in a huge selection of lengths from 40mm to 300mm in 10mm increments at our professional shop PVC-Welt.de. Now you can buy V4A stainless steel double nipples in 2" online at a top price at PVC-Welt.de. Buy stainless steel threaded fittings and double nipples in top craftsman quality now in our webshop at PVC-Welt.de.
The common thread size in the plumbing industry is the inch. For a better understanding, every inch measurement is also given in millimeters in brackets in our webshop. 1 inch corresponds to approx. 33.25 mm and anyone who previously only knew inches from monitors or TV sizes will be somewhat confused. Therefore, please also note our information download as a pdf "the trouble with inches, or why 1" is not 25.4mm"
For stainless steel pipe nipples V4A, AISI 316, the external thread is tapered or conical and the inch specification is preceded by an "R".
Threaded metal connections can be sealed with Teflon tape or thread, but also, in contrast to plastic fittings, with hemp or other swelling sealing materials.
With our large Warehouse, we can respond immediately and deliver to you in the shortest possible time. Overnight for express orders up to a maximum of 20 kg. This efficiency is to your advantage, because at HT CONNECT, price, performance and quality are top-notch.
