PVC-U pipe and fittings - open questions quickly explained

The wide range of possible applications for fittings made of plasticizer-free rigid PVC (PVC-U) extends from aquarium piping, aquarium construction, pond construction and pool construction to the industrial areas of swimming pool technology, wastewater disposal, biogas plants and the chemical process industry.

PVC-U Fittings sind nicht geeignet für Gasleitungen sowie Druckluftleitungen.

PVC-U pipe and PVC fittings are resistant to many acids and alkalis and can be used as a cold water pipe for a liquid temperature range of 0°C to +45°C (up to +60°C for short periods). The pressure load is reduced with increasing temperature, whereby the molecular structure changes from approx. +60°C, i.e. the pipe becomes soft. The melting point is approx. +80°C.

What is PVC and what is PVC made of? Wikipedia polyvinyl chloride
PVC-U pipes can be cut to length with any saw, whereby an exact 90° cut with a high-speed cross-cut saw and fine saw blade (for wood) produces an ideal result. PVC-U pipes are glued with PVC-U fittings. It is essential to chamfer the pipe and clean the gluing point before gluing. The gluing point does not need to be roughened or prepared in any other way - it just needs to be free of fat. It is important to chamfer the pipe correctly - do not underestimate the locking effect of the glue, especially with larger diameters. For larger diameters (from approx. 110 mm), carry out bonding with an assistant.

PVC-U pipes and fittings or fittings with each other are not suitable for a pure push-fit system. The outer diameter of the PVC-U pipes and the inner diameter of the adhesive fittings are subject to slight tolerances that occur during production. You may purchase fittings and pipes that have a slight ‘play’; this may be different in the next production cycle from the identical manufacturer, as the cooling process during injection moulding depends on many factors, some of which cannot be influenced by the manufacturer.
Do not attempt to force pipes and fittings together, as it may be extremely difficult or impossible to separate them afterwards. Joining is always possible with PVC-U cleaner and adhesive, as the adhesive not only fills the gap but also has a ‘lubricating effect’ when pushed together.
Plugged connections are not leak-proof.

NO. PVC-U fittings are designed exclusively for the transportation of liquids. The pipes can be used for suction systems or pneumatic tube systems with a low pressure range.

PVC-U pipes and fittings can be laid above and below ground in a sand bed, similar to a sewer pipe (KG pipe). If you cannot get the pipes free of water during the frost period, the local frost-free limits must be observed during installation.

After the glue has completely cured, carry out a pressure test (DIN 4279) before backfilling the pipe trench.

PVC-U pipes can be painted relatively easily with PVC paint. We recommend the use of a primer so that the paint adheres well and does not and does not peel off prematurely.
Säubern Sie das Rohr gründlich und schleifen Sie die Oberfläche mit einem feinen Schleifpapier an. Tragen Sie einen Haftvermittler auf, Erneut anschleifen und lackieren mit einem Acryllack in Wunschfarbe. Erneut anschleifen und den finalen Deckanstrich folgen lassen.
In outdoor areas, a chemical-based synthetic resin coating is the better choice because it is more resistant to weather influences.
An answer first: only a UV-resistant coating makes a PVC-U pipe a UV-resistant pipe.


LABS-Konformität

The PVC-U pipe itself is fully paintable with the appropriate plastic paint. Paint wetting impairment substances (LABS) are present both directly and indirectly. On the one hand, during the the production process, a release fluid can be used by the pipe manufacturer. the other hand, cutting dust and particles are produced during the cutting cutting process, which adhere to the pipe due to the static charge. adhere to the pipe. PVC-U pipes that are to be painted must be cleaned and sanded before painting.

PVC-U pipes and fittings are designed for cold water applications. However, they can also be used with restrictions for the transportation of hot water with reduced values up to approx. +45°C.
As inlet and drain pipe for heat pumps in pool technology they are used in compliance with the maximum temperature specifications. Please note, however, that constant use at the upper limit reduces the value of the pipe of the pipe more quickly.
Permanent, intensive sunlight causes the pipes to become brittle - a protective coating can help here.
If the pipes are exposed to sunlight (this is also the case when clouds form!), it is essential that they are circulated!

PVC-U pipes in gray are not UV-resistant! Under strong discoloration occurs under strong sunlight or UV light. After a longer period of time (several years), embrittlement can occur.

PVC-U pipes and PVC-U fittings in black offer increased UV stability thanks to additional stabilizers.

Yes and no, if you realise during the gluing process that you have made a mistake, it must be done quickly. remove incorrectly glued parts and immediately clean the glued areas and, if necessary, rework them afterwards with sandpaper, a knife or similar.
If the glue has already hardened or the cross-linking process has progressed too far during gluing, it can only be loosened using mechanical force. Heating is possible, but produces toxic vapours (chlorine gases) and there is a risk of deformation due to the heat.

PVC-U fittings can be glued to KG pipes (orange wastewater pipes, sewer base pipes), as these pipes are also made of rigid PVC (PVC-U). If your gutter downpipes are also made of PVC-U, bonding is also possible here without any problems. Pipes or fittings made of ABS can also be connected to PVC-U fittings. Bonding is not possible with other pipes, such as those made of PE or PP.
Black PVC-U pipes and fittings are usually used when heating of the flowing medium is desired, e.g. for pool pipework or a bypass to a solar heating system. pool pipework or a bypass to a solar heating system. The black pipe heats up faster and more strongly due to solar radiation and thus supports the heating of the pool water.

PVC-U pipes in grey are not UV-resistant! Under strong discolouration occurs under strong sunlight or UV light. After a longer period (several years), embrittlement may occur. can take place.

PVC-U pipes and PVC-U fittings in black offer increased UV stability thanks to additional stabilisers.
The black PVC-U pipes and fittings in black are manufactured according to our specifications and are UV-stabilised. You will find the certificate in all relevant article descriptions for downloading as a -pdf-file.

A protective coating is then advisable, if the pipes are laid in a position that is strongly exposed to the sun.

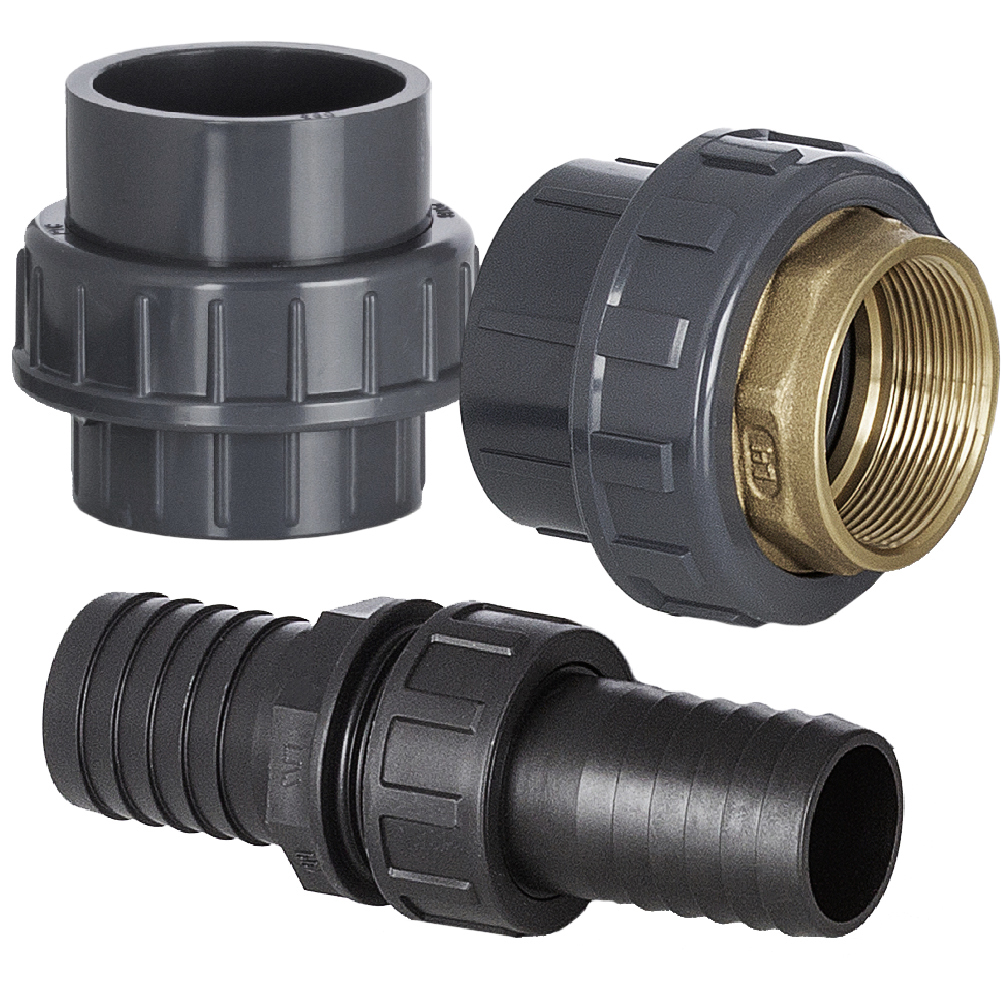

One of the most frequently asked questions from customers still seeking advice. PVC-U pipes and fittings can be used in combination with ozone, chlorine and salt water without any problems. The limitation lies elsewhere: seals in unions, additional units, etc. Here it is essential to ensure that the seal is made of NBR, EPDM or higher quality. Maintain seals regularly, as incrustations can form on the seals due to adhering salts.
Up to a dimension of 20mm, PVC-U pipes can still be bent to a certain bend without tools.
However, there is a fine line between bending and folding!
Parts of a pipe can be bent with hot air - whether it works is another matter.

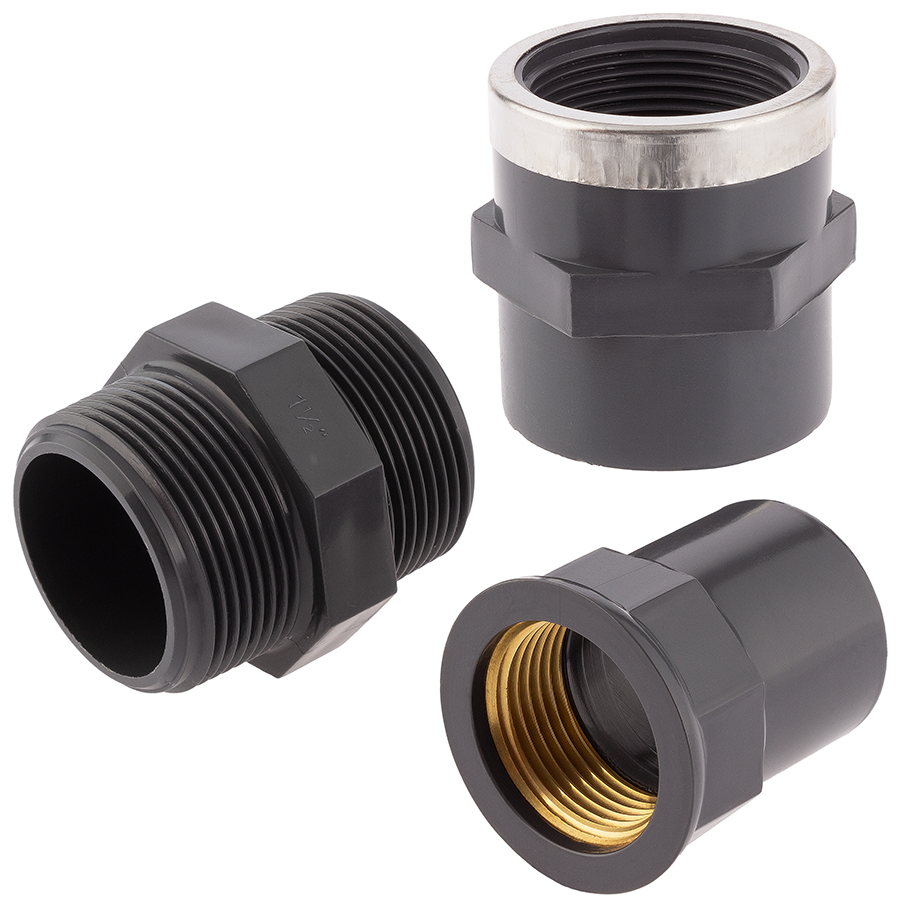

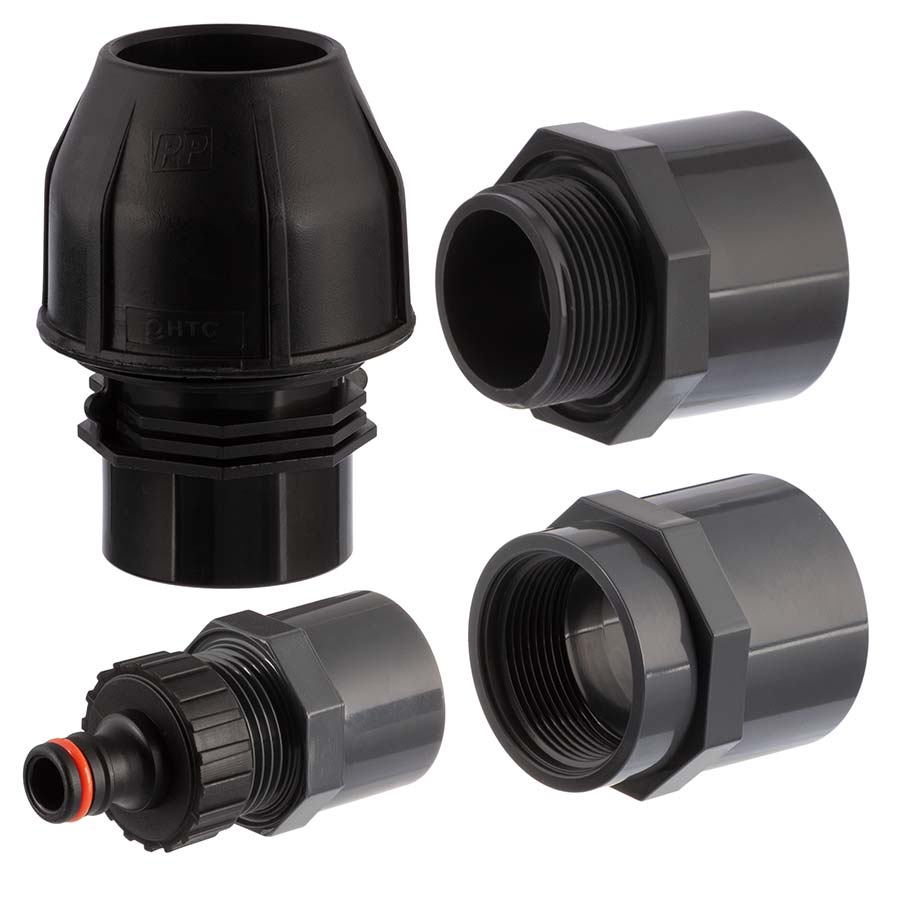

The most common thread type in the sanitary industry is the BSP G thread (Whitworth pipe thread). This means that all PVC-U threaded fittings are theoretically compatible with threaded fittings made of other materials such as brass, stainless steel or polypropylene (PP). Threads of this type are not self-sealing and require a suitable thread sealing material such as Teflon tape.

For clarity: Why 1" is not 25.4 mm

Teflon tape, sealing cord, hemp and sealing paste: Gewindedichtmaterial

Do not use swelling sealing material: Sealing and connecting plastic threads

Here is a very good explanation video on YouTube from TheSerpentKing:

DN (French: Diamètre Nominal) – also known as nominal diameter – refers to the internal diameter of a pipe or the nominal passage of a fitting. For example, a pipe with an outer diameter of 50 mm and a wall thickness of 2.4 mm has an actual DN (internal diameter) of 45.2 mm.

DN – Nominal Diameter on Wikipedia

Still more confused after reading the link?

That’s why we refer to the **outer diameter** when talking about pipes and to the **inner diameter** when referring to fittings. That means: if you have a pipe with an outer diameter of 50 mm (male stub), you need a 50 mm socket (female) to connect them. The wall thickness of the pipe is irrelevant here, as with PVC-U pipes the wall thickness only reduces the internal diameter, while the outer diameter remains the same.

The NSF certification is recognized internationally and ensures that the specified products can be safely used in areas such as food processing or water treatment.

NSF Logo

High-quality premium fittings and pipes made of plasticizer-free polyvinyl chloride – PVC-U – stabilized with tin for UV protection, suitable for your project or industrial applications.

To ensure safety during installation, our PVC-U product range complies with all relevant ISO and DIN standards. Due to its universal usability combined with excellent chemical and corrosion resistance, it offers numerous application areas: pressure pipes for irrigation systems, drinking water, marine, chemical and textile industries, as well as vacuum lines.


PVC-U Pressure-Temperature Behavior


PVC-U pressure-temperature behavior

Applications of PVC-U

PVC-U fittings and pipes can be used wherever liquids need to be transported. They are used in the following areas, among others:

  • Pond construction
  • Pool and swimming pool construction (chlorinated and saltwater)
  • Aquaristics (freshwater and marine)
  • Sanitary installations
  • Industrial systems
  • Wastewater systems
  • Pressure lines for irrigation systems
  • Biogas plants

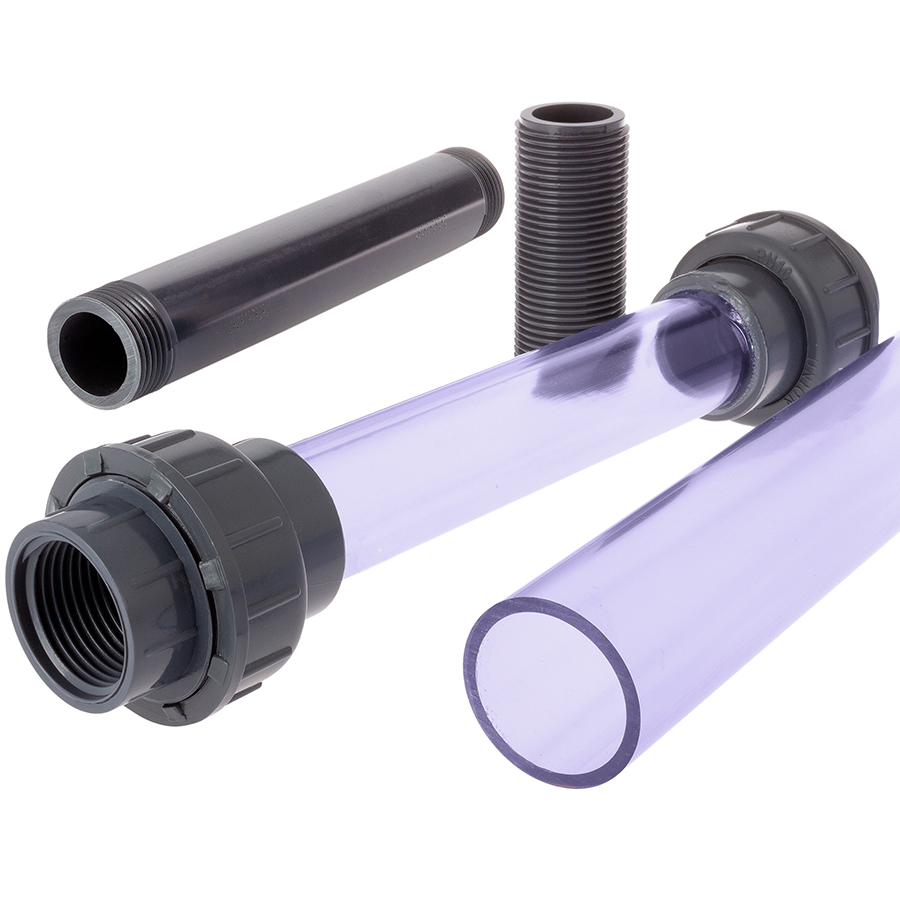

  • Transparent PVC-U pipes for visual inspection sections or for use in laboratories, as well as in the food and pharmaceutical industries
  • Extraction systems with low pressure loads – not suitable for compressed air piping

Suitability for Drinking Water

Plasticizer-free rigid PVC (PVC-U) is generally suitable for drinking water supply – cold water only. PVC-U has been used successfully in this field for over 60 years and is one of the oldest plastics in general. In terms of mechanical properties and long-term performance, PVC-U is well-documented compared to "modern" plastics. Rigid PVC (PVC-U, U = unplasticized) contains no plasticizers and is considered toxicologically and ecotoxicologically safe. Due to its high chlorine content, PVC is inherently flame-retardant. According to DIN 4102, PVC-U products are classified as flame-retardant.


UV Resistance

To ensure UV stabilization, PVC-U pipes and fittings are supplemented with metal stabilizers (tin). This also gives the PVC-U products their typical gray color. These stabilizers are more reactive and decompose before the carbon compounds in the PVC itself. UV radiation accelerates this effect. PVC-U pipes installed outdoors should not be exposed to direct sunlight. Under UV exposure, the pipe may discolor. Over time (several years), the material can become brittle and the pressure resistance may decrease. In our climate zones, this phenomenon is relatively rare. For added safety, a UV-protective coating can be applied to PVC-U pipes in outdoor installations.



Advantages of PVC-U Pipes and Fittings

PVC-U plastic pipes are characterized by high durability (up to 100 years), resistance to weather, chemicals, and corrosion, as well as excellent robustness. Additionally, due to their low weight, they are easier to transport and handle compared to metal pipes.

These advantages make them suitable for both indoor and outdoor use.


Dimensions | Wall Thicknesses

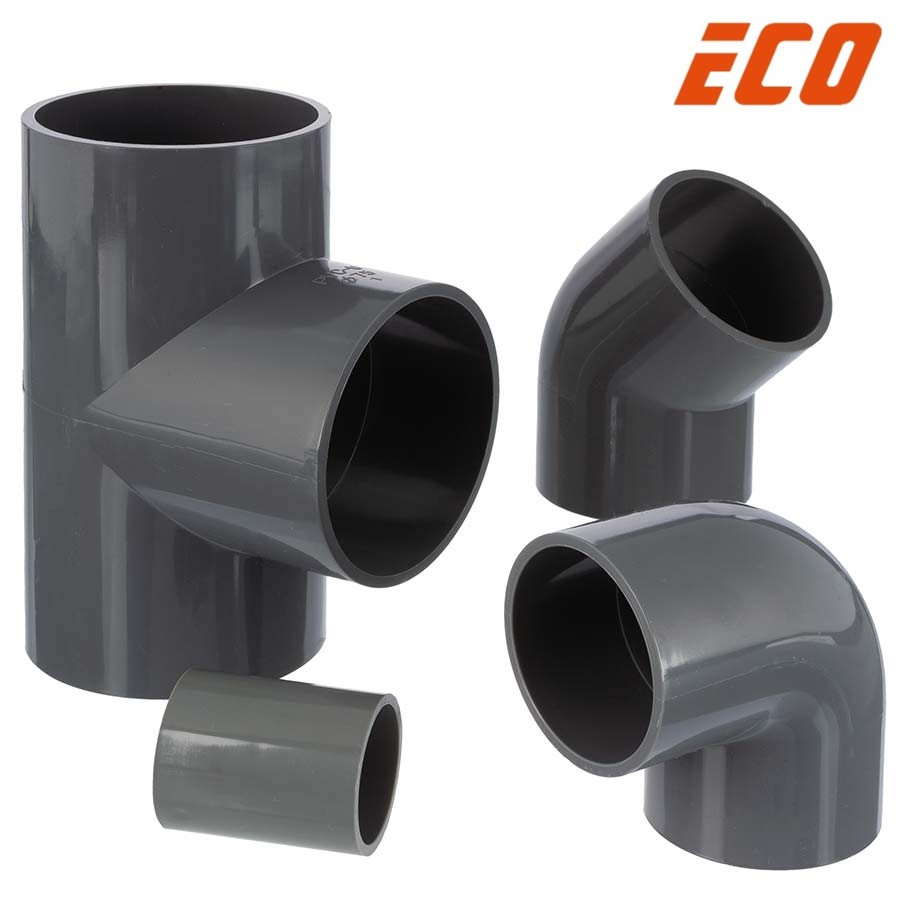

We offer many pipe dimensions in a unique range of up to three pressure classes or wall thicknesses. Fittings are available in our ECO version as well as in the industrial-grade version. This extensive selection ensures that you will find the right fitting and pipe dimension for your project.
We offer 5 m pipe lengths with integrated solvent weld socket at attractive freight shipping rates. Delivery is fast and reliable. If you are a private customer or have no fixed delivery times, the carrier will arrange a delivery appointment by phone. This service is, of course, free of charge.

  • Diameters from 12 mm to 200 mm
  • 1 m and 2 m lengths are shipped as parcels; longer pipes are shipped via freight carrier

Manufactured According to International Standards

PVC pressure pipes are durable and robust. The plastic does not degrade, meaning no material breakdown or microplastics are released. PVC-U pressure pipes can be bonded with any other PVC-U pipes. If your downpipe is made of PVC-U or if you want to combine with KG pipes (orange wastewater pipe), this is possible. Combinations with ABS plastic are also compatible.

A Wide Range of Application Possibilities

From aquarium plumbing, aquaristics, pond construction, and pool construction (ozone- and saltwater-resistant) to industrial swimming pool systems, wastewater management, biogas plants, and the chemical process industry – the range of possible applications for unplasticized rigid PVC pipes is extensive.
PVC-U pipes and fittings are resistant to many acids and alkalis and are suitable as cold water lines for fluid temperature ranges from 0 °C to +45 °C (temporarily up to +60 °C). As temperature increases, pressure resistance decreases. Around +60 °C, the molecular structure begins to soften. The melting point is around +80 °C.

  • High mechanical strength, rigidity, and hardness
  • Good electrical insulation properties
  • Excellent chemical resistance
  • Self-extinguishing properties
  • Good bondability and paintability
