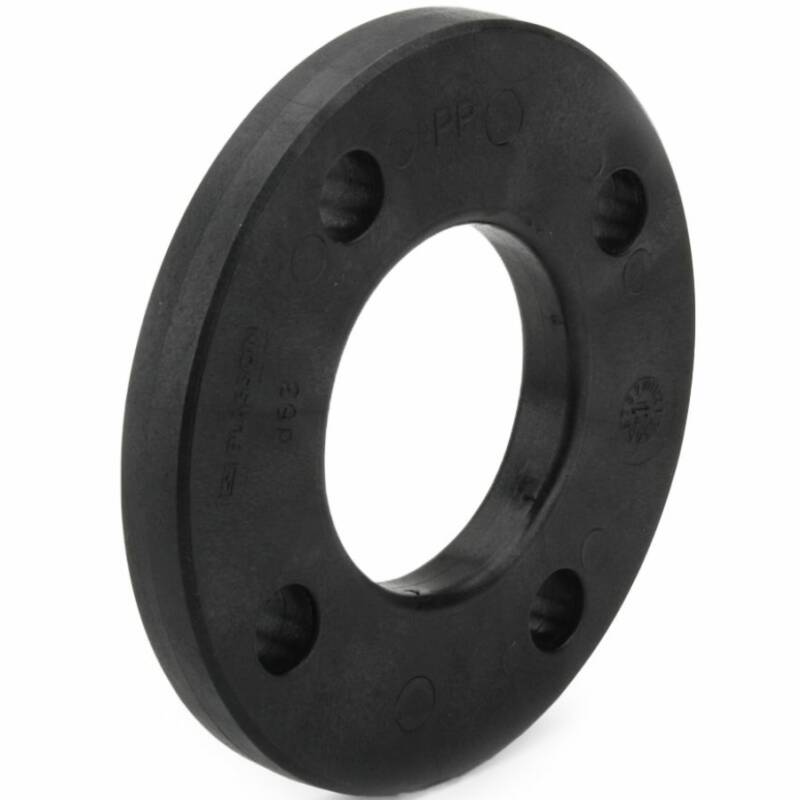

PP reinforced loose flange

SKU: APS702
Auswahl Steuerzone / Lieferland
from
56,11 €
incl. 19% VAT , plus shipping costs
  • Available immediately
View item details in PDF The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification."
How to measure a threaded fitting

Einsatzhinweis

Ein Losflansch dient zur Aufnahme einer Bundbuchse.

Artikelinfo

125mm Lochkreis 190mm kompatibel zu Blindflansch und Festflansch.
125mm Lochkreis 210mm für Absperrklappe 125/140mm - passend auch für Bundbuchse 125mm.
  • Available immediately
   Variants

Product picture
Item no.
Variation
A
B
D
d
E
n
Screw
Weight
Type
Price
Quantity
PP reinforced loose flange 110mm
APS702.000.110
110mm
218
180
18
18
128
8
1493
56,11 €*
pc:
PP reinforced loose flange 125mm LK190
APS702.190.125
125mm
218
180
18
18
135
8
1464
67,33 €*
pc:
PP reinforced loose flange 160mm
APS702.000.160
160mm
285
240
24
22
178
8
2840
72,71 €*
pc:
PP reinforced loose flange 200mm
APS702.000.200
200mm
340
295
24
22
235
8
3220
139,59 €*
pc:

incl. 19% VAT , plus shipping costs

All dimensions are shown in millimeters, all weights are shown in grams.
The images are provided for illustrative purposes only, they do not constitute a contractual element and refer to a single variant/size. Images, technical data, dimensions and drawings are not binding. We reserve the right to make changes at any time without notice. The dimensions are defined and shown more clearly in the item description. Other dimensions only serve as support and better clarification.

   Description

PP Polypropylen stahlverstärkt Aufsteckflansch Losflansch

Anschluss:
Bundbuchse mit Klebemuffe, in Verbindung mit Losflansch einzusetzen
Temperatur:
bis 60°C konstant, kurzzeitig 80°C
Arbeitsdruck (PN):
max. 16 bar bei 20°C Medium Wasser
Material:
PP Polypropylen
Farbe:
Schwarz
DOWNLOAD RoHS Bestätigung HTC


DOWNLOAD Kleben von PVC-U Rohren und -Fittings

DOWNLOAD die Gewindekennung - oder warum 1" eben keine 25,4mm sind

DOWNLOAD abdichten und verbinden von Kunststoffgewinden

DOWNLOAD chemische Beständigkeit von Kunststoffen

DOWNLOAD äußere Merkmale von Spritzgussfittings

DOWNLOAD Montageanleitung für Flanschverbindungen
