Description

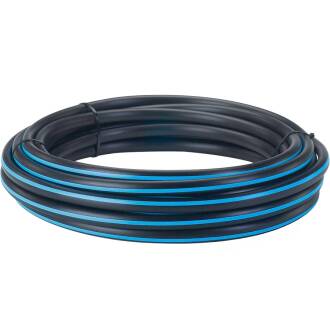

PE-HD 100 pressure pipes 20mm PN 16 bar
PE black pressure pipe with blue stripe for DVGW drinking water approval
A-Ø:
20mm
Wall thickness:
at least 2.0 mm
Temperature:
up to 60°C at reduced values
Working pressure:
PN 16 bar at 20°C, medium water
Material:
PE HD 100 polyethylene high density, SDR 11, DIN 8074/8075, EN 12201
Color:
PE pipes in black with blue stripes for DVGW drinking water approval
permissible bending radius:
0°C - 50x outer diameter
10°C - 35x outer diameter
20°C - 20x outer diameter
10°C - 35x outer diameter
20°C - 20x outer diameter
The information applies to water as a medium, based on DIN 8074/75
Area of application:
- High chemical resistance, resistant to alkalis, salt solutions and inorganic acids, resistant to alcohol, oil and petrol
- Corrosion resistant
- Resistant to UV rays
- Polyethylene pipes are physiologically and toxicologically harmless
- Frost-resistant due to high elasticity (installation in non-frost-proof surroundings or depths requires constant circulation or a drain at the lowest point)
- High abrasion resistance
Information: A PE pipe for drinking water or service water can also be used as a solar pipe for pool water heating within the indicated temperature range up to a maximum of 60°C at reduced valences. However, it is not suitable for hot water installations or for solar systems for heating service water
