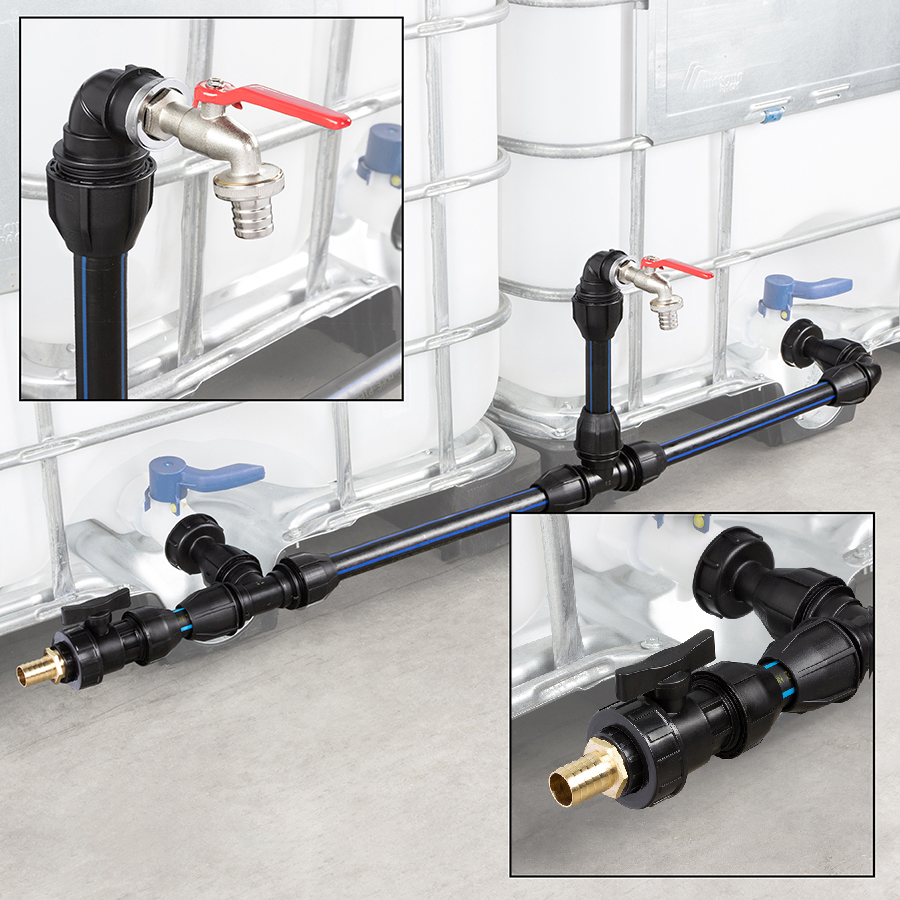

IBC container tank connection 32mm side by side

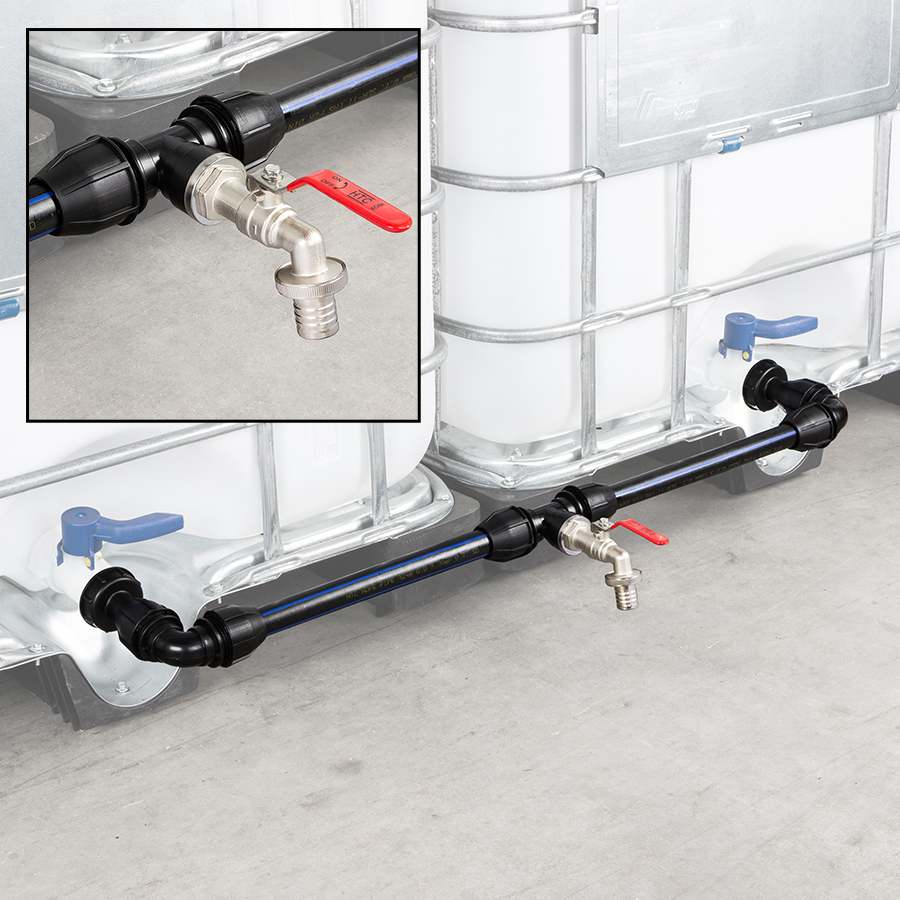

IBC container tank connections

In some cases, your IBC containers require a different configuration, so our connection sets may not be fully usable. For this purpose, a material list is provided for each system so that DIY builders and expanders can easily find the individual elements.

In all cases, we generally recommend a fixed piping with PE pipe and PP clamp fittings, so you get a durable, UV-stable, fixed piping that

IBC Container Tankverbindung -der Start

the start

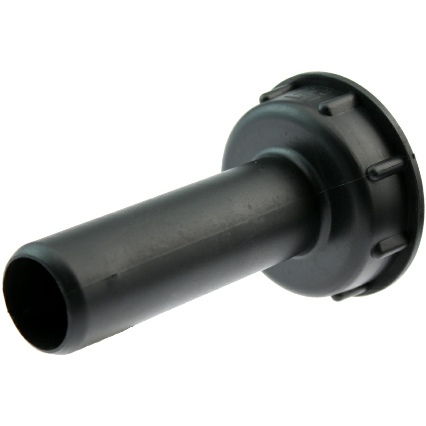

The IBC container connection S60*6 x 32mm or 50mm
is the starting point for all DIY projects. The connector offers you a decisive advantage that no other system has: the following connection, whether straight, angled or T-shaped, can always be precisely aligned to the position you want AND you don't have to seal any thread!


IBC Container Tankverbindung -der erste Verbinder Durchgangsmuffe

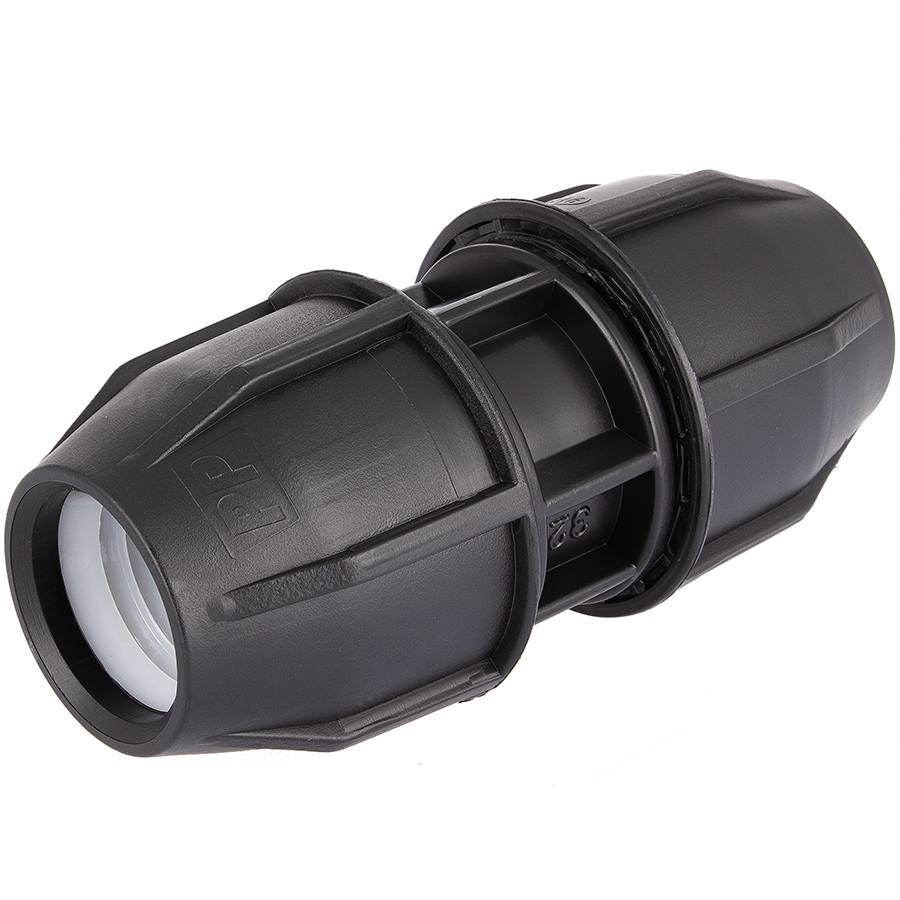

the first connector - straight connection

For a straight connection to the IBC container connection, use a2-way clamp coupler 32mm or 50mm


IBC Container Tankverbindung -der erste Verbinder Winkel

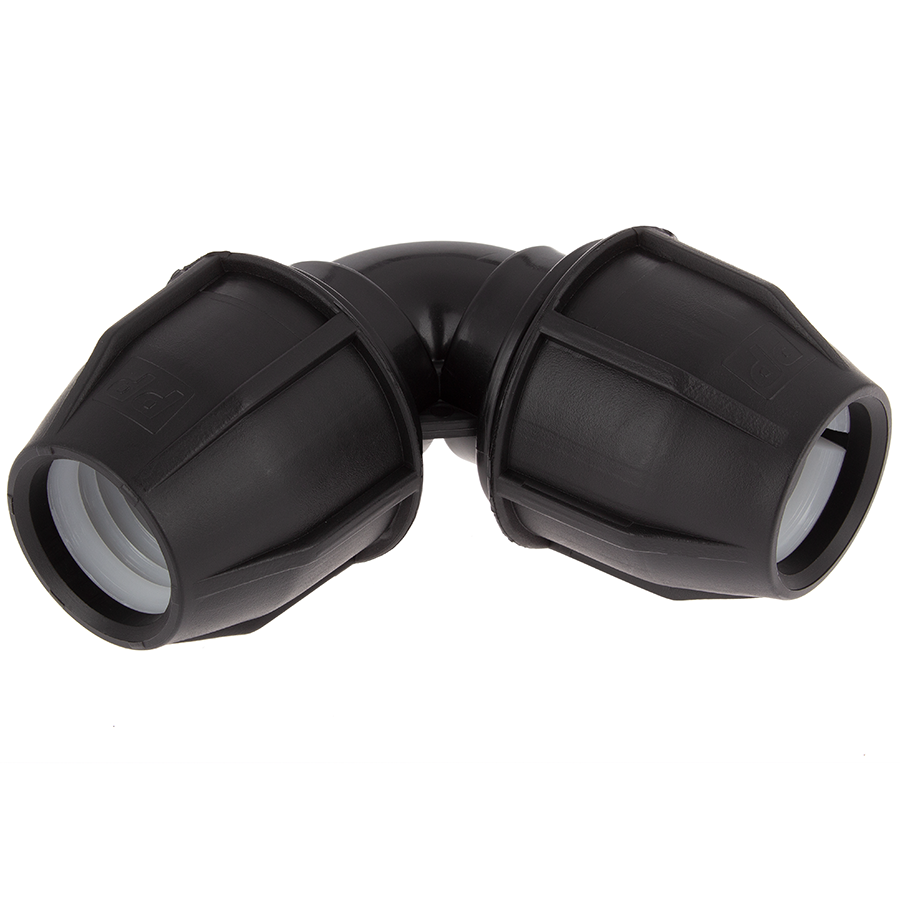

the first connector - angle connection

For a 90° angle directly after the IBC container connection, use anDouble clamp 32mm or 50mm


IBC Container Tankverbindung -der erste Verbinder T-Stück

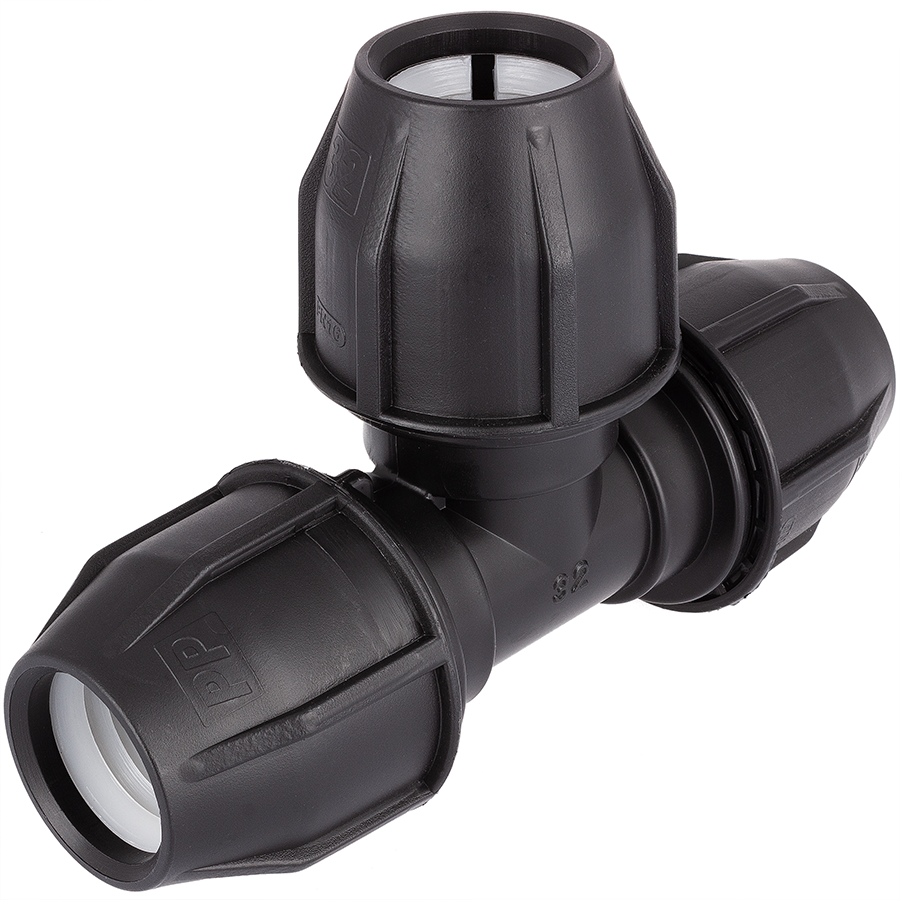

the first connector - T-piece connection

For distribution to both sides directly after the IBC container connection, use a3-way clamp 32mm or 50mm


IBC Container Tankverbindung - Anschlusserweiterung auf S100*8

Connection extension to S100*8

Your IBC container has an enlarged S100*8 connection instead of an S60*6 connection – then use theS100*8 x S60*6


IBC Container Tankverbindung - PE-Rohr

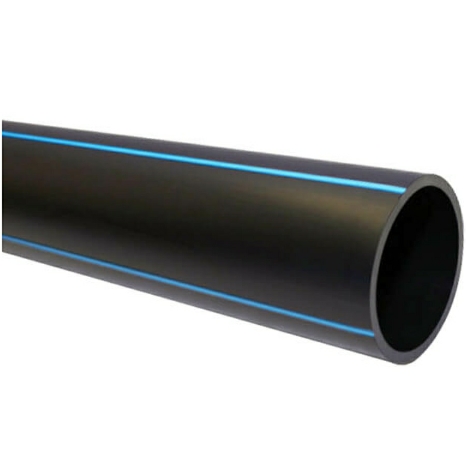

PE pipe - the pipe for IBC container tank connector construction

As a pipe, usePE-pipe in bars 32mm or 50mm

Use only PE pipe in bar form; you won't enjoy using pipe from a roll.
Use PE pipe and not PVC-U pipe. PE pipe is completely UV-stable and softer than PVC-U pipe, so the grip ring of the clamp connector has the necessary hold.



DOWNLOAD processing PP clamp fittings
DOWNLOAD the thread identification - or why 1" is not 25.4mm
DOWNLOAD PP Polypropylene temperature/pressure diagram
DOWNLOAD chemical resistance of plastics
