Description

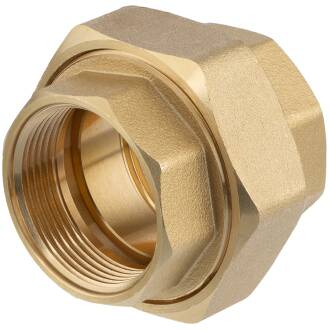

Brass screw connection, 2-way internal thread, conical seal
Connection:
2 female threads
Material:
Brass CW61N (can be used for drinking water pipes)
Thread:
BSP pipe thread ISO 228-1, not self-sealing, seal with Teflon tape or similar.
Temperature:
-20°C to 150°C
Working pressure (PN):
max. 16 bar at 20°C medium water
DOWNLOADRoHS confirmation HTC
DOWNLOADREACH addendum brass HTC
DOWNLOAD the thread identification - or why 1" is not 25.4mm
